Dinotec Yellow Dosing Station - Kit 2 - pH / Redox, 1 dosing pump (for use with a salt chlorinator)
The dosing and control station for pool water treatment is a reliable and highly efficient solution for comprehensive water care. This model is specifically designed for integration with a salt chlorinator (saline electrolysis unit), ensuring precise measurement and automatic regulation of pH and redox potential (Redox). The control unit is equipped with a 5" capacitive touchscreen with intuitive operation, allowing quick setup and clear monitoring of operating status. Thanks to automatic control mode and the option to set time programs, it ensures stable operation with minimal user intervention, while allowing different dosing outputs (flow rates) of the dosing pumps to be defined for individual time intervals. The station supports remote access via the dinoConnect platform (web and mobile apps), enabling efficient device management, diagnostics, and remote service interventions. For users looking for a technically advanced, high-performance, and future-ready dosing system for pool water with a high level of integration, it represents a reliable solution with clear management and efficient operation.
Dinotec Yellow is a modern system for automatic dosing and control of pool technology. It offers precise dosing of pH and disinfectant using integrated peristaltic pumps, intuitive operation via a 5" touchscreen, and remote access through WiFi, a web interface, and a mobile app. The system enables control of filtration, heating, and pool lighting, water flow monitoring, calibration archiving, and measurement history display. It supports integration into Smart Home systems via KNX and MQTT and offers advanced features such as frost protection, vacation mode, remote updates, and AI assistance for operation and service.
Advantages
- Touchscreen display
- Integrated dosing pump for pH and chlorine
- pH and Redox measurement (BNC probe connection)
- RFID quick user login (chip, card)
- Remote access via dinoConnect (web + app)
- Filtration pump control
- AI assistant (setup guide, explanations, protections, and more)
dinoConnect App
The dinoConnect app is a modern tool that allows you to keep your system under control at all times and from anywhere. Thanks to the remote access function, you can conveniently monitor and control connected devices directly from your smartphone or tablet, whether you are at home, at work, or on the go.
App download links:
Package Contents
- Set 2 pH, Rx, 1 dosing pump

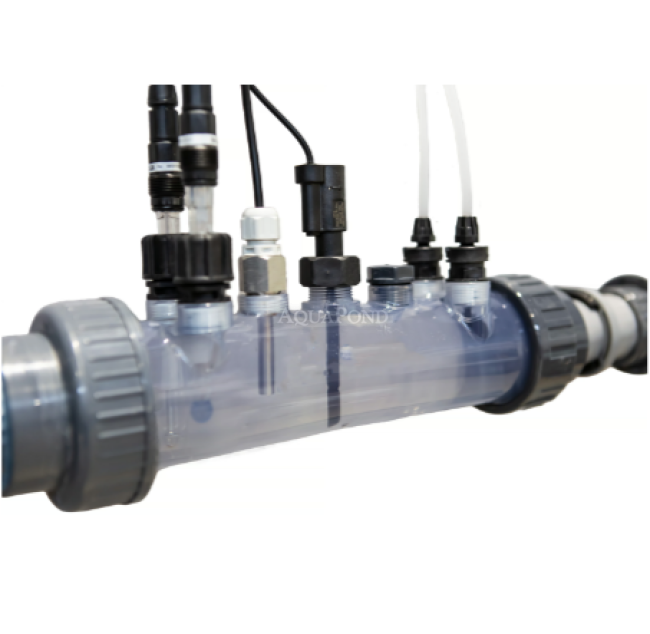

- pH electrode, Rx electrode, 2x electrode holder 1/2"
- Paddle flow switch
- 2x injection valve 1/2"
- 2x suction set (without empty container signalization)
- Prepared mains power cable for filtration pump
- 4x drilling saddle clamp 1/2"
- 1x drilling saddle clamp 3/4"
Technical Parameters
- Dimensions (h x w x d): 34 x 26 x 12.5 cm

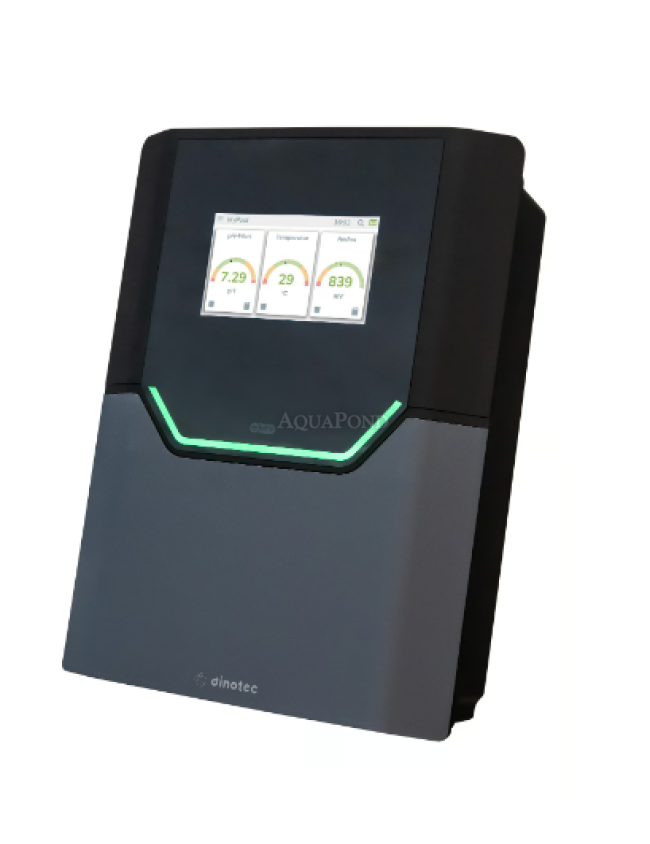

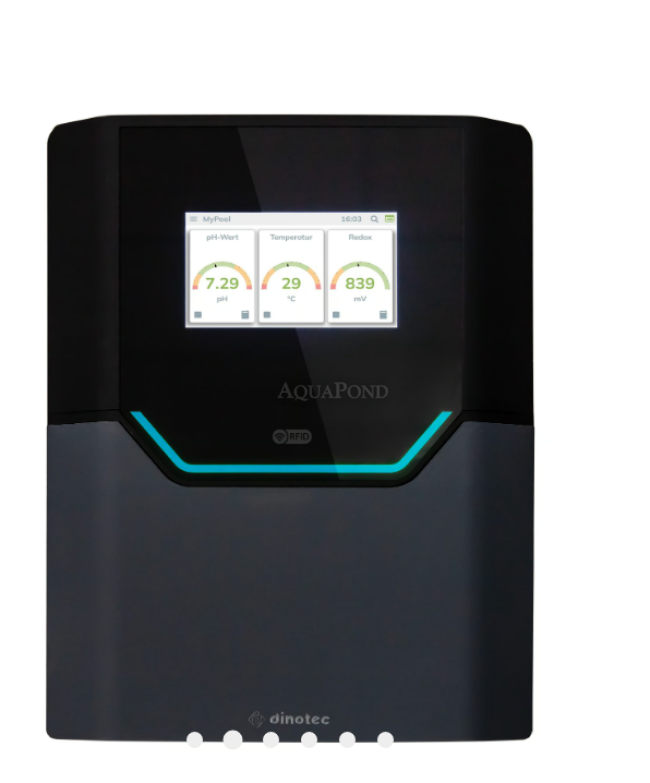

- Control: Via 5″ color touchscreen panel
- Mains voltage: 230 V, 50 Hz
- Power consumption: max. 35 W

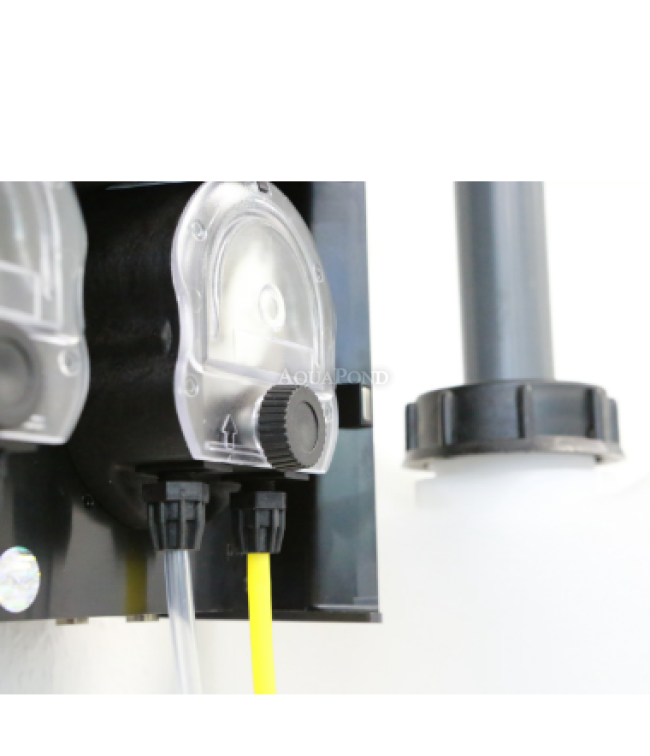

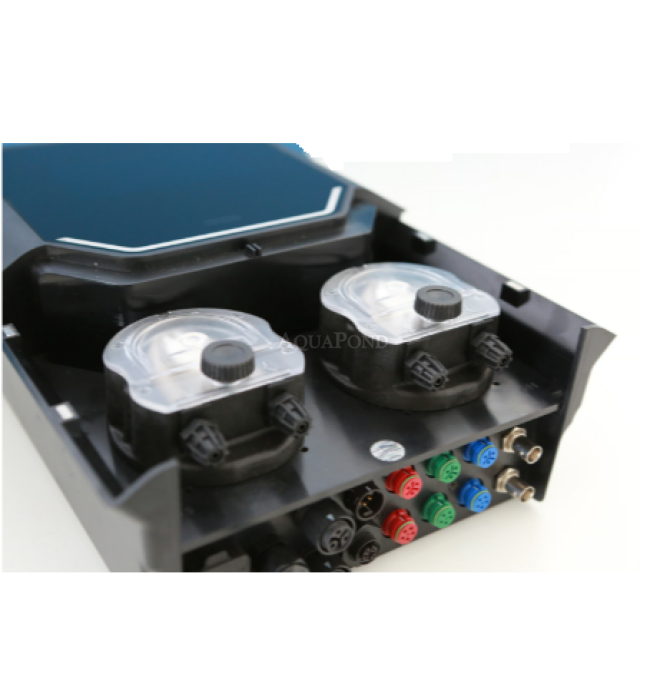

- Integrated peristaltic dosing pumps: 230 V, 50 Hz, flow rate 5 l/h
- Max. power of filtration circulation pump: up to 1.5 kW
- Switching relay (red, green, blue): Potential-free contact (not suitable for 230 V)
- Protection for filtration circulation pump: 16 A
- Lighting protection: 8 A
- Switching relay: 100 mA / 30 V (not suitable for 230 V AC)
- Operating conditions: 0° to +45 °C, non-condensing
- Storage temperature: 0 to 60 °C
- Protection class: IP 65
- Language: Multilingual
- Weight: 2.7 kg (yellow Poolcontrol with 2 dosing pumps)
Communication Interfaces
- Ethernet / RJ45
- WiFi
- RFID for dinoChip
- Modbus TCP
- KNX IP BAOS
- MQTT
- DMX / Art-Net
