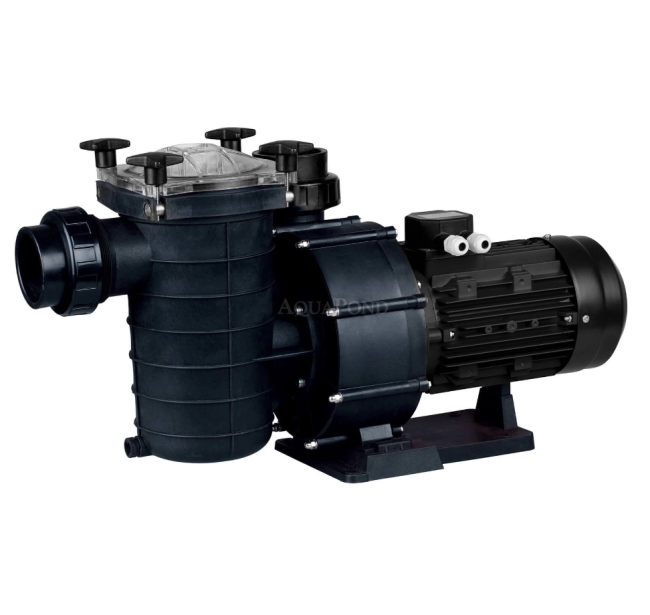

Aquafilt Pool Pump 80 m3 / h, 400 V, 4 kW


Aquafilt Pool Pump 80 m3 / h, 400 V, 4 kW

Description

Aquafilt pool pump is a powerful pool pump with a pre-filter, designed for filtration and circulation systems that require high water flow and reliable operation. Read more
Product code: 058380

  • Aquafilt Pool Pump 80 m3 / h, 400 V, 4 kW

    The Aquafilt pool pump is a powerful pool pump with a pre-filter, designed for filtration and circulation systems that require a high water flow rate and reliable operation. Thanks to its flow rate, it is suitable for larger pools, high-performance filtration systems, and other pool technologies where efficient circulation and sufficient pump output are required. The Aquafilt pump series has been designed with an emphasis on easy installation and practical use. Its compact design makes it possible to place the pump even in spaces with limited room, where larger pumping equipment cannot be used. The pre-filter is part of the pump design and serves to capture larger impurities before the water enters the hydraulic section. This helps protect the impeller and other internal pump components. The hydraulic section of the pump is made of durable Noryl GFN3 material, which is used for the pump housing, impeller, and diffuser. The AISI 316 stainless steel shaft provides high corrosion resistance and is also suitable for more demanding operating conditions in pool technology. The sealing system uses a silicone-ceramic sliding ring, which contributes to reliable separation of the hydraulic and motor sections. The pump is driven by a motor with a speed of 3,000 rpm, allowing for a high water flow rate. The motor has an IP55 protection rating, which provides protection against dust and water according to the specified ingress protection level. The single-phase version is equipped with motor thermal protection, which helps protect the motor from damage due to excessive heating. Aquafilt is suitable not only for private pools, but also for more demanding pool technologies and equipment intended for publicly accessible areas. High flow rate, robust construction, and quality materials make it a suitable solution for systems where stable water circulation and reliable operation are important. Thanks to the combination of high performance, an integrated pre-filter, and durable construction materials, Aquafilt is a practical solution for pool filtration systems that require a high volume of circulating water. The pump is intended for more professional use and is suitable where standard pool pumps with lower flow rates may not provide sufficient performance.

    Advantages

    • integrated pre-filter for capturing coarse dirt
    • compact design suitable even for confined spaces
    • suitable for larger pools and high-performance filtration systems
    • also suitable for use in publicly accessible areas
    • pump housing, impeller, and diffuser made of Noryl GFN3
    • AISI 316 stainless steel shaft
    • silicone-ceramic sliding ring
    • IP55 motor protection rating
    • thermal protection in the single-phase version
    • suction and discharge connection Ø75 mm

    Package Contents

    • Aquafilt 65 pool pump
    • integrated pre-filter
    • filter basket
    • manual

    Technical Parameters

    • Model: FILT-5.5
    • Motor power: 5.5 HP / 4 kW
    • Supply voltage: 400 V
    • Rated current: 8.3 A
    • Input power P1: 4.7 kW
    • Frequency: 50 Hz
    • Motor speed: 3,000 rpm
    • Protection rating: IP55
    • Flow rate: 80 m3 / h
    • Operating point: 80 m3 / h at H = 8 m
    • For pools up to: 240 m3
    • Pump housing material: Noryl GFN3
    • Impeller material: Noryl GFN3
    • Diffuser material: Noryl GFN3
    • Shaft: AISI 316 stainless steel
    • Sliding ring: silicone – ceramic
    • Thermal protection: yes, in the single-phase version
    • Weight: 20 kg

    Pump Performance Curve

    • 20 m3 / h → H = 15.7 m
    • 30 m3 / h → H = 14 m
    • 40 m3 / h → H = 12.5 m
    • 50 m3 / h → H = 10.5 m
    • 60 m3 / h → H = 8.5 m
    • 70 m3 / h → H = 6.5 m
