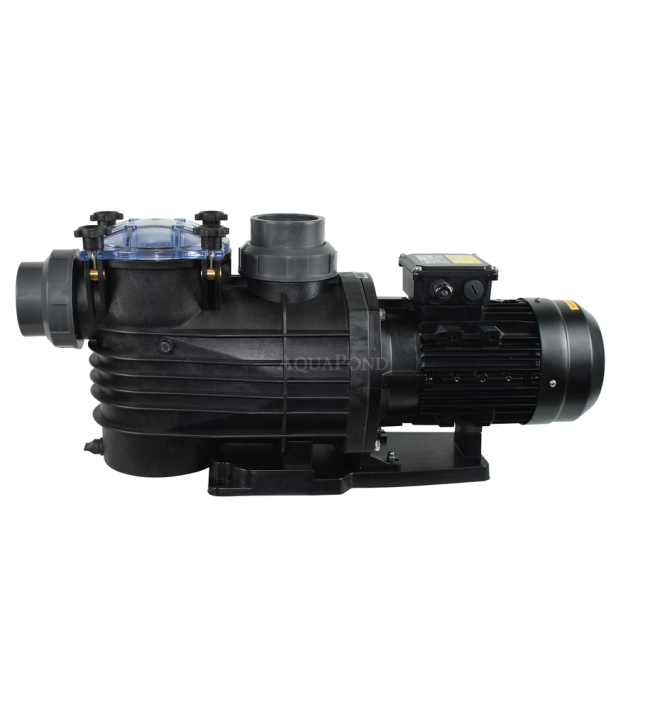

Pool pump PSH Maxi 20M, 44.7 m3/h, 230 V, 1.5 kW
Pool pump PSH Maxi 20M, 44.7 m3/h, 230 V, 1.5 kW
Description
The PSH Maxi 20M pool pump is a powerful single-phase centrifugal pump designed for water circulation and filtration in medium and large swimming pools, wellness facilities, and hot tubs. Read more-
Pool Pump PSH Maxi 20M, 44.7 m3 / h, 230 V, 1.5 kW
The PSH Maxi 20M pool pump is a powerful single-phase centrifugal pump designed for water circulation and filtration in medium and large swimming pools, wellness facilities, and hot tubs. Thanks to its performance, it delivers high capacity and a stable flow rate even with more demanding filtration systems. The pump is designed for reliable long-term operation and is suitable for use in pool filtration circuits, water attractions, wellness facilities, or counter-current systems. Its construction allows use with both fresh and salt water, and the pump is also suitable for systems with a salt chlorinator. The materials used for the hydraulic section are corrosion-resistant and contribute to the unit’s long service life. The pump includes a large-capacity prefilter with a collection basket that captures coarse debris before the water enters the hydraulic section. The basket is equipped with a practical handle that makes removal and cleaning easier. The transparent prefilter lid allows for quick visual inspection of the amount of trapped debris without having to dismantle the pump. The PSH Maxi 20M is equipped with a self-priming function up to approximately 2 m, which makes it easier to use in various technical pool system configurations. The single-phase version features motor thermal protection, contributing to safer operation. The motor has a high-efficiency IE2 rating. Its robust design includes a pump housing made of fiberglass-reinforced polypropylene, an impeller and diffuser made of fiberglass-reinforced Noryl, a shaft made of AISI 316 stainless steel, and a high-quality mechanical seal. As a result, the pump is suitable for more demanding operation and long-term contact with pool water.
Benefits
- high pumping capacity
- suitable for water filtration and circulation
- designed for medium and large swimming pools
- suitable for wellness and spa facilities
- suitable for fresh and salt water
- suitable for systems with a salt chlorinator
- self-priming design up to approximately 2 m
- large-capacity integrated prefilter
- practical collection basket with handle
- transparent prefilter lid
- thermal protection in the single-phase version
- AISI 316 stainless steel shaft
- robust construction
- compatible and interchangeable with the Maxi.2 model
Package Contents
- PSH Maxi 20M pool pump
- integrated prefilter
- large-capacity collection basket
- transparent prefilter cover
Technical Specifications
- Power supply: 230 V
- Frequency: 50 Hz
- Phase: single-phase
- Power: 2 HP / 2 CV
- Rated power: 1.5 kW
- Motor: IE2
- Flow rate: 44.7 m3 / h
- For pools up to 180 m3
- Variable speed: no
- Max. self-priming height: approx. 2 m
- Suction connection: 2½" / Ø75 mm
- Discharge connection: 2½" / Ø75 mm
- Thermal protection: yes, single-phase version
- Pump housing: polypropylene + 30% glass fiber
- Impeller and diffuser: Noryl + 30% glass fiber
- Shaft: AISI 316 stainless steel
- Mechanical seal: carbon + resin / ceramic
- Prefilter cover: polycarbonate
- Prefilter basket: polypropylene + 5% glass fiber
- Weight: 19 kg
- Suitable for: fresh and salt water
-
