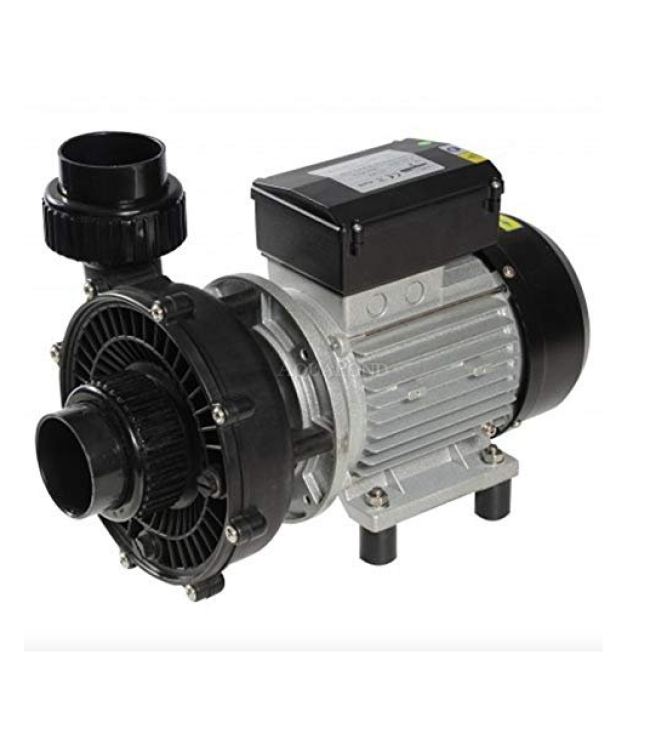

Centrifugal Pump PHT 2 V, 2-Speed, 43 m3 / h, 230 V, 0.35 / 2 kW


Centrifugal Pump PHT 2 V, 2-Speed, 43 m3 / h, 230 V, 0.35 / 2 kW

Description

PHT 2V is a two-speed centrifugal pool pump designed for the circulation and filtration of pool water. It is especially suitable for filtration systems where it is necessary to combine energy-efficient ... Read more
Product code: 600904

  • Centrifugal Pump PHT 2 V, 2-Speed, 43 m3 / h, 230 V, 0.35 / 2 kW

    PHT 2V is a two-speed centrifugal pool pump designed for circulating and filtering pool water. It is especially suitable for filtration systems where energy-efficient operation at lower output needs to be combined with high flow at increased circulation demand. Thanks to its two operating speeds, the pump allows performance to be adjusted to the specific situation and the way the pool system is used. At the lower R1 speed, it delivers a flow rate of up to 15 m3 / h with a power input of 350 W. This mode is ideal, for example, for standard water filtration when maximum pump output is not required. The lower power input also enables more economical operation compared to the high-speed mode. When switched to the second R2 speed, the pump can achieve a flow rate of up to 43 m3 / h with a power input of 2000 W. The higher output is suitable in situations where more intensive water circulation or a higher flow rate in the pool system is needed. PHT 2V is equipped with a motor featuring two speed levels that can be switched according to current requirements. This two-speed design provides greater flexibility than standard pumps with a single fixed operating mode. The user can select the lower speed for standard filtration and the higher speed when maximum flow is required. The pump is also designed with use in technical shafts and filtration blocks in mind, where ambient temperatures may be higher. A special motor design allows operation at ambient temperatures of up to 65 °C. This makes PHT 2V suitable even for more demanding conditions, such as poorly ventilated technical rooms or filtration shafts exposed to higher temperatures. Both the suction and discharge connections are designed for bonding in 63 mm pipe. This solution allows easy connection of the pump to a compatible pool filtration system. The robust construction and IP55 protection rating contribute to the pump’s suitability for long-term use in pool technology. PHT 2V is also a suitable choice when replacing an existing two-speed pump in a compatible filtration system. The pump is also used as a replacement for original pumps in some Desjoyaux filtration blocks. However, the compatibility designation is for informational purposes only and does not mean this is a Desjoyaux product.

    Advantages

    • Two-speed centrifugal pool pump
    • Ability to adjust performance to current filtration requirements
    • Suitable for standard filtration as well as intensive water circulation
    • Motor designed for operation at high ambient temperatures
    • Robust construction
    • Suitable for pool filtration systems
    • Can be used as a replacement for a compatible pump
    • Also suitable for technical shafts and filtration blocks with higher temperatures

    Package Contents

    • PHT 2V pool pump
    • connection fittings for Ø63 mm pipe
    • components for suction and discharge connection
    • user manual

    Technical Specifications

    • Pump type: Centrifugal pool pump
    • Power supply: 230 V
    • Number of speeds: 2
    • Max. operating temperature: 65 °C
    • Output R1: 15 m3 / h
    • Output R2: 43 m3 / h
    • Power input R1: 350 W
    • Power input R2: 2000 W
    • Power supply: 230 V
    • Suction: for bonding Ø63 mm pipe
    • Discharge: for bonding Ø63 mm pipe
    • Protection rating: IP55
    • Weight: 18.5 kg
