Pool pump Speck Badu Picco II / 5.5 m3/h, 230 V, 0.39 kW
Pool pump Speck Badu Picco II / 5.5 m3/h, 230 V, 0.39 kW
Description
Speck Badu Picco II / 5 is a compact and reliable single-stage pool pump designed primarily for circulating and filtering water in smaller pools and above-ground pools. Read more
-

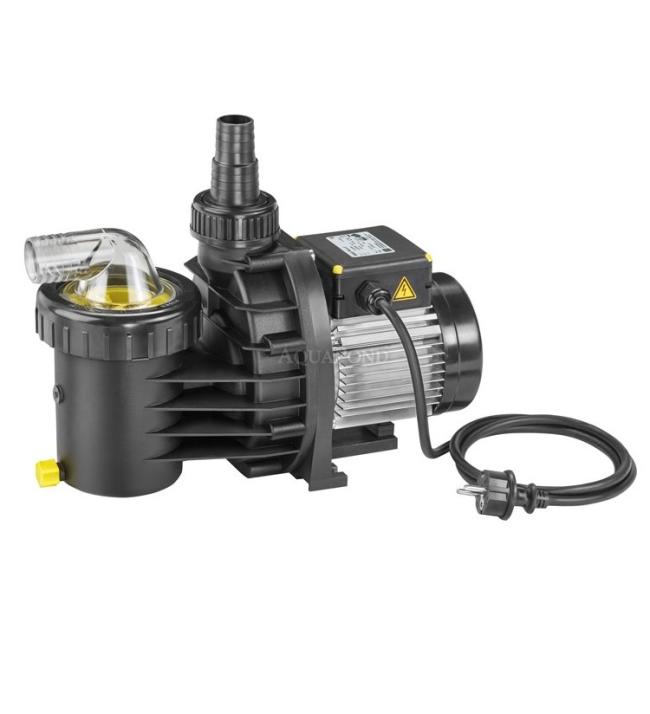

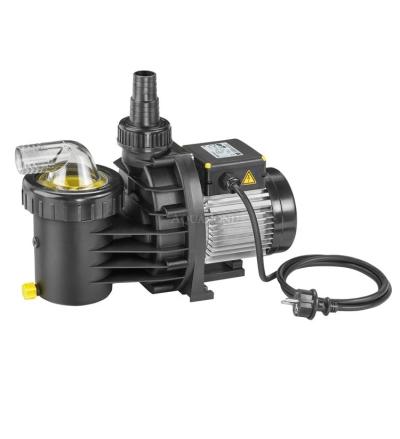

Speck Badu Picco II / 5 Pool Pump, 5 m3/h, 230 V, 0.39 kW
The Speck Badu Picco II / 5 is a compact and reliable single-stage pool pump designed primarily for water circulation and filtration in smaller pools and above-ground pools. Thanks to its compact design, easy installation, and dependable performance, it is a practical solution for home pool systems where efficient filtration, simple operation, and trouble-free performance throughout the swimming season are essential. The pump is equipped with an asynchronous single-phase motor with a P2 output of 0.20 kW and 230 V power supply. The pump design is engineered to ensure stable water circulation and reliable supply to the pool filtration system. The Badu Picco II / 5 is a self-priming pump, which makes it easier to start up the filtration system. Water intake is handled by a combination of a hermetically sealed suction chamber and an integrated prefilter with a filter basket. This captures larger debris such as leaves, grass, or other solid particles, while also helping protect the hydraulic section of the pump from damage. Efficient water circulation is provided by an impeller made of durable PA 66 GF 30/PC material. Its design allows it to generate the necessary pressure to move water through the filtration unit and back into the pool. An important part of the pump is also the mechanical bellows seal, which ensures separation between the pool water and the electric motor. This contributes to safe and long-term reliable operation of the entire unit. The pump housing is made of durable polypropylene and is designed for everyday use in pool technology. The electrical section has an IPX5 rating, and the motor is equipped with integrated thermal protection. In the event of excessive overheating, the motor is automatically disconnected, reducing the risk of damage. The pump connection is adapted to standard hose systems used with smaller pools. On the suction side, Ø38 mm connection can be used, while on the discharge side, Ø32 or Ø38 mm connection is possible. The pump is supplied with a power cable and plug, which makes installation and commissioning easier without the need for complex electrical wiring. Installation max. 1.5 m above or max. 3 m below water level.
Safety and Protection
- Integrated motor thermal protection - automatically cuts power to the motor in case of excessive overheating and helps prevent damage.
- IPX5 protection rating - electrical components and the motor are protected against water splashes from all directions.
- Mechanical bellows seal – reliably separates the hydraulic section from the electric motor and prevents water from reaching electrical components.
- Robust construction - durable materials are adapted to the operating conditions of pool technology.
- GS safety certification - the pump has been tested according to the relevant safety requirements of EN 60335-1.
- Maximum operating pressure 2.5 bar - allows safe operation within the specified technical parameters.
Thanks to the combination of thermal protection, electrical protection, and a reliable mechanical seal, the BADU Picco II / 5 is designed for safe and stable operation in pool filtration systems.
Package Contents
- Speck Badu Picco II / 5 Pool Pump
- Power cable with plug
- Connection adapters for Ø32 / Ø38 mm hoses
- Integrated prefilter basket
- User manual
Technical Specifications
- Power supply: 230 V / 50 Hz
- Maximum flow rate: 5 m3 / h
- Maximum head: 11 m
- Power input P1: 0.39 kW
- Output P2: 0.20 kW
- Rated current: 1.95 A
- Motor speed: approx. 2,840 rpm
- Suction side connection: Ø38 mm
- Discharge side connection: Ø32 mm or Ø38 mm
- Protection rating: IPX5
- Insulation class: F
- Maximum water temperature: 60 °C
- Maximum operating pressure: 2.5 bar
- Noise level: less than 70 dB(A)
- Housing material: polypropylene (PP)
- Impeller material: PA 66 GF 30/PC
- Seal type: mechanical bellows seal
- Suitable for salt water: yes, max. 0.5% NaCl
- Recommended pool volume: 5 - 25 m3
- Certification: GS, CE according to EN 60335-1
- Weight: 6.6 kg
-
