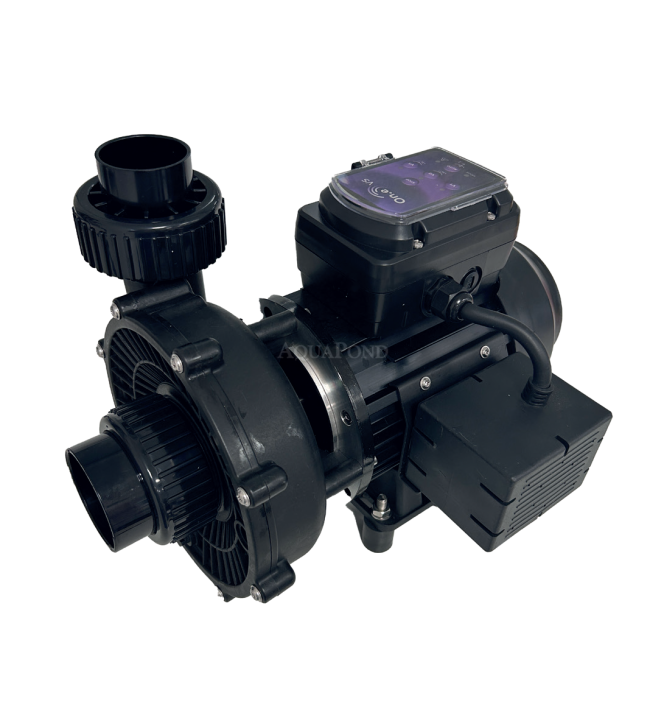

Centrifugal pump PHT-VS On.e, 7.5 - 22 m3 / h, 230 V / 1.1 kW


Centrifugal pump PHT-VS On.e, 7.5 - 22 m3 / h, 230 V / 1.1 kW

Description

PHT-VS On.e is a modern centrifugal pool pump designed for efficient circulation and filtration of pool water. Read more
Product code: 601900ONE

  • Centrifugal Pump PHT-VS On.e, 7.5 - 22 m3 / h, 230 V / 1.1 kW

    PHT-VS On.e is a modern centrifugal pool pump designed for efficient circulation and filtration of pool water. It is suitable for both private pools and more demanding pool installations where reliable and smooth operation is essential. The pump offers 3 programmable speeds, V1, V2 and V3, which can be adjusted to the current requirements of the pool system. The speed range is from 35% to 100%, allowing you to set the appropriate output as needed. Thanks to On.e technology, the pump can also be controlled via smartphone. The user can easily adjust operation, pump speed and time programs. The integrated keypad also allows convenient control directly on the pump. The pump supports advanced programming for fully automated daily operation. A skimming function is also available to support regular cleaning of the pool surface. The automatic air-bleeding and priming function makes commissioning easier. The start time of this function can be set according to the specific installation. PHT-VS On.e is equipped with a synchronous motor with protection against overcurrent, overvoltage and undervoltage. The pump design is made for long-term, reliable operation. The pump can also be used with external control via a dry contact. Thanks to its adjustable settings, it is suitable for various types of pool filtration systems.

    Benefits

    • Comfort and connectivity: Thanks to On.e technology, control all pump functions from your smartphone. Start, stop, speed selection, time programming... everything is at your fingertips.
    • Adjustable flow: 3 fully adjustable speeds for customized filtration.
    • Energy savings: synchronous motor with multiple safety protections (overcurrent, overvoltage, undervoltage), 3-year warranty.
    • Quiet: noise level of almost 40 dB for optimal comfort.
    • Smart control: integrated keypad.
    • Advanced programming: adjustable start (0 to 30 min), customizable time slots, skimming mode twice a day.
    • Flexible use: standalone, with control cable for external control (potential-free contacts).
    • Real-time display: instant power consumption (W) visible directly in the app.

    Control via the On.e App

    To download, search for On.e in the app store.

    • Users of Android: You can search for and download it via the Google Play Store.
    • Users of iOS can search for and download it via the App Store.

    Package Contents

    • PHT-VS On.e 1.1 kW pool pump
    • pipe fittings for Ø50 mm piping
    • pipe fittings for Ø63 mm piping
    • integrated control panel
    • power and control cable
    • user manual

    Technical Specifications

    • Voltage: 230 VAC
    • Frequency: 50 Hz
    • P1max (motor only): 1100 W
    • P1max (during circulation): 900 W
    • Imax (during circulation): 4.5 A
    • Number of programmable speeds: 3 (V1 / V2 / V3)
    • Speed range: 35% (1000 rpm) < 100% (2860 rpm)
    • Dry control contact: 230 V AC, max. / P1max 2 kW
    • Operating ambient temperature range: 0 °C to 50 °C
    • Permissible liquid temperature range: 5 °C to 50 °C
    • Power cable and control contact: 5G1 mm2 / 2.5 m
    • Saltwater compatibility: yes, up to 35 g/l
    • Maximum flow rate (0.6 bar) Vmax: 26 m3 / h
    • Maximum flow rate (0.8 bar) Vmax: 22 m3 / h
    • Maximum flow rate (1 bar) Vmax: 15 m3 / h
    • Maximum flow rate Vmax: 37 m³/h
    • Maximum head: 17 m
    • Connection: 50 mm
    • Insulation class: F
    • Duty type: S1
    • Protection rating: IP55
    • Weight: 10 kg
