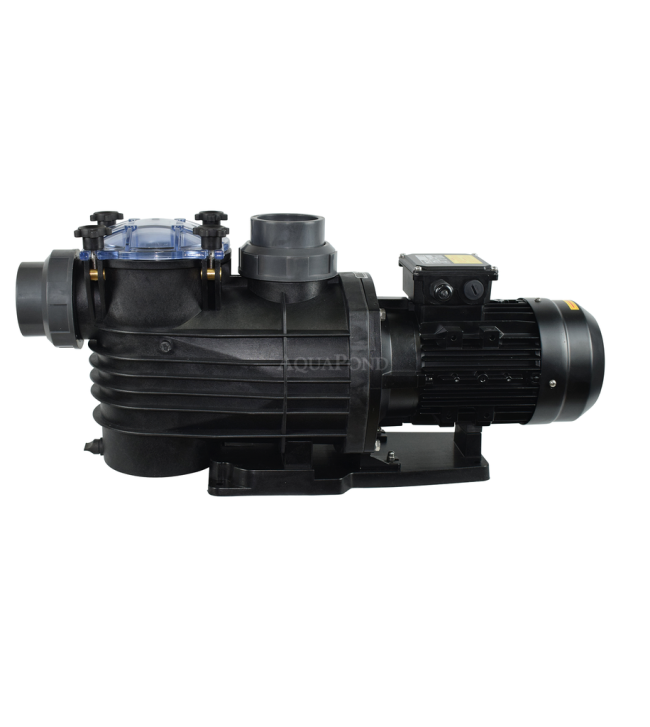

Pool Pump PSH Maxi 30T, 41 m3 / h, 400 V, 2.2 kW

The PSH Maxi 30T pool pump is a powerful three-phase centrifugal pump with an output of 3 HP, designed for water recirculation and filtration in medium and large swimming pools, wellness facilities, and whirlpools. Thanks to its high pumping capacity and performance, it is suitable for more demanding filtration systems, water attractions, wellness facilities, or pools equipped with a counter-current system. The pump is designed for reliable, long-term operation and is one of the more powerful models in the PSH Maxi series.
The PSH Maxi 30T is equipped with a high-efficiency IE2 motor, designed for efficient operation where water circulation is required in medium and large pools. The pump design allows use with both fresh and salt water. The PSH Maxi series is also suitable for pool systems with a salt chlorinator and for use with seawater. The materials used for the hydraulic section are corrosion-resistant and adapted for long-term contact with pool water. The pump includes a large-capacity integrated prefilter with a collection basket that captures leaves and larger debris before the water enters the hydraulic section of the pump. The basket has a practical handle that makes removal and cleaning easier. The transparent prefilter lid allows for easy visual inspection of the amount of trapped debris and simplifies regular pump maintenance. The PSH Maxi 30T offers self-priming capability up to approximately 2 m of water column, allowing more flexible placement of the pump in the pool technical room. The pump is equipped with a high-quality mechanical seal, which contributes to reliability and long service life during operation. Its robust construction includes a pump body made of polypropylene reinforced with 30% glass fiber, an impeller and diffuser made of Noryl reinforced with 30% glass fiber, a shaft made of AISI 316 stainless steel, a mechanical seal made of carbon, resin and ceramic, a transparent prefilter cover made of polycarbonate, and a collection basket made of polypropylene reinforced with 5% glass fiber. The PSH Maxi 30T pump has suction and discharge connections sized at 2½". The model is also fully compatible and interchangeable with the Maxi.2 model, making it easy to use when upgrading or replacing an existing pump in pool technology.

Advantages

• high flow rate and pumping capacity
• three-phase design
• suitable for pool water filtration and recirculation
• designed for medium and large pools
• suitable for wellness and spa facilities
• suitable for water attractions and counter-current systems
• suitable for both fresh and salt water
• suitable for systems with a salt chlorinator
• also suitable for use with seawater
• self-priming capability up to approximately 2 m
• large-capacity integrated prefilter
• practical collection basket with handle
• transparent prefilter lid
• high-efficiency IE2 motor
• AISI 316 stainless steel shaft
• robust construction
• corrosion-resistant hydraulic section
• compatible and interchangeable with the Maxi.2 model

Package Contents

• PSH Maxi 30T pool pump
• integrated large-capacity prefilter
• prefilter collection basket
• transparent prefilter cover

Technical Specifications Supply voltage: 400 V Power: 3 HP / 3 HP Rated power: 2.2 kW Phase: three-phase Motor: IE2 Variable speed: no Flow rate at 10 m head: 41 m³/h Max. self-priming height: approximately 2 m Suction connection: 2½" Discharge connection: 2½" Pump body: polypropylene + 30% glass fiber Impeller and diffuser: Noryl + 30% glass fiber Shaft: AISI 316 stainless steel Mechanical seal: carbon + resin / ceramic Prefilter cover: polycarbonate Prefilter basket: polypropylene + 5% glass fiber Weight: 20 kg Suitable for: fresh and salt water
