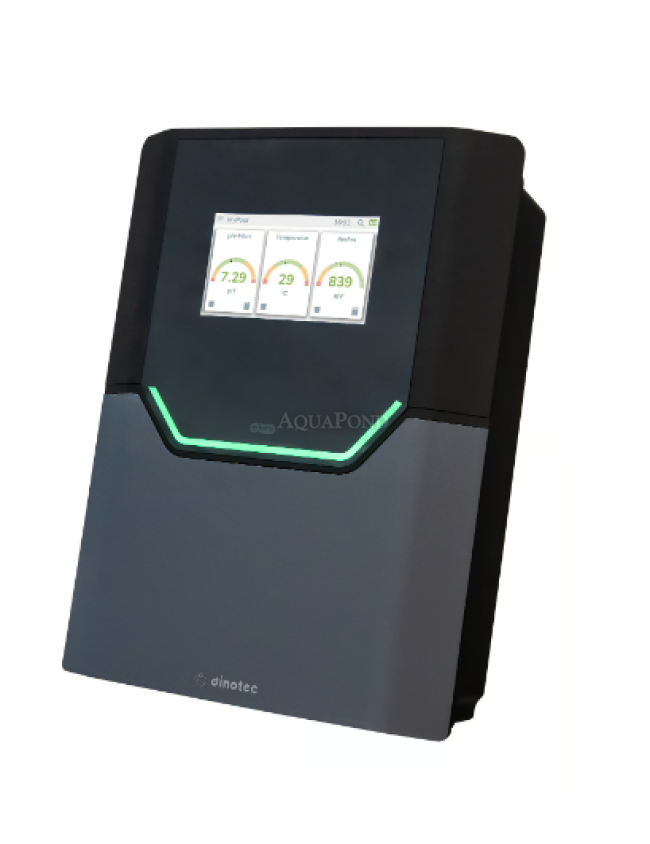

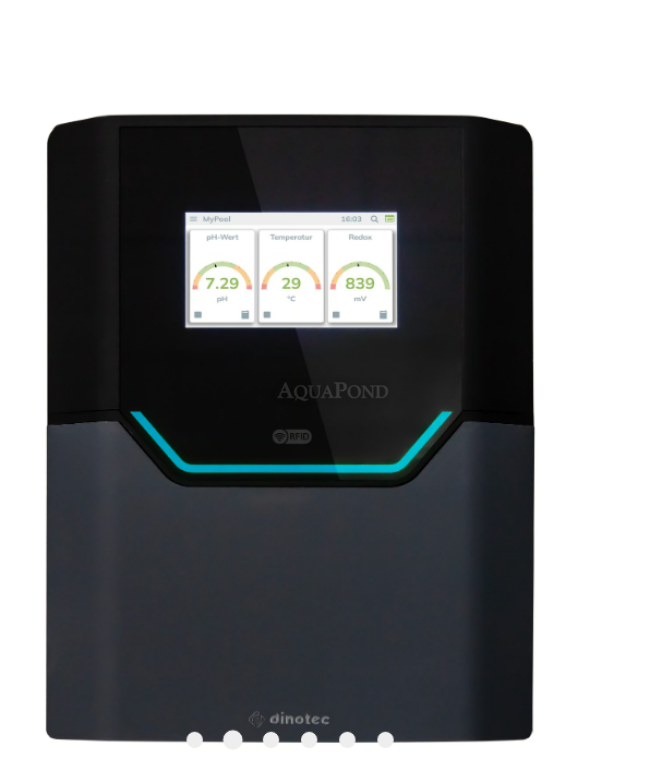

Dinotec Yellow Dosing Station - Kit 1 - pH / Redox, 2 Dosing Pumps
A dosing and control station for pool water treatment, designed for precise water quality control in both private and commercial installations. The unit ensures measurement and regulation of pH and Redox potential, with the option to operate with active oxygen or with direct free chlorine measurement, and is equipped with integrated dosing pumps. The control unit features a 5" capacitive touchscreen with intuitive operation, enabling quick configuration and clear monitoring of operating states. Thanks to automatic control mode and the ability to set time programs, it ensures stable operation with minimal user intervention, while allowing different dosing outputs (flow rates) of the dosing pumps to be defined for individual time intervals. The station supports remote access via the dinoConnect platform (web and mobile apps), enabling efficient device management, diagnostics, and remote service interventions. For users looking for a technically advanced, powerful, and future-oriented dosing system for pool water with a high level of integration, it represents a reliable solution with clear management and efficient operation.
Dinotec Yellow is a modern system for automatic dosing and control of pool technology. It offers precise dosing of pH and disinfectant using integrated peristaltic pumps, intuitive operation via a 5" touchscreen, and remote access through WiFi, a web interface, and a mobile app. The system enables control of filtration, heating, and pool lighting, water flow monitoring, calibration archiving, and display of measurement history. It supports integration into Smart Home systems via KNX and MQTT and offers advanced features such as frost protection, holiday mode, remote updates, and AI support for operation and service.
Benefits
- Touchscreen display

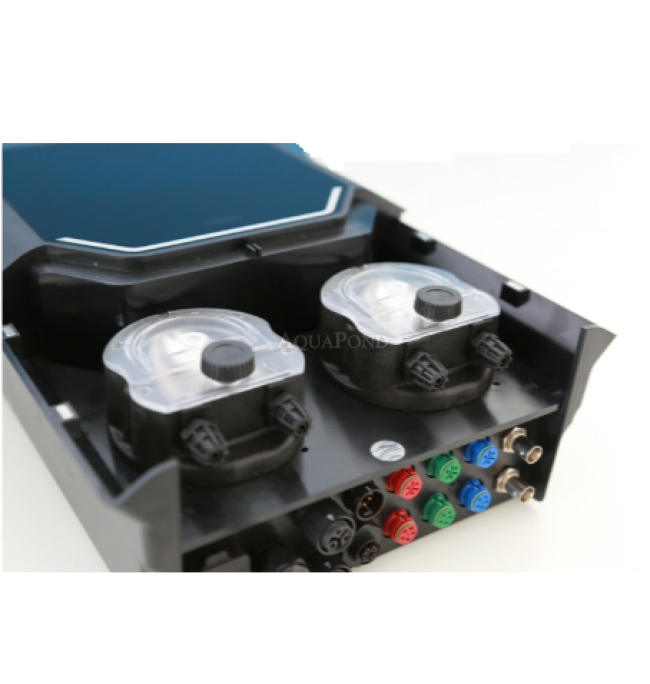

- Integrated dosing pump for pH and chlorine/active oxygen
- pH and Redox measurement (BNC probe connection)
- RFID quick user login (chip, card)
- Remote access via dinoConnect (web + app)
- Filtration pump control
- AI assistant (setup guide, explanations, protections, and more)
dinoConnect App
The dinoConnect app is a modern tool that lets you keep your system under control at all times and from anywhere. Thanks to the remote access feature, you can conveniently monitor and control connected devices directly from your smartphone or tablet, whether you are at home, at work, or on the go.
App download links:
Package Contents
- Set 1 pH, Rx with 2 dosing pumps

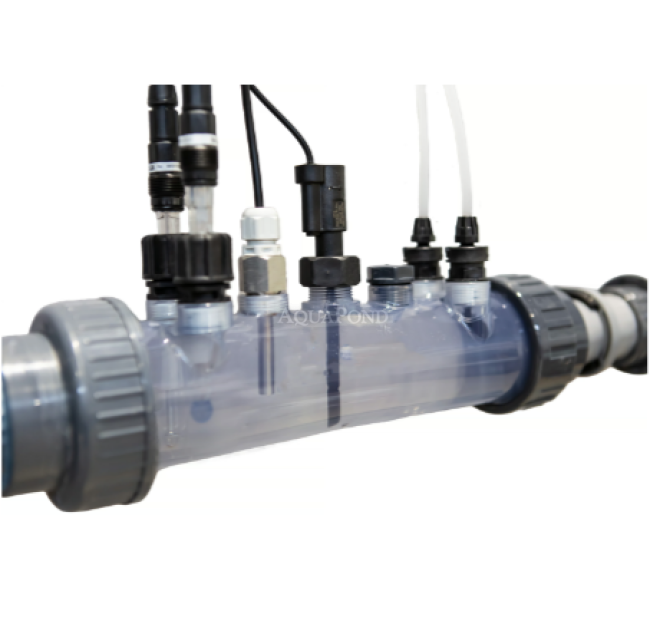

- pH electrode, Rx electrode, 2× 1/2" electrode holder
- Paddle flow switch
- 2x 1/2" injection valve
- 2x suction set (without empty-container signal)
- Prepared mains power cable for filtration pump
- 4x 1/2" saddle clamp
- 1x 3/4" saddle clamp
Technical Parameters
- Dimensions (h x w x d): 34 x 26 x 12.5 cm
- Control: Via 5″ color touchscreen panel
- Mains voltage: 230 V, 50 Hz
- Power consumption: max. 35 W

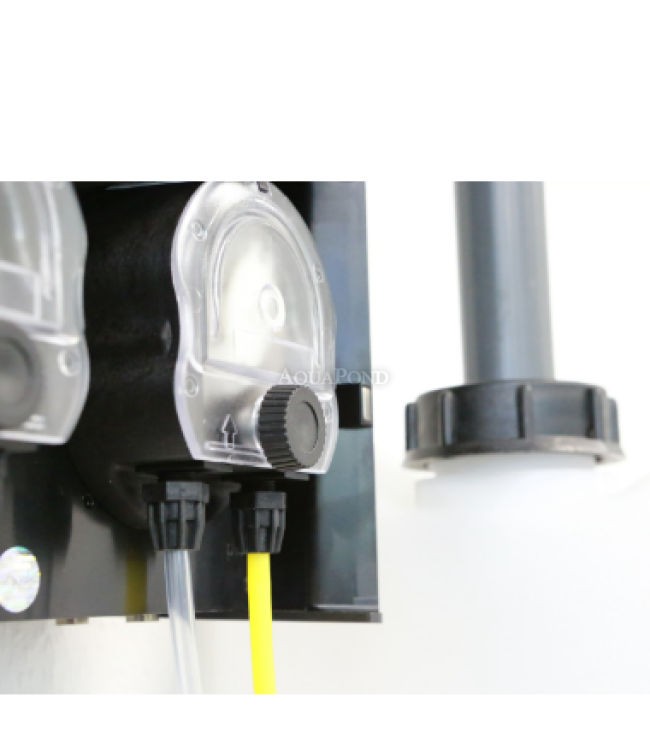

- Integrated peristaltic dosing pumps: 230 V, 50 Hz, flow rate 5 l/h
- Max. output of filtration circulation pump: up to 1.5 kW
- Switching relays (red, green, blue): Potential-free contact (not suitable for 230 V)
- Protection for filtration circulation pump: 16 A
- Lighting protection: 8 A
- Switching relay: 100 mA / 30 V (not suitable for 230 V AC)
- Operating conditions: 0° to +45 °C, non-condensing
- Storage temperature: 0 to 60 °C
- Protection class: IP 65
- Language: Multilingual
- Weight: 2.7 kg (yellow Poolcontrol with 2 dosing pumps)
Communication Interfaces
- Ethernet / RJ45
- WiFi
- RFID for dinoChip
- Modbus TCP
- KNX IP BAOS
- MQTT
- DMX / Art-Net
