Aseko Asin Aqua Home Pro CLF Dosing Station
Aseko Asin Aqua Home Pro CLF Dosing Station
Description
ASIN Aqua HOME Pro CLF is a dosing and control unit designed for treating pool water using chlorine disinfection. Read more
Product code: AK134501
-
Aseko Dosing Station Asin Aqua Home Pro CLF
ASIN Aqua HOME Pro CLF is a dosing and control unit designed for pool water treatment using chlorine disinfection. The system uses a CLF probe for precise measurement of free chlorine and a pH probe for accurate pH regulation. Stable water parameters are ensured by integrated peristaltic pumps controlled by an advanced dosing algorithm with safety functions. The unit is equipped with Pool Technology Management functions, enabling a high level of automation for pool technology.
Pool Water Treatment
- Disinfection control using a CLF probe and an advanced dosing algorithm
- Automatic pH regulation using a pH probe
- Time-controlled algicide dosing
- Continuous slow dosing of flocculant (FLOC+C)
Pool Technology Control
- Control of a variable-speed circulation pump
- Intelligent water heating control
- Automatic filter backwash
- Automatic switching of water intake (overflow / bottom drain)
- Precise water level measurement using a pressure sensor and automatic water top-up
- Detection of pool cover position and movement
- Advanced integrated safety functions
- Winter mode for water maintenance during the colder months
- Solar heating control
- Filter pressure monitoring
- Output for PP60 pump for automatic filter disinfection during backwash
- Signal input from a photovoltaic system and automatic use of surplus energy
- Integrated relay for lighting control with the option to expand by up to four additional relays
- DMX protocol support for controlling RGB lights
ASEKO Cloud Services
Using the Aseko LIVE mobile app and the aseko.cloud web platform, you gain access to up-to-date information about your pool’s status and maintenance in real time. Remote system control is available via the Aseko REMOTE mobile app.

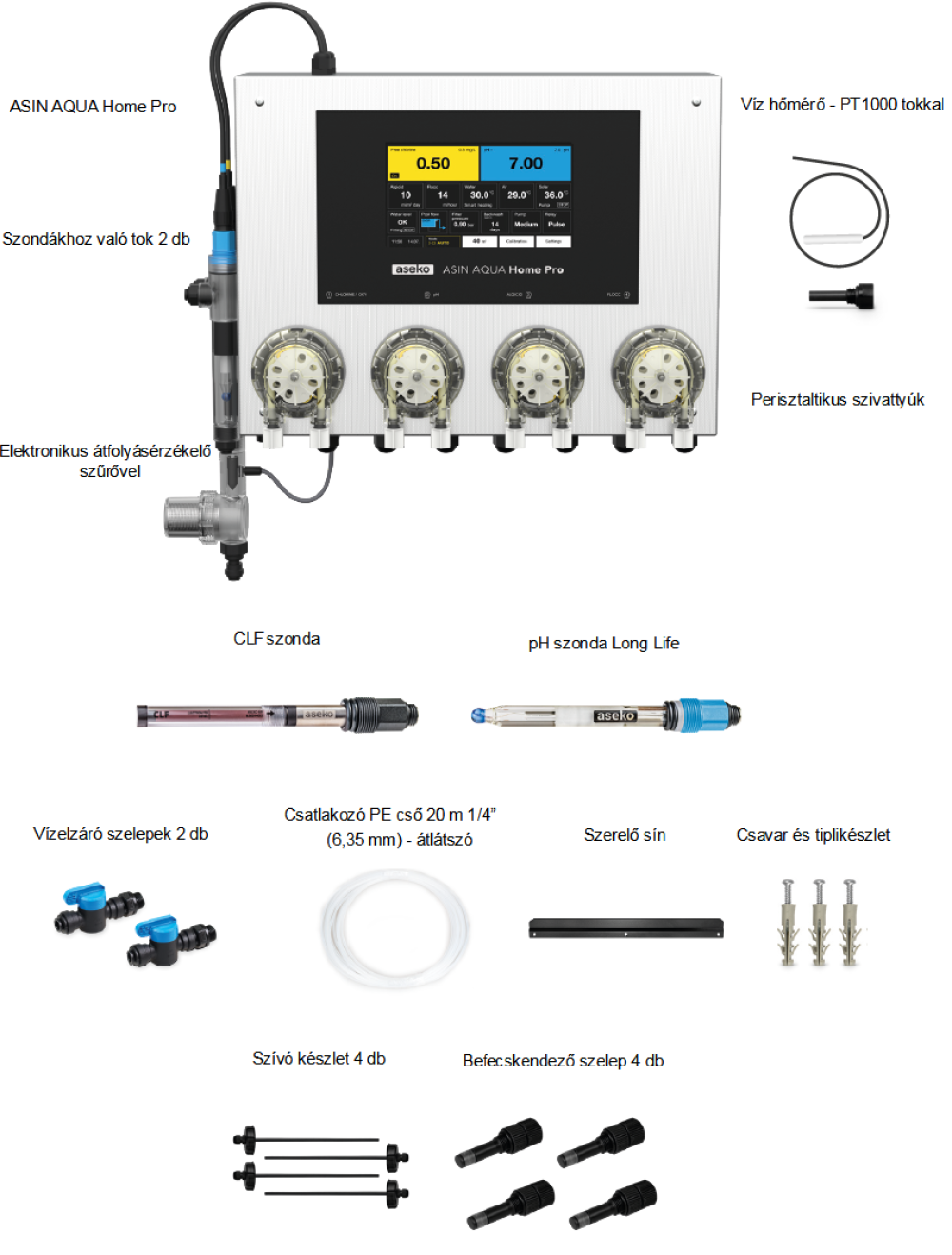

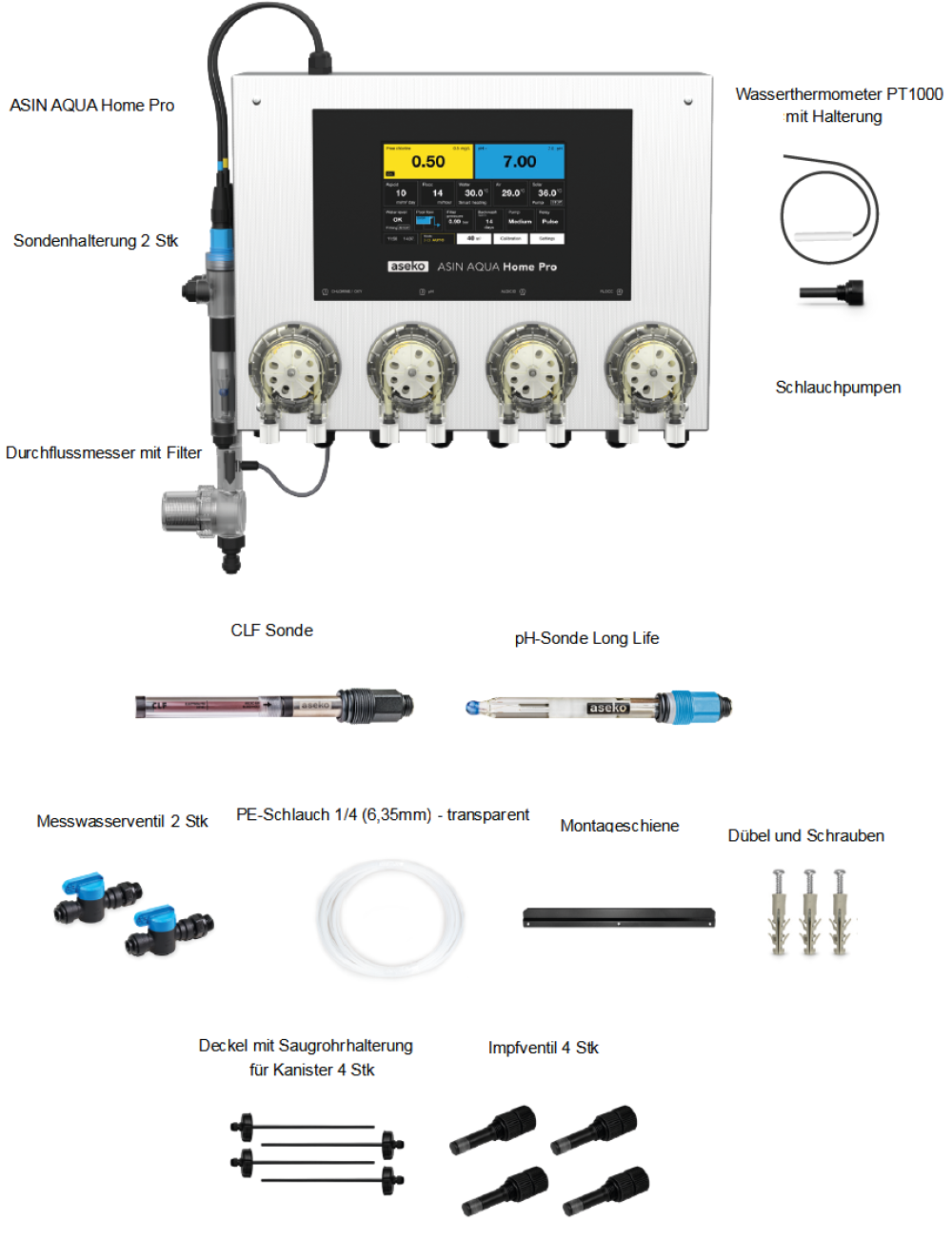

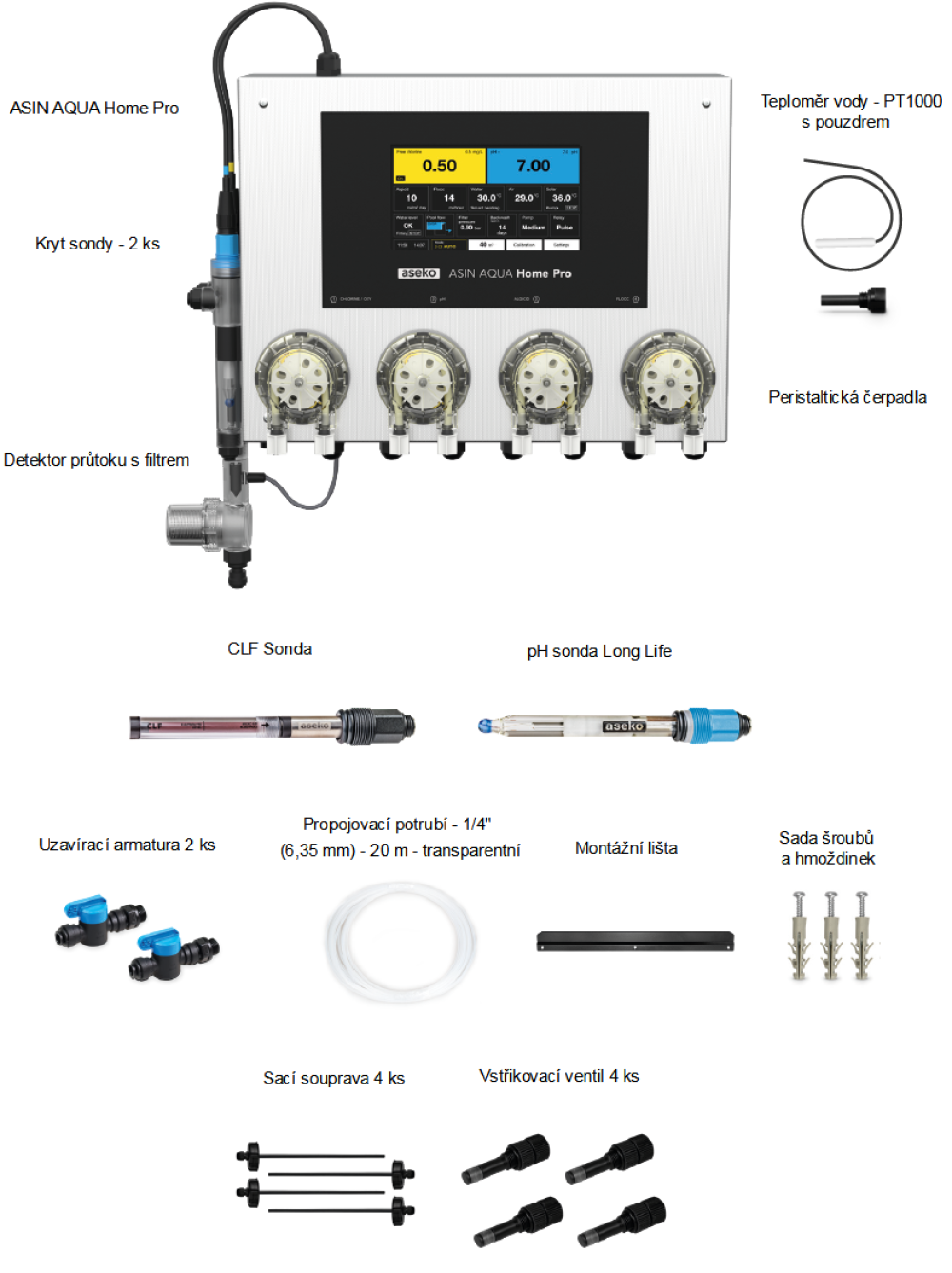

Package Contents
- CLF probe
- Long Life pH probe
- Probe housing, 2 pcs
- Electronic flow detector with filter (speed fit), 1 pc
- Replacement cartridge for PP60 and PP10 peristaltic pump, 1 pc
- Water thermometer - PT1000 with housing (supported on units manufactured from 2021 onward), 1 pc
- Suction set, 4 pcs
- Shut-off fitting G1/4" - for 1/4" tubing, 2 pcs
- Injection valve, 4 pcs
- Connecting tubing - 1/4" (6.35 mm) - 20 m - transparent, 1 pc
- Mounting rail, 1 pc
- Screw and wall plug set, 1 pc
Technical Parameters
- Dimensions: 430 x 330 x 160 mm
- Power supply: 230 V / 50 Hz
- Power input: 24 VA
- Fuses: T1 A; T6.3 A
- Overvoltage category: II
- Protection rating: IP40
- Climate resistance: +5 to +40 °C
- Installation: wall-mounted
- Measured water pressure: max. 1 bar / no negative pressure allowed
- Weight: 6.7 kg
Internet Connection
Aseko Live App
- Clear monitoring of water quality, temperature, and device status
- Tracking chemical consumption
- Automatic alerts for low chemical levels, exceeded measurement limits (chlorine, pH), and device errors or malfunctions
- Remote monitoring – access your pool data anytime
- and from anywhere
- Aseko Live app available for iOS and Android
- Web application with a clear and intuitive interface for monitoring pool water quality
- monitoring water quality, temperature, and device status,
- tracking chemical consumption,
- automatic alerts for low chemical levels, exceeded measurement limits (chlorine, pH), and device errors or malfunctions
- Detailed, professional charts showing current status and 30-day history.
- Ideal for technicians and operators of public pools – enables trend analysis, correlation overviews, and efficient remote diagnostics
- Data export for hygiene and regulatory documentation in professional pool operations
- Easy integration into higher-level control systems and smart homes via an open API
Aseko Remote App
- Aseko Remote app for advanced remote control of pool technology
- Switch between intuitive preset modes (Auto, Eco, Party, On, and Off)
- Set the filtration timer directly from your smartphone
- Control the water flow direction – choose between overflow or bottom drain
- Set the pump speed and optimize performance according to pool usage
- Allows remote control of up to five connected components (e.g. lighting, cover, water attractions)
- Supports remote start of filter backwash for easy maintenance
- Invitation process for easy sharing of remote control access
- Aseko Remote app available for iOS and Android
-
