Aseko Asin Aqua REDOX dosing station
Aseko Asin Aqua REDOX dosing station
Description
Automation for controlling pool water quality, suitable for use in home pools with a volume of up to 250 m³. Read more
Product code: AK12144
-
Aseko Asin Aqua REDOX Dosing Station
Automatic controller for managing pool water quality, suitable for use in home pools and whirlpools up to 250 m3 (up to max. 1 bar pressure).
Asin Aqua Redox automatically measures and regulates the dosed amount of pH and chlorine in the pool using probes.
It doses a pre-set amount of disinfectant and maintains its maximum level according to the preset redox potential. It keeps the selected pH value. Thanks to this, the water is always clear, flawless, and does not smell of chlorine. The unit is equipped with a redox probe for measuring the disinfection level.
It does not measure chlorine concentration!

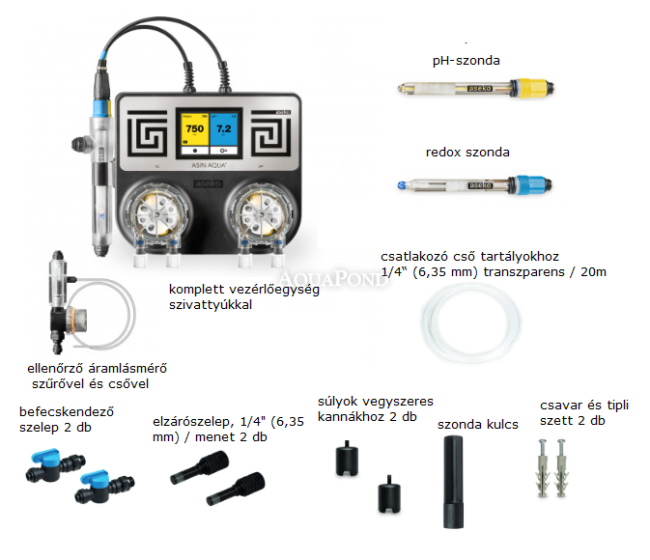

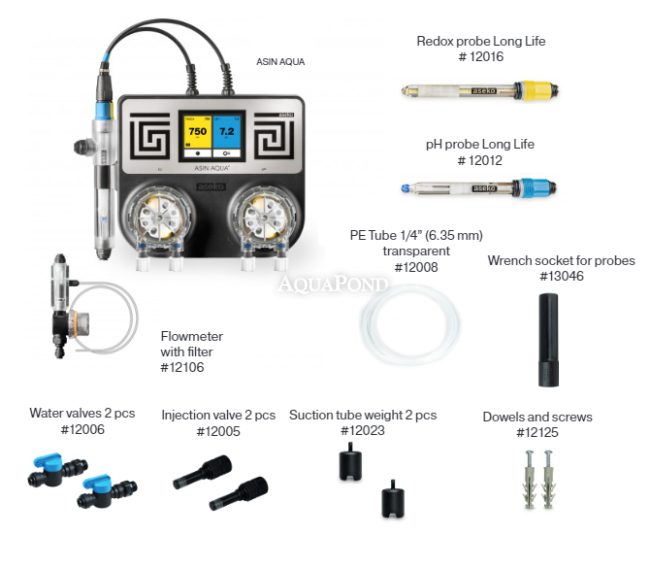

Package Contents
- complete control unit with pumps
- control flow meter with filter and tubing

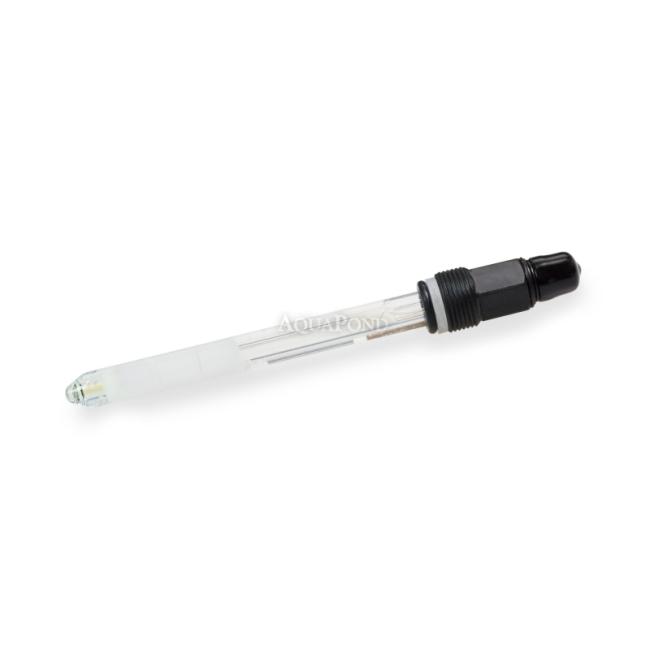

- Long Life pH probe
- Long Life redox probe
- connecting PE tubing 1/4“ (6.35 mm), transparent / 20 m
- chemical injection valves, 2 pcs
- water shut-off fittings, 2 pcs
- weights for chemical canisters, 2 pcs
- set of wall plugs with screws
- probe wrench
Technical Specifications
- Power supply: 230 V/50 Hz
- Power input: 14 VA
- Fuse: T80 mA
- Overvoltage category: II
- Protection rating: IP50
- Operating temperature and humidity: +5 to +40°C / 60%
- Weight: 2.2 kg
- Installation: wall-mounted
- Measured values: pH, chlorine
- Controlled values: pH, chlorine
- Pump output: 60 ml/min. (max. 1 bar)
- Measured water pressure: max. 1.5 bar
-
