Aseko Asin Aqua CLF Dosing Station
Aseko Asin Aqua CLF Dosing Station
Description
The Aseko Asin Aqua CLF dosing station is designed for pools and hot tubs with a water volume of up to 250 m3. Read more
Product code: AK12001
-

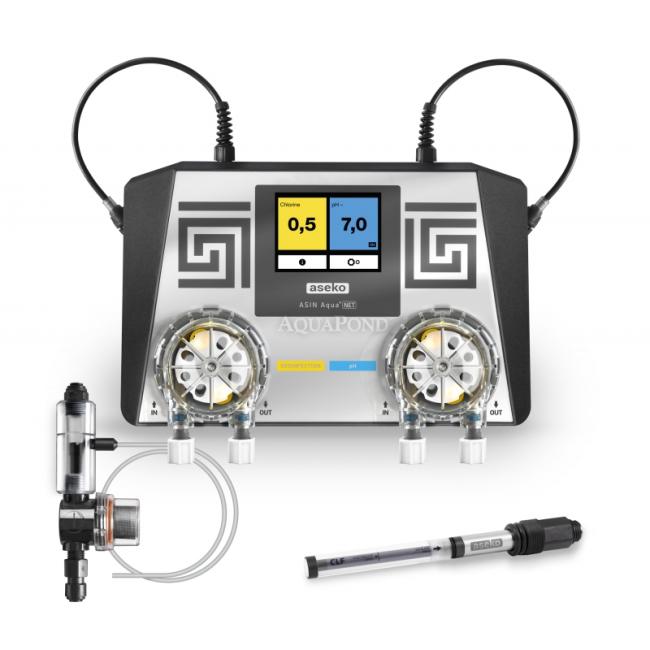

Aseko Asin Aqua CLF Dosing Station
The Aseko Asin Aqua CLF dosing station is designed for swimming pools and hot tubs with a water volume of up to 250 m3. Using probes, it automatically measures and regulates the dosage of pH and chlorine in the pool. The CLF probe measures free chlorine directly in the pool.
Asin Aqua CLF is a compact unit consisting of a control unit, pH and CLF measuring electrodes, and two dosing pumps with an output of 60 ml/min. The pH and chlorine values are displayed on the built-in touchscreen.
Advantages:
- touchscreen display
- easy operation
- multilingual control
- compact design
- peristaltic pumps
- very easy installation
- advanced safety features

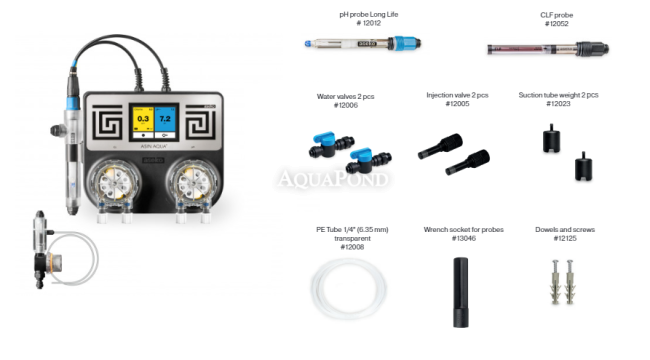

Package Contents
- complete control unit with pumps
- control flow meter with filter and tubing

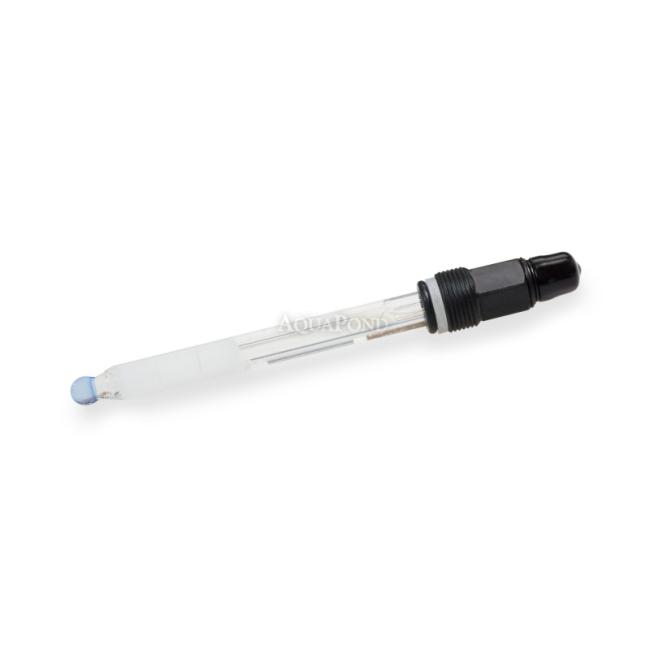

- Long Life pH probe

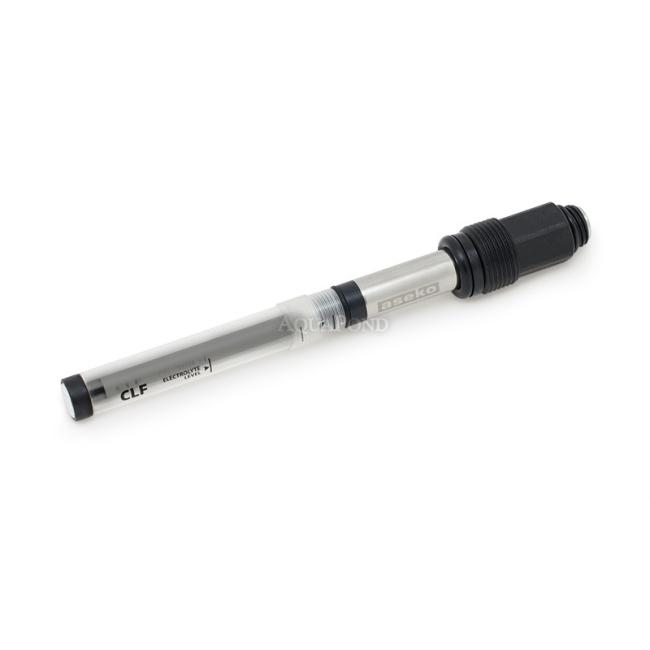

- CLF probe
- 1/4“ PE connecting pipe (6.35 mm), transparent / 20 m
- chemical injection valves, 2 pcs
- water shut-off fittings, 2 pcs
- weights for chemical containers, 2 pcs
- set of wall plugs with screws
- probe wrench
Technical Specifications
- Power supply: 230 V / 50 Hz
- Power input: 14 VA
- Fuse: T80 mA
- Overvoltage category: II
- Protection rating: IP50
- Operating temperature and humidity: +5 to +40°C / 60%
- Weight: 2.2 kg
- Installation: wall-mounted
- Controlled values: pH, free chlorine
- Pump output: 60 ml / min. (max. 1 bar)
- Measured water pressure: max. 1.5 bar
-
