Aseko Asin Aqua Pro Dosing Station
Aseko Asin Aqua Pro Dosing Station
Description
Professional control unit for precise pool water chemistry management and automation of pool technology. Read more
-
Aseko Dosing Station Asin Aqua Pro
ASIN Aqua PRO is the most advanced system for pool water treatment and pool technology automation for all types of pools with various technology configurations. Pool water disinfection using liquid chlorine dosing, an electrolyzer, or chlorine gas is controlled by the unique ASEKO CLF probe. Precise pH regulation is controlled by the pH probe. Time-based dosing of algaecide and flocculant for comprehensive pool water care. The combination of these chemicals ensures crystal-clear pool water while using the minimum necessary amount of chemicals. Pool technology management functions automate your pool operation and minimize the need for manual maintenance. The touchscreen displays all water quality information and allows easy setup of the entire system. Thanks to the internet connection, you can monitor your pool parameters via the Pool LIVE mobile or web app and control the system remotely using the Pool REMOTE app.
Maximum pool volume 2000 m3.
Pool Water Treatment
- Chlorine regulation controlled by CLF and Redox probes (liquid chlorine, electrolysis, or chlorine gas)
- pH- and pH+ dosing controlled by the pH probe
- Optional total chlorine probe
- Algaecide dosing
- Flocculant dosing
- Extra pump for filter disinfection during backwashing
Pool Technology Automation
- Advanced filter backwash settings based on time, flow, or filter pressure
- VS pump control
- Smart heating and solar function settings
- Water flow control for overflow/bottom drain
- 5 adjustable modes (Auto, Party, Eco, Winter, On, Off)
- Aseko Cloud Services
The unit can be monitored via the Aseko Live app and the aseko.cloud website. The unit can also be controlled remotely via the Aseko Remote app.
Package Contents
- ASIN Aqua PRO control unit 1 pc
- CLF probe 1 pc
- REDOX probe for SALT 1 pc
- Long Life pH probe 1 pc
- Probe holder 4 pcs
- Flow detector with filter 1 pc
- Connecting pipe 15 m - transparent 1 pc
- Water thermometer - PT1000 with thermowell (supported on units manufactured from 2021) 1 pc
- Shut-off valve 2 pcs
- Weight for canister 4 pcs
- Injection valve 4 pcs
- Wall plugs and screws 2 pcs + 2 pcs
Measured Water Connection
The pool water intended for measurement must be connected to the ASIN AQUA Profi. Connect the measured water inlet after the pump, before the filter and coagulation mixer. The shut-off valve is installed in a DN50 plug with G1/4" thread, glued into a T-piece. For connecting the measured water to your ASIN AQUA Profi, Aseko provides a unique Speedfit connection fitting. To connect, push the connecting pipe into the Speedfit connector and then secure it by pulling on the tube. To disconnect, press and hold the circular collet and pull out the connecting pipe.
WARNING: use a sharp knife to prepare the pipe ends (included in the delivery).
Using scissors or pliers will deform the end of the tube and cause leaks.WARNING: tighten by hand only. Do not use pliers or other tools.
- To ensure leak-tight joints, cut the pipe at a 90° angle.
- Use a sharp knife to cut the plastic. The cut must be clean and smooth.
- Connect the water inlet to the measured water filter connection and the outlet to the connection on the
probe tank. Make sure the measured water pressure does not exceed 1.5 bar. - The outlet from the tank can be made:
- after filtration
- to a pressure-free line (overflow tank)
Technical Specifications
- Maximum pool volume: 2000 m3
- Power supply: 230 V, 50 Hz
- Power input: 24 VA
- Power consumption (including filtration): 1449 VA
- Maximum power input of connected filtration: 1.4 kW / 230 V AC
- Fuse: T1 A; T125 mA or T170 mA
- Overvoltage category: II
- Protection rating: IP30
- Climate resistance: +5 to +40°C
- Weight: 6.7 kg
- Installation: wall-mounted
- Measured water pressure: max. 1 bar (negative pressure not allowed)
- Dimensions: 430 x 330 x 160 mm
Internet Connection
The LAN connector is connected to the home router. Data is sent at 10-second intervals to pool.aseko.com, and the path must not be blocked by a firewall. Data usage approx.: 0.1 GB per month. Connecting the ASIN AQUA Pro to your network is not difficult, but it does require basic IT knowledge. If you have no experience with network setup, it is better to invite an IT specialist to handle the installation.

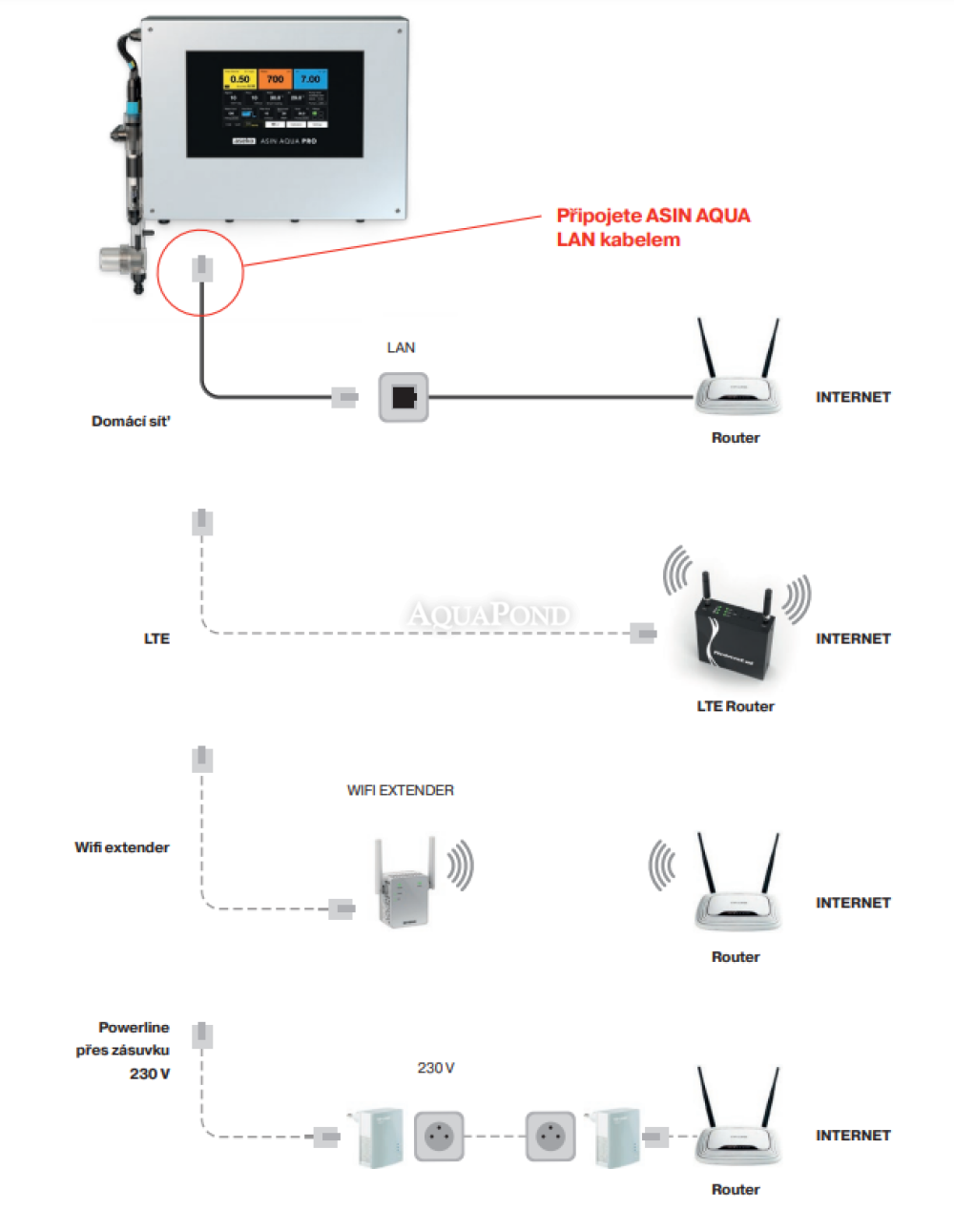

Internet Connection Options
Home Network
- Connect the ASIN AQUA Profi using a LAN cable directly to your router.
Mobile Network
- If you do not have direct internet access via Wi-Fi or a local network, you can connect the ASIN AQUA Pro to a mobile data network using a 3G/LTE router.
Wi-Fi Connection
- Using a Wi-Fi extender, you can connect the ASIN AQUA Pro to your wireless network.
Connection via 230 V Power Line
- If the ASIN AQUA Pro installation is located where neither your local network nor Wi-Fi reaches, but you use the same electrical distribution board operating on the same phase as your home, you can connect to your local network using a 230 V Powerline adapter.
Aseko Pool Live App
A smartphone app for iOS and Android that gives you an overview of your pool status wherever you are, as long as you are connected to the internet. ASIN AQUA automatically sends an alert to your smartphone if one of the selected limit values is exceeded or if a system error occurs. You can easily check the amount of chemicals in the canisters so you can order new chemicals in time. Pool LIVE for iOS Pool LIVE for Android.
-
