Dinotec Yellow Dosing Station - Kit 5 - pH, Free Chlorine, 2 Dosing Pumps, TMP Probe, Pump / Light Control

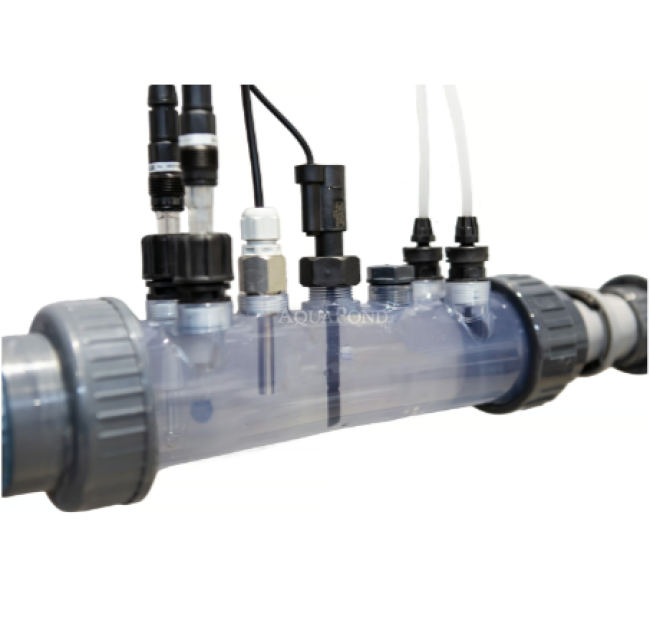

Dosing and control station for measuring and regulating pH and free chlorine with two dosing pumps. The set includes, among other things, pH and Redox measurement, a control cable for a multi-speed filter pump, a connection cable for the transformer of underwater lighting, a 1/2" temperature sensor with pre-wired connection cable and heating enable, 2x suction lance with low-level warning, and additionally free chlorine measurement. It also includes 1x potentiostatic counter electrode, a fine filter, and a fully assembled and pre-wired unit on a wall mounting plate. The control unit is equipped with a 5" capacitive touchscreen with intuitive operation, allowing quick configuration and clear monitoring of operating status. Thanks to automatic control mode and the option to set time programs, it ensures stable operation with minimal user intervention, while allowing different dosing outputs (flow rates) of the dosing pumps to be defined for individual time intervals. The station supports remote access via the dinoConnect platform (web and mobile apps), enabling efficient device management, diagnostics, and remote service interventions. For users looking for a technically advanced, high-performance, and future-ready dosing system for pool water with a high level of integration, it represents a reliable solution with clear management and efficient operation.

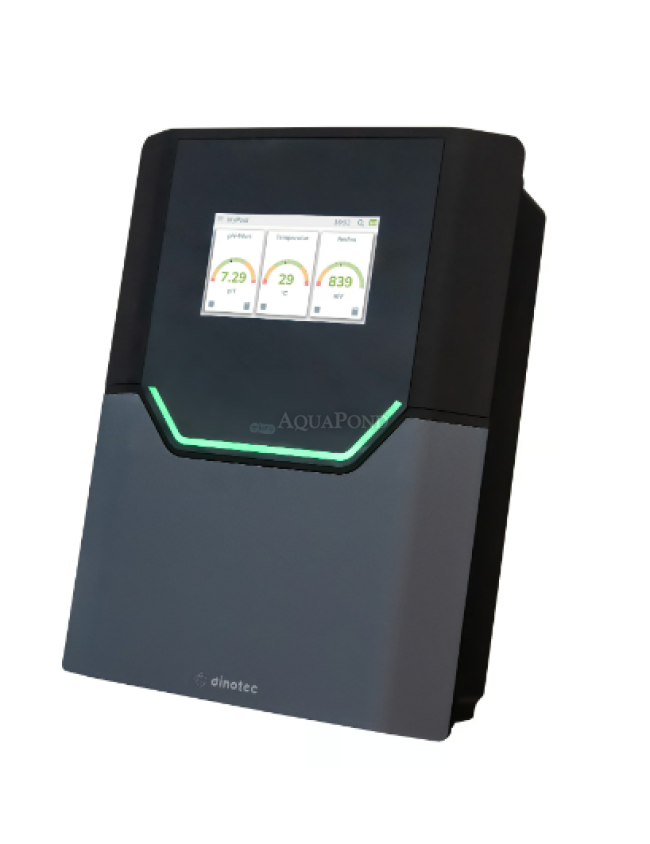

Dinotec Yellow is a modern system for automatic dosing and control of pool technology. It offers precise dosing of pH and disinfectant using integrated peristaltic pumps, intuitive operation via a 5" touchscreen, and remote access via WiFi, a web interface, and a mobile app. The system enables control of pool filtration, heating, and lighting, water flow monitoring, calibration archiving, and display of measurement history. It supports integration into Smart Home systems via KNX and MQTT and offers advanced functions such as freeze protection, holiday mode, remote updates, and AI support for operation and service.
Benefits
- Touchscreen display

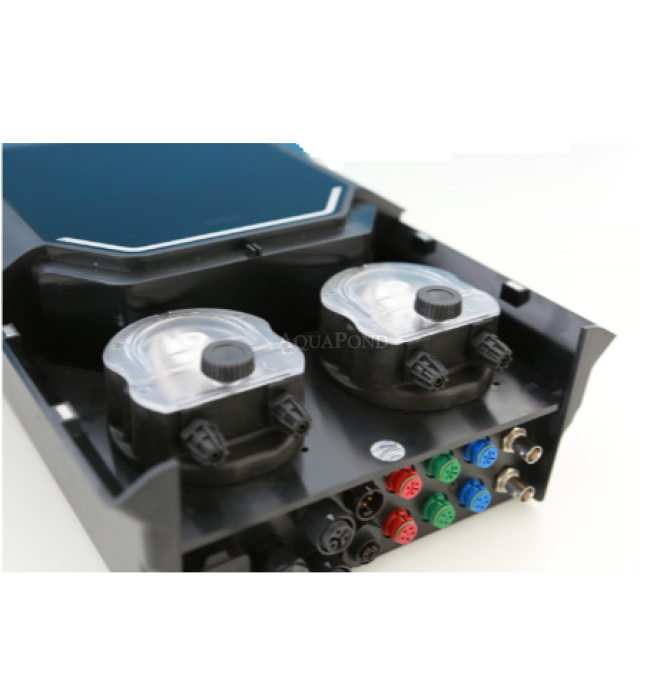

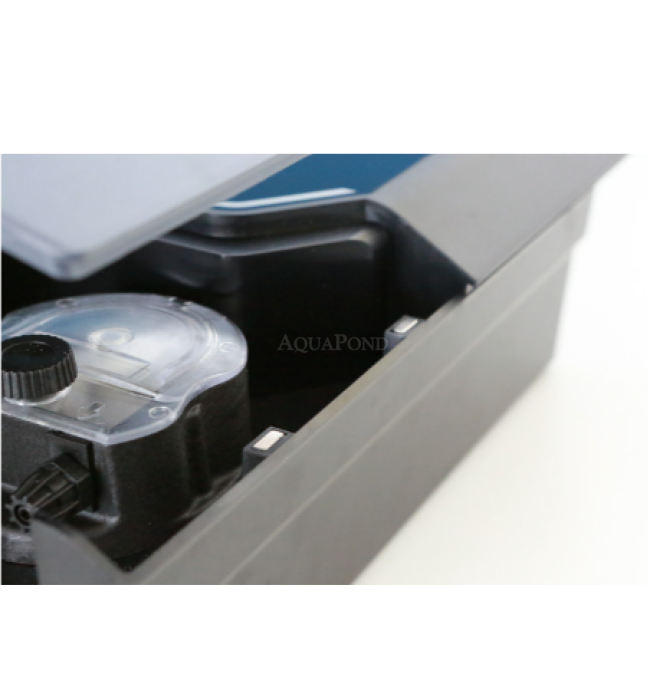

- Integrated dosing pump for pH and chlorine
- RFID quick user login (chip, card)
- Remote access via dinoConnect (web + app)
- Filter pump control
- AI assistant (setup guide, explanations, protections, and more)
dinoConnect App
The dinoConnect app is a modern tool that allows you to keep your system under control continuously and from anywhere. Thanks to the remote access function, you can conveniently monitor and control connected devices directly from your smartphone or tablet, whether you are at home, at work, or on the go.
App download links:
Package Contents
- Set 2 pH, free chlorine, with 2 dosing pumps
- TMP probe
- Paddle flow switch
- 2x injection valve 1/2"
- 2x suction set (without empty-container signal)
- Prepared mains power cable for filter pump
- 4x drilling saddle clamp 1/2"
- 1x drilling saddle clamp 3/4"
Technical Parameters
- Dimensions (h x w x d): 34 x 26 x 12.5 cm

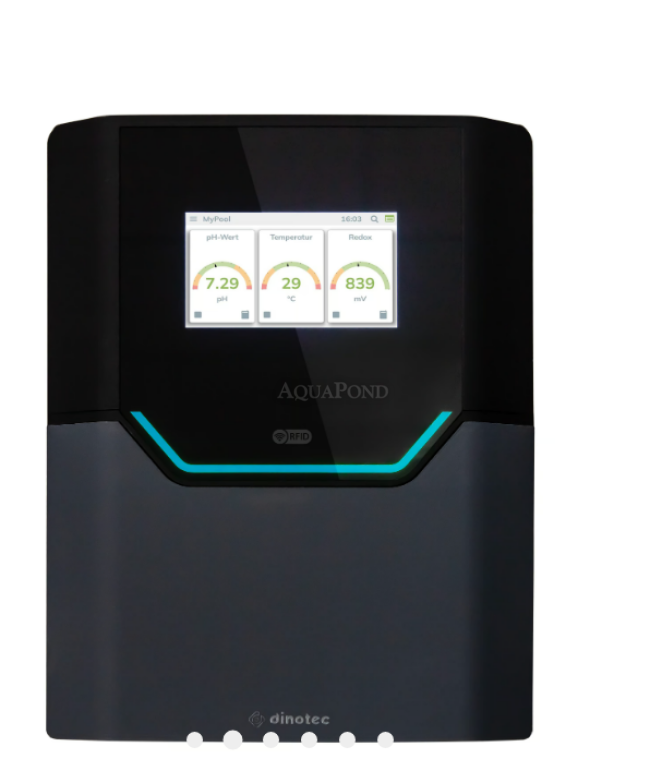

- Control: Via 5″ color touchscreen panel
- Mains voltage: 230 V, 50 Hz
- Power consumption: max. 35 W

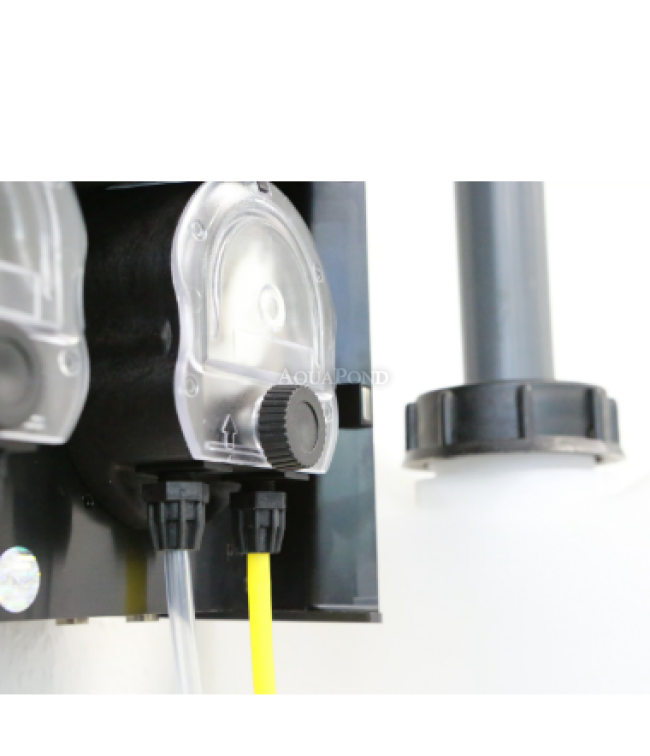

- Integrated peristaltic dosing pumps: 230 V, 50 Hz, flow rate 5 l/h
- Max. output of filter circulation pump: up to 1.5 kW
- Switching relays (red, green, blue): Potential-free contact (not suitable for 230 V)
- Protection for filter circulation pump: 16 A
- Lighting protection: 8 A
- Switching relay: 100 mA / 30 V (not suitable for 230 V AC)
- Operating conditions: 0° to +45 °C, non-condensing
- Storage temperature: 0 to 60 °C
- Protection class: IP 65
- Language: Multilingual
- Weight: 2.7 kg (yellow Poolcontrol with 2 dosing pumps)
Communication Interfaces
- Ethernet / RJ45
- WiFi
- RFID for dinoChip
- Modbus TCP
- KNX IP BAOS
- MQTT
- DMX / Art-Net
