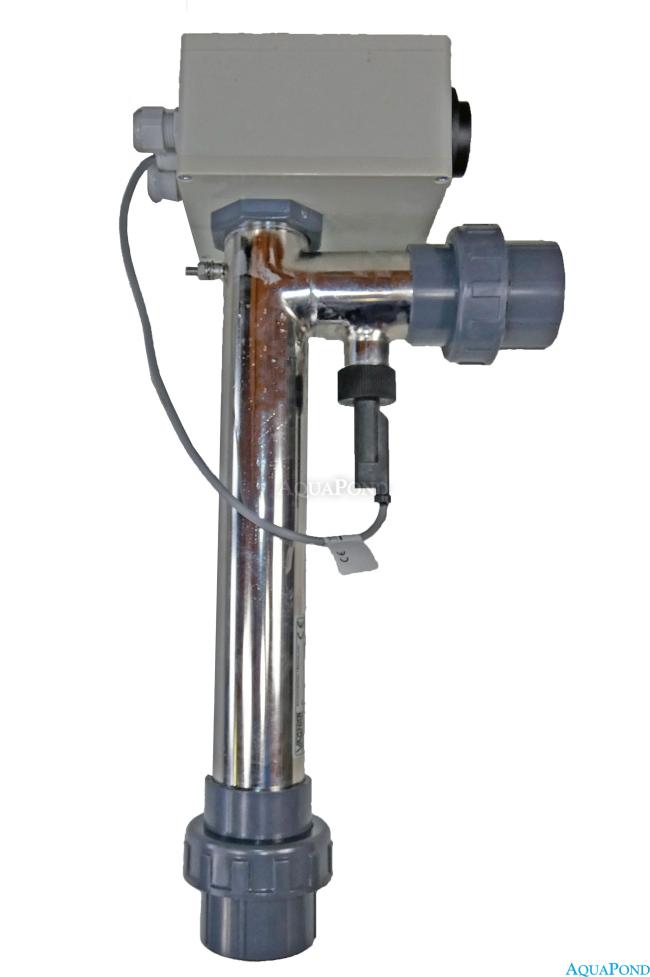

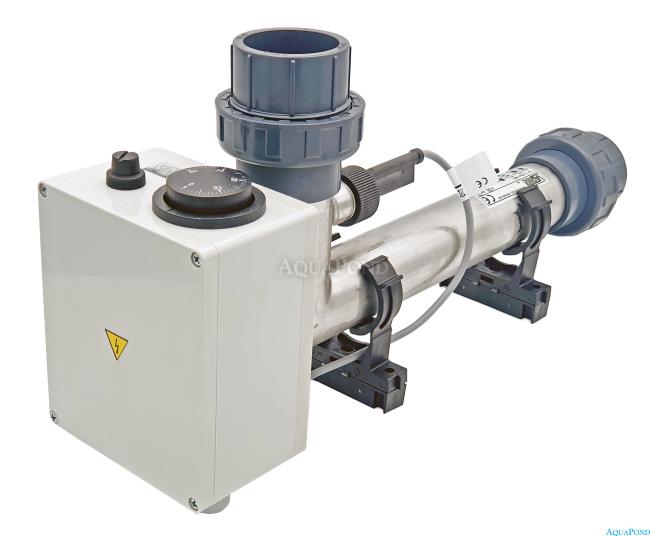

Electric heater EOVk-18, 18 kW 400 V, stainless steel, with electric flow switch
 |
 |
Electric heater EOVk-18, 18 kW 400 V, stainless steel, with electric flow switch
Description
The electric flow heater is designed for heating water in swimming pools and hot tubs. It works by heating the flowing water through the heating element, and the temperature of the heated water is set ... Read more
-
Electric Heater EOVk-18, 18 kW 400 V, Stainless Steel, with Electric Flow Switch
The electric flow heater is designed for heating water in swimming pools and whirlpool baths. It works by heating the flowing water as it passes through the heating body, with the water temperature set by a control thermostat. The heating element is switched by a contactor controlled by the thermostat and a safety flow sensor. For this reason, the heater requires so-called “large automation” - a 24-hour filtration timer, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch.
The EOVk pool electric flow water heater is specially designed for heating pool water or water in other circulation systems with flow and temperatures up to 40 °C. The heater must be installed in the electrical system behind a residual current device. We therefore recommend supplementing the unit with a suitable type of automatic control.
Each EOVk electric heater:
- uses the conversion of electrical energy into thermal energy
- is made of high-quality stainless steel with TITANIUM AISI 316 alloy
- is made of high-quality PVC (EOVp type)
- has a heating cartridge made of Incoloy 800 stainless material with TITANIUM alloy, ensuring top quality
- is 100% leak tested
- can be connected to the water circuit via a 1.5" thread, 50 mm hose, or 50 mm glue connection
- is equipped with a thermostat up to 40 °C and a thermal fuse
- is equipped with a flow switch that monitors water flow
- is equipped with 2 brackets for easy mounting
- EOVk is identical to the EOV type, with the only difference being that water flow through the unit is detected by a flow switch
Use:
- For heating indoor and outdoor pools
- For heating whirlpools
- For chlorinated water

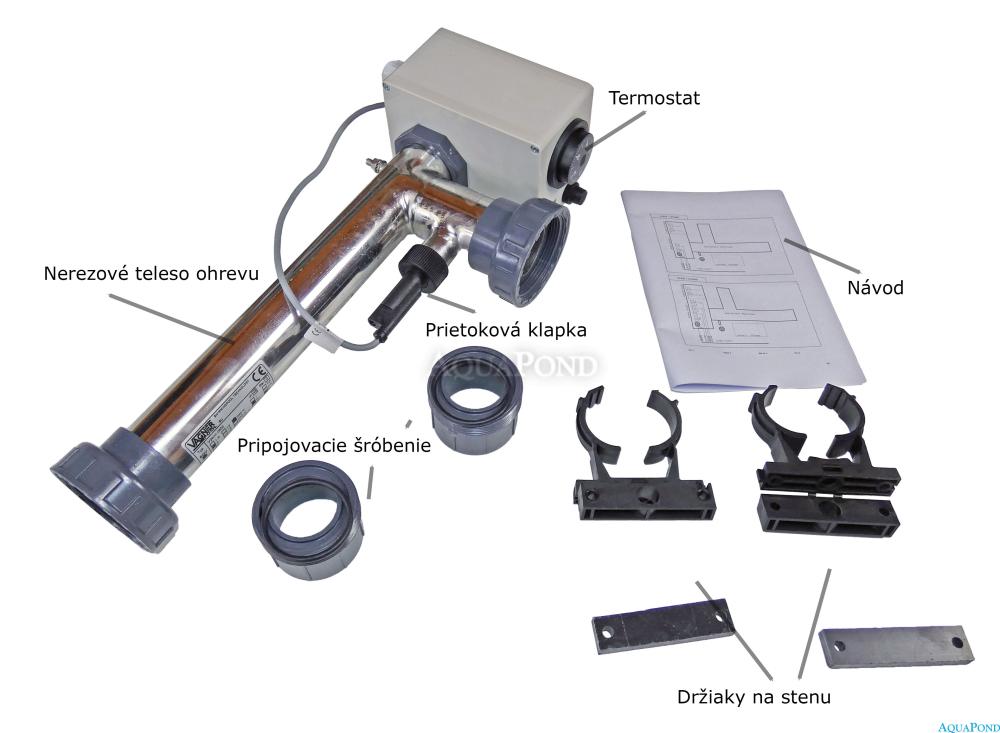

Package Contents
- Stainless steel heater body
- Internal electric heating coil
- Rotary thermostat for regulating water temperature up to 40°C
- Thermal fuse against overheating
- Pressure flow sensor against dry running
- 2 pieces of PVC 50 mm connecting fittings
- 2 wall brackets
Principle of Operation of the Electric Heater
When the heater is switched on, electrical energy is consumed and
the titanium coil built into the long tube begins to generate heat.
The flowing water from the pool absorbs this heat and returns heated back into the pool.
Technical Parameters
- Minimum water flow: 4 m3 / h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with a pipe diameter of 50 mm
- Water quality: chloride content max. 150 mg / l
- Max chlorine content: 1 mg / l
- pH range: 7.0-7.8
- Operating temperature: 5 ~ 40 °C
- Weight: 3.75 kg
- Power supply voltage: 400 V
- Output: 18 kW
- Required protection: 32 A

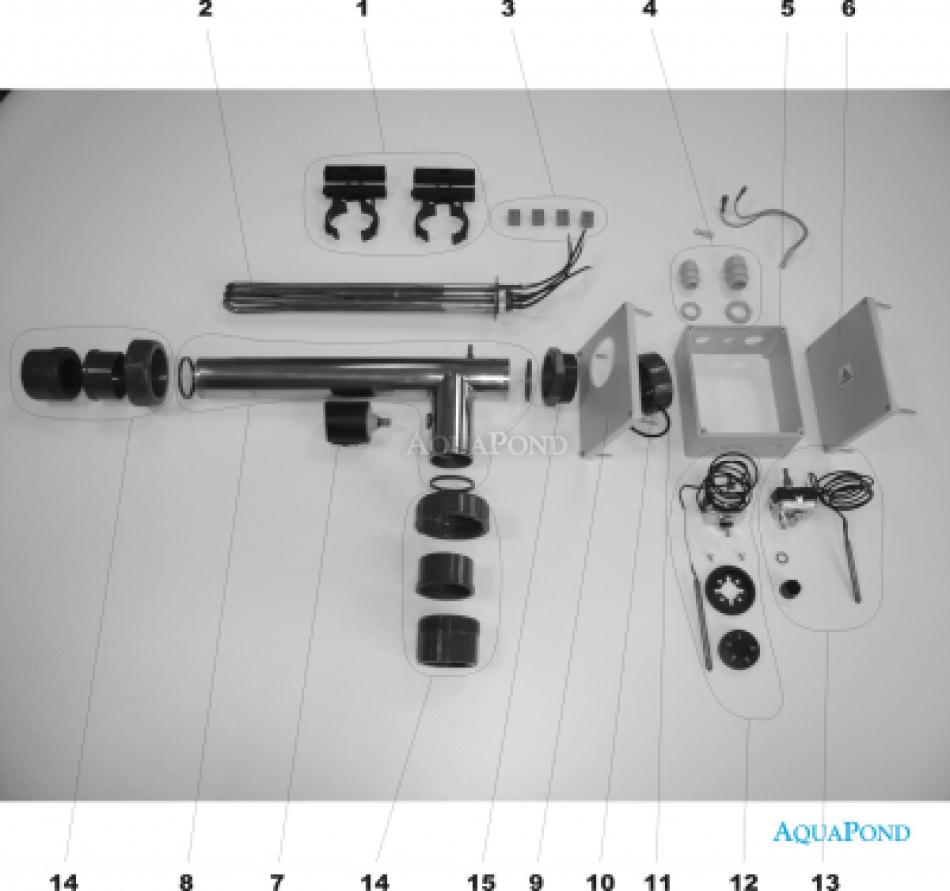

List of Spare Parts
The complete list of spare parts can be found here:
Spare parts for electric heater EOVk-18, 18kW 400V, stainless steel, with electric flow switch
-
