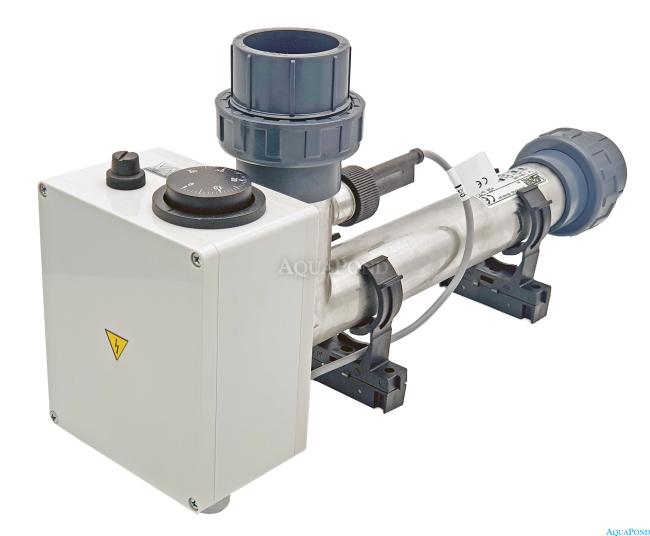

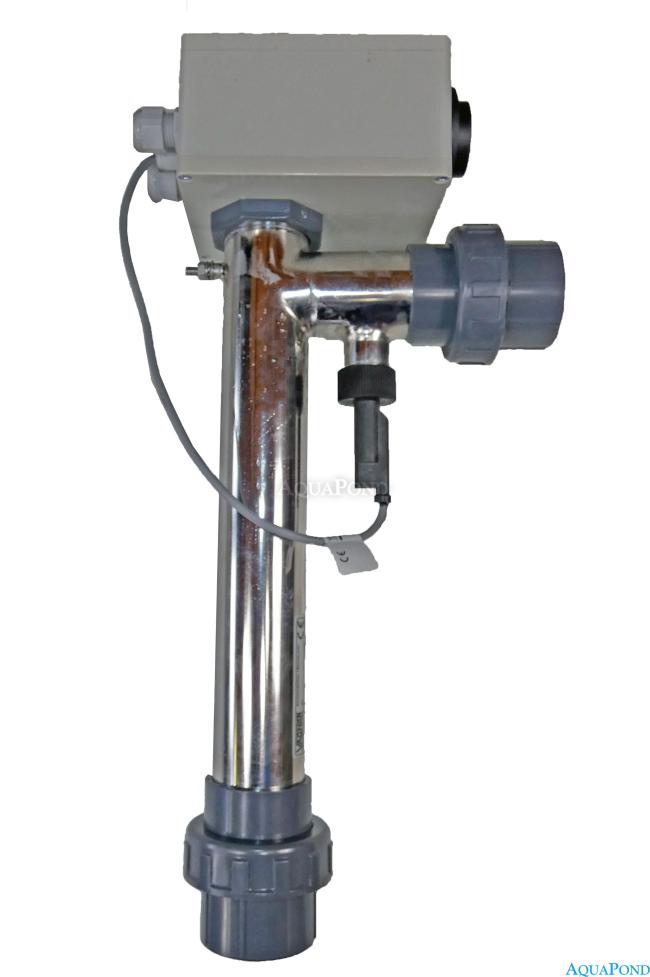

Electric heater EOVk-3, 3 kW 230 V, stainless steel, with electric flow flap
|
 |
Electric heater EOVk-3, 3 kW 230 V, stainless steel, with electric flow flap
Description
The electric flow-through heater is designed for heating water in swimming pools and hot tubs. It works by heating the water as it flows through the heating element, and the temperature of the heated water ... Read more
-
Electric Heater EOVk-3, 3 kW 230 V, Stainless Steel, with Electric Flow Switch
The electric flow-through heater is designed for heating water in swimming pools and whirlpool baths. It works by heating the flowing water as it passes through the heating body, with the water temperature set by a control thermostat. The heating element is switched by a contactor, which is controlled by the thermostat and the safety flow indicator mentioned above. For this reason, the heater requires so-called “large automation” - a 24-hour filtration timer, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch.
The EOVk pool electric flow-through water heater is specially designed for heating pool water or water in other water circuits with flow and temperatures up to 40 °C. The heater must be installed in the electrical system behind a residual current device. We therefore recommend supplementing the unit with a suitable type of automatic control.
Each EOVk electric heater:
- uses the conversion of electrical energy into thermal energy
- is made of high-quality stainless steel with a TITANIUM AISI 316 alloy
- is made of high-quality PVC (EOVp type)
- has a heating cartridge made of Incoloy 800 stainless material with a TITANIUM alloy, ensuring top quality
- is 100% leak-tested
- can be connected to the water circuit via a 1.5" thread, 50 mm hose, or 50 mm solvent welding
- is equipped with a thermostat up to 40 °C and a thermal fuse
- is equipped with a flow switch that monitors water flow
- is equipped with 2 brackets for easy mounting
- EOVk is identical to the EOV type, except that the water flow through the unit is monitored by a flow switch
Use:
- For heating indoor and outdoor pools
- For heating whirlpools
- For chlorinated water
Package Contents
- Stainless steel heating body
- Internal electric heating coil
- Rotary thermostat for regulating water temperature up to 40°C
- Thermal fuse against overheating of the heater
- Pressure flow sensor against dry running
- 2 pieces of PVC 50 mm connecting fittings
- 2 wall brackets
- Instructions
Principle of Operation of the Electric Heater
When the heater is switched on, electrical energy is consumed and
the titanium coil built into the long tube begins to generate heat.
The flowing water from the pool absorbs this heat and returns heated back to the pool.

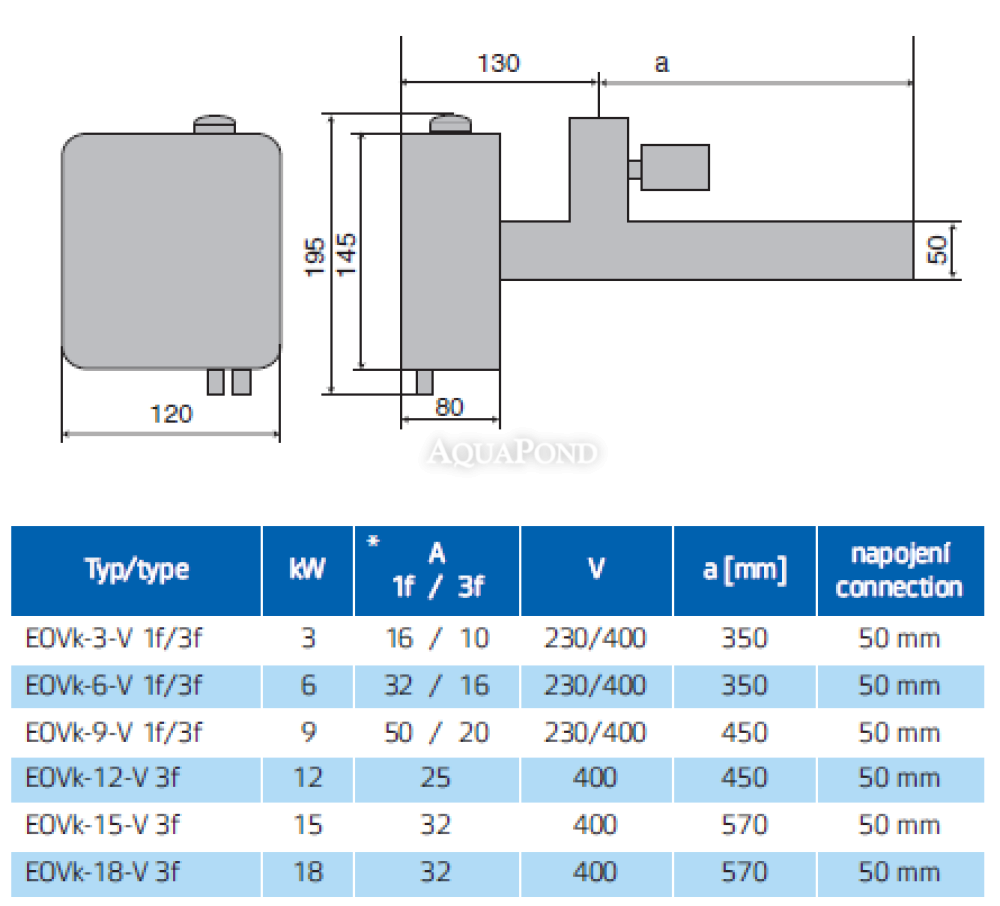

Technical Parameters
- Minimum water flow: 4 m3 / h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with a pipe diameter of 50 mm
- Water quality: chloride content max. 150 mg / l
- Max chlorine content: 1 mg / l
- pH range: 7.0-7.8
- Operating temperature: 5 ~ 40 °C
- Weight: 2.90 kg
- Supply voltage: 230 V
- Power: 3 kW
- Required protection: 16 A
Spare Parts List
You can find the complete list of spare parts here:
Spare parts for electric heater EOVk-3, 3kW 230V, stainless steel, with electric flow switch
-
