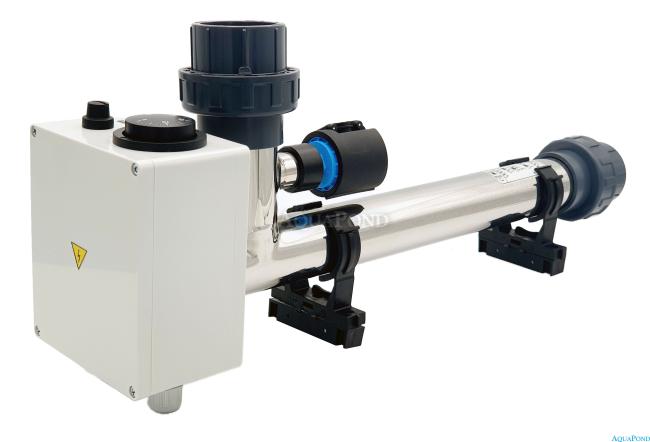

Electric heater EOV - 3, 3 kW, 230 V, stainless steel, with pressure switch
Electric heater EOV - 3, 3 kW, 230 V, stainless steel, with pressure switch
Description
The electric flow heater is designed for heating water in swimming pools and hot tubs. It works by heating the water as it flows through the heating element, while the temperature of the heated water is ... Read more
-
Electric Heater EOV - 3.3 kW, 230 V, stainless steel, with pressure switch
The electric flow-through heater is designed for heating water in swimming pools and whirlpool tubs. It works by heating the water as it flows through the heating element, while the temperature of the heated water is controlled by an adjustable thermostat. The heating element is switched by a contactor controlled by the thermostat and a safety flow indicator. For this reason, the heater requires so-called “large automation” - a 24-hour filtration timer, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch.
The EOV pool electric flow-through water heater is specially designed for heating pool water or water in other circulation systems with a flow rate and temperature up to 40 °C. The heater must be installed in the electrical system behind a residual current device. We therefore recommend equipping the unit with a suitable type of automatic control.
Each EOV electric heater:
- uses the conversion of electrical energy into thermal energy
- is made of high-quality stainless steel with TITANIUM AISI 316 alloy
- is made of high-quality PVC (EOVp type)
- has a heating cartridge made of Incoloy 800 stainless material with a titanium alloy, ensuring top quality
- is 100% leak tested
- can be connected to the water circuit via a 1.5" thread, 50 mm hose, or 50 mm solvent welding
- is equipped with a thermostat up to 40 °C and a thermal fuse
- is equipped with a flow switch that monitors water flow
- is supplied with 2 brackets for easy mounting
Use:
- For heating indoor and outdoor pools
- For heating whirlpools
- For chlorinated water
Package contents
- Stainless steel heating body
- Internal electric heating coil
- Rotary thermostat for regulating water temperature up to 40°C
- Thermal fuse against heater overheating
- Pressure flow sensor against dry running
- 2 pieces of PVC 50 mm connecting fittings
- 2 wall brackets
Principle of operation of the electric heater
When the heater is switched on, electrical energy is consumed and
the titanium coil built into the long tube begins to release heat.
The flowing water from the pool absorbs this heat and returns heated back to the pool.

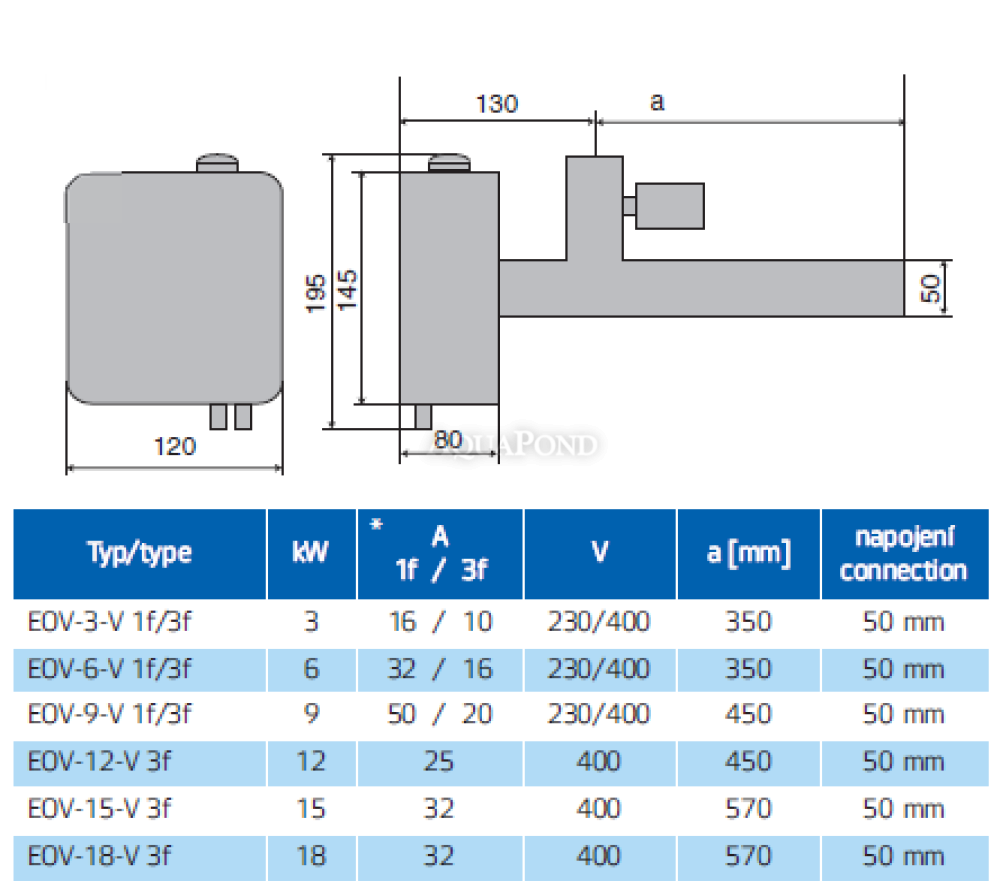

Technical parameters
- Minimum water flow: 4 m3 / h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with a pipe diameter of 50 mm
- Water quality: chloride content max. 150 mg / l
- Max. chlorine content: 1 mg / l
- pH range: 7.0-7.8
- Operating temperature: 5 ~ 40 °C
- Weight: 2.90 kg
- Supply voltage: 230 V
- Power: 3 kW
- Required protection: 16 A
Spare parts list
You can find the complete list of spare parts here:
Spare parts for electric heater EOV-3.3 kW 230V, stainless steel, with pressure switch
-
