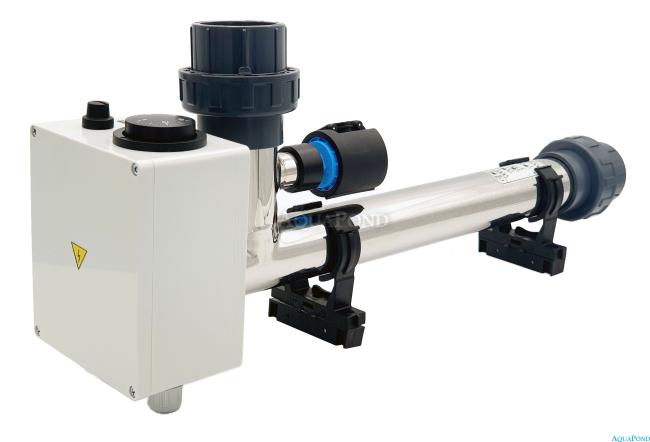

Electric heater EOV - 15, 15 kW, 400 V, stainless steel, with pressure switch
Electric heater EOV - 15, 15 kW, 400 V, stainless steel, with pressure switch
Description
The electric flow heater is designed for heating water in swimming pools and hot tubs. It works by heating the water as it flows through the heating element, and the temperature of the heated water is ... Read more
-
Electric Heater EOV - 15, 15 kW, 400 V, stainless steel, with pressure switch
The electric flow-through heater is designed for heating water in swimming pools and whirlpool baths. It works by heating the water as it flows through the heating element, with the water temperature controlled by an adjustable thermostat. The heating element is switched by a contactor, which is controlled by the thermostat and the built-in safety flow sensor. For this reason, the heater requires so-called “large automation” - a 24-hour filtration timer, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch.
The EOV pool electric flow-through water heater is specially designed for heating pool water or water in other circulation systems with flow and temperatures up to 40 °C. The heater must be installed in the electrical system behind a residual current device. We therefore recommend supplementing the unit with a suitable type of automatic control.
Each EOV electric heater:
- converts electrical energy into heat energy
- is made of high-quality stainless steel with TITANIUM AISI 316 alloy
- is made of high-quality PVC (EOVp type)
- has a heating cartridge made of Incoloy 800 stainless material with TITANIUM alloy, ensuring the highest quality
- is 100% leak tested
- can be connected to the water circuit via a 1.5" thread, 50 mm hose, or 50 mm solvent welding
- is equipped with a thermostat up to 40 °C and a thermal fuse
- is equipped with a flow switch that monitors water flow
- comes with 2 mounting brackets for easy installation
Use:
- For heating indoor and outdoor pools
- For heating whirlpools
- For chlorinated water
Package contents
- Stainless steel heater body
- Internal electric heating coil
- Rotary thermostat for regulating water temperature up to 40°C
- Thermal fuse against heater overheating
- Pressure flow sensor against dry running
- 2 pieces of PVC 50 mm connecting fittings
- 2 wall brackets
How the electric heater works
When the heater is switched on, electrical energy is consumed and
the titanium coil built into the long tube begins to generate heat.
The flowing water from the pool absorbs this heat and returns warmed back to the pool.

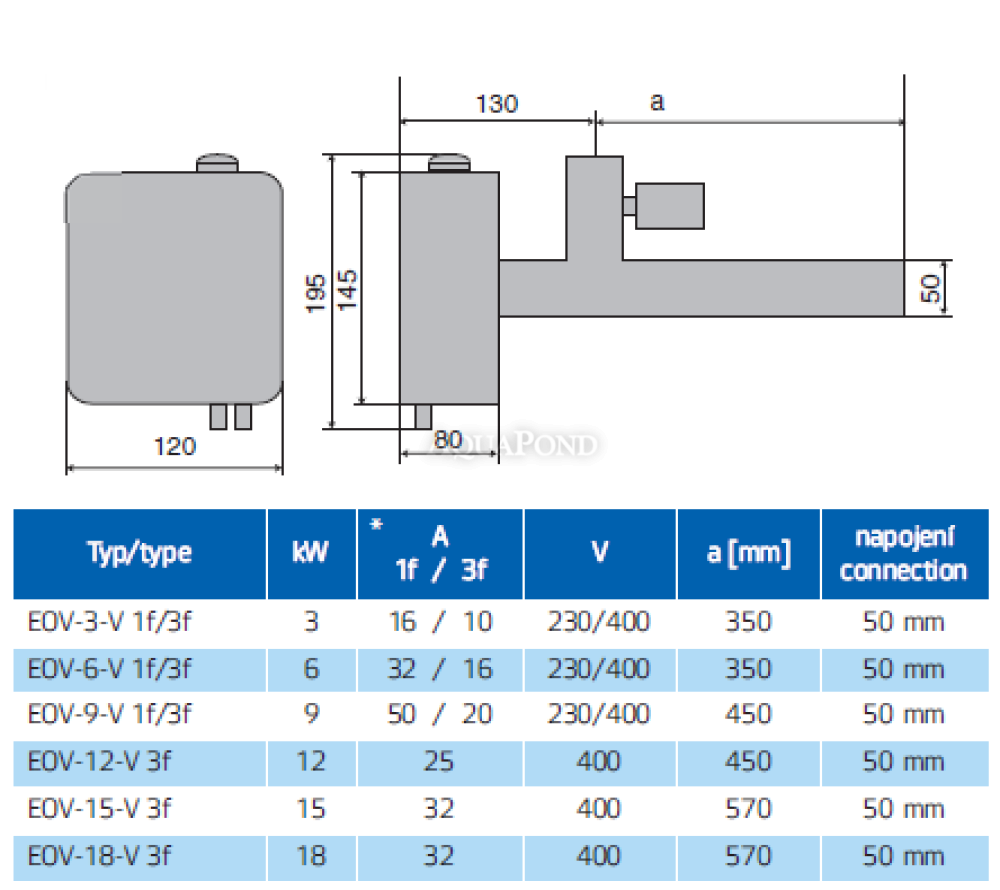

Technical parameters
- Minimum water flow: 4 m3 / h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with a pipe diameter of 50 mm
- Water quality: chloride content max. 150 mg / l
- Max. chlorine content: 1 mg / l
- pH range: 7.0-7.8
- Operating temperature: 5 ~ 40 °C
- Weight: 3.75 kg
- Power supply voltage: 400 V
- Output: 15 kW
- Required protection: 32 A
Spare Parts List
You can find the complete spare parts list here:
Spare parts for electric heater EOV-15, 15kW 400V, stainless steel, with pressure switch
-
