Counter-current JET SWIM ATHLETE - 76 m3/h, 400 V, BRAVUS pump, 1x Piezo button

Counter-current JET SWIM ATHLETE - 76 m3/h, 400 V, BRAVUS pump, 1x Piezo button

Counter-current JET SWIM ATHLETE - 76 m3/h, 400 V, BRAVUS pump, 1x Piezo button
Counter-current JET SWIM ATHLETE - 76 m3/h, 400 V, BRAVUS pump, 1x Piezo button
Counter-current JET SWIM ATHLETE - 76 m3/h, 400 V, BRAVUS pump, 1x Piezo button


Counter-current JET SWIM ATHLETE - 76 m3/h, 400 V, BRAVUS pump, 1x Piezo button

Description

Complete pool counter-current system with Pahlén Athlete stainless steel front panel. Compared to standard counter-current systems, it features an adjustable, specially shaped nozzle that directs the ... Read more
Product code: 30161812

  • JET SWIM ATHLETE Counter-Current System - 76 m3/h, 400 V, BRAVUS Pump, 1x Piezo Button

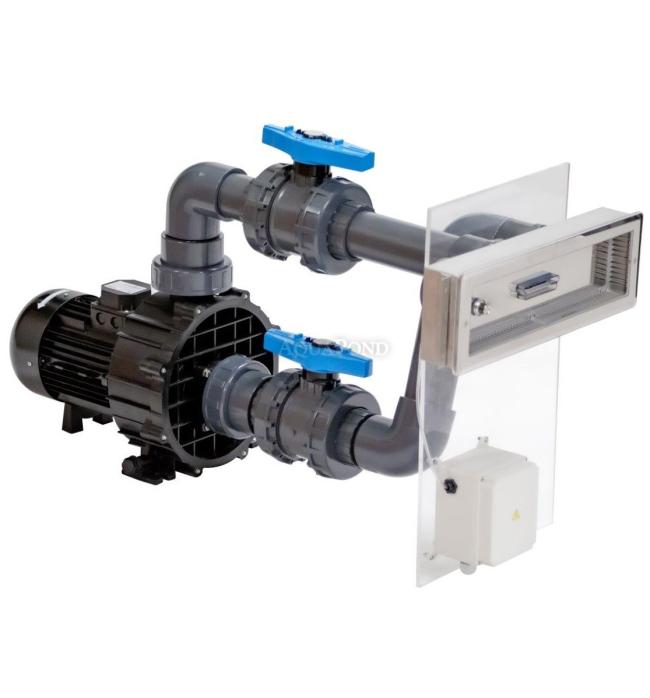

    Complete pool counter-current system with a stainless steel Pahlén Athlete front panel. Compared to standard counter-currents, it features an adjustable, specially shaped nozzle that directs the water flow in two directions. The front section includes a pneumatic on/off button, a rotary knob for adjusting the water flow, and the nozzle. Around the perimeter, there is plastic ribbing through which water is drawn into the pump.

    Benefits:

    • Front panel made of AISI 316L stainless steel
    • Two flat nozzles
    • Modern and minimalist design
    • 1x piezoelectric button
    • Connection 2½“ int.

    Specially Shaped Nozzle

    Standard counter-current systems contain one or more nozzles
    that direct the flow straight ahead. The Athlete counter-current has a nozzle
    divided into two parts. Its upper part sends the water flow straight
    ahead, while its lower part directs the flow more underneath you.

    Required Water Parameters

    • Total chlorine: max. 3.5 mg/l
    • pH value: 7.2 - 7.6
    • Alkalinity: 60 - 120 mg/l
    • Calcium content: 100 - 300 mg/l
    • Iron content: max. 0.1 mg/l
    • Copper content: max. 0.2 mg/l
    • Salt content: max. 0 mg/l

    Technical Parameters

    • Material: AISI 316L
    • Output: 3.0 kW
    • Material - visible part: Stainless steel
    • Voltage: 400 V
    • Connection (int.): 2 1/2 "in
    • Power input: 3.63 kW
    • Weight: 41.1 kg
    Kit Contents:  Item Name: Item ID:
    1. PVC pipe - 75 mm 0301607536
    2. Piezoelectric counter-current switch 6 - 10 A, 400 V 5205SP35P
    3. JET SWIM ATHLETE - pipe set + fittings 30160801
    4.

    Bravus 400T - 76 m3/h; 3 kW, 400V

    		 573BRA400
    5. JET SWIM ATHLETE stainless steel front panel 1x piezoelectric button 30160802

    Spare Parts List



    You can find the complete spare parts list here:

    Spare parts for Bravus 400 pump - 76 m3/h; 3 kW
