Counter-current K-JET Sena 66 m³/h, 400 V

Counter-current K-JET Sena 66 m³/h, 400 V
New

Counter-current K-JET Sena 66 m³/h, 400 V

Description

The pool counter-current system is suitable for all types of pools and is designed for installation in a chamber behind the pool. The device allows you to regulate the intensity of the water flow and air ... Read more
Product code: 30140663

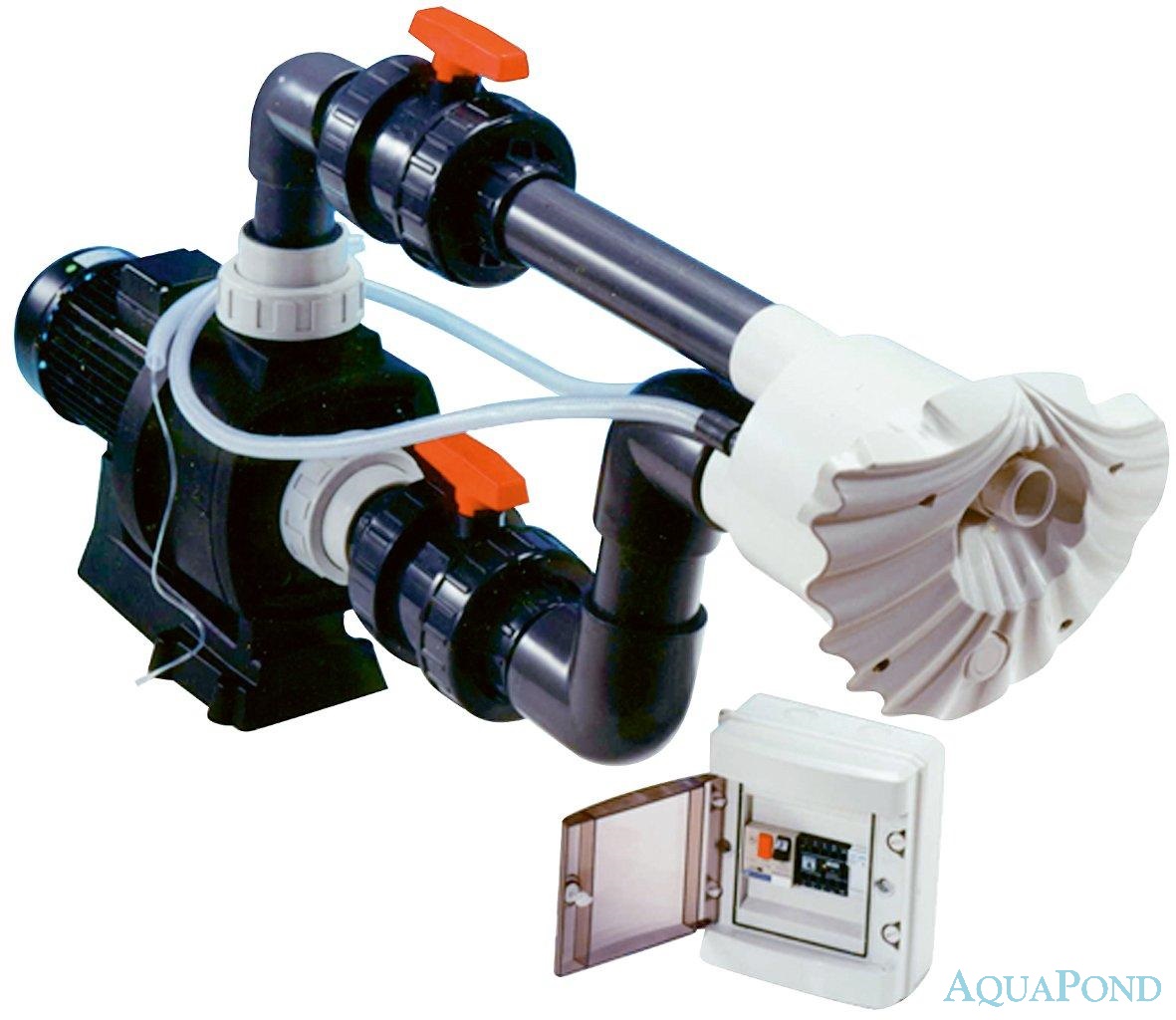

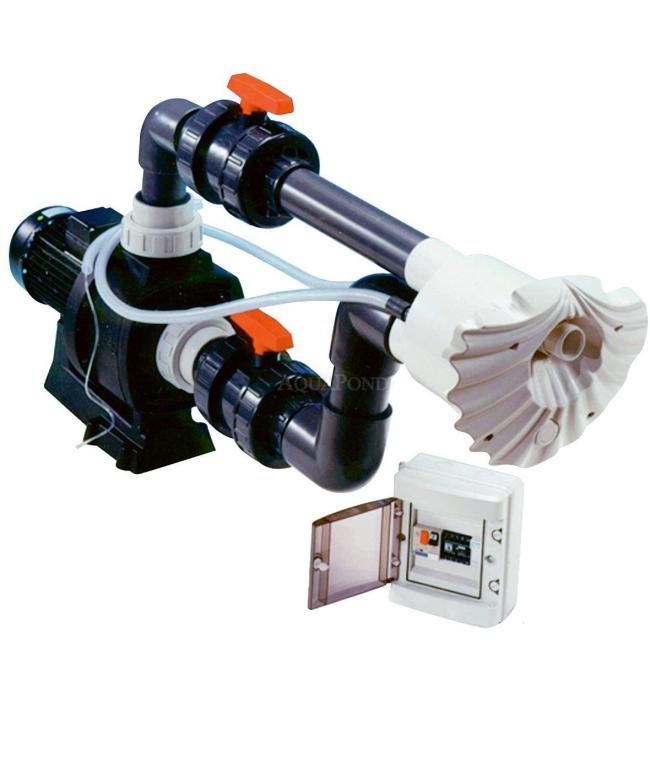

  • K-JET Sena Counter-Current System 66 m3/h, 400 V

    The pool counter-current system is suitable for all types of pools and is designed for installation in a shaft behind the pool. The unit allows you to adjust the water flow intensity and air suction, all on a direction-adjustable nozzle (40 mm diameter). The counter-current can be controlled using a pneumatic button. The nozzle, together with the suction and pneumatic switch, is located in the front cover of the unit.

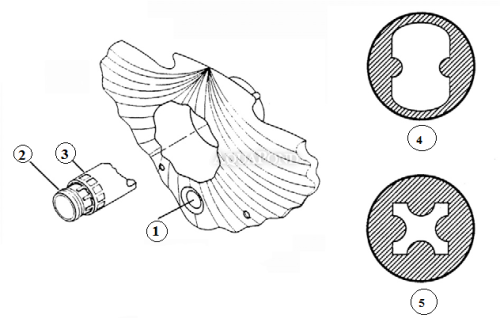

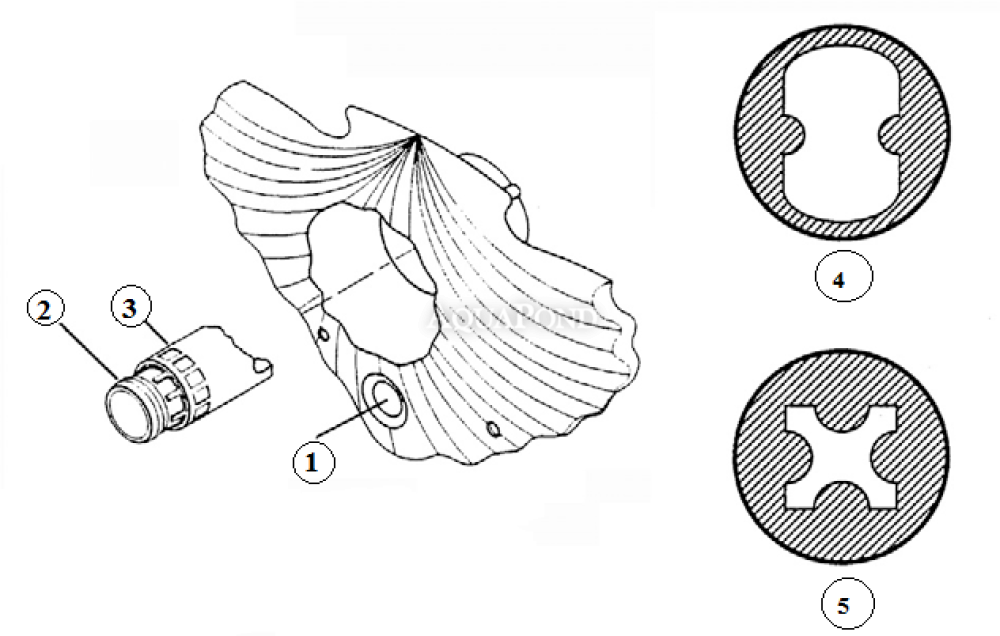

    1 Pneumatic on/off button
    2 Inner nozzle for regulating water flow
    3 Outer nozzle for regulating the amount of air suctioned in
    4 Maximum water flow is achieved by turning the inner nozzle to the left
    5 Conversely, the water flow is reduced by turning the inner nozzle to the right

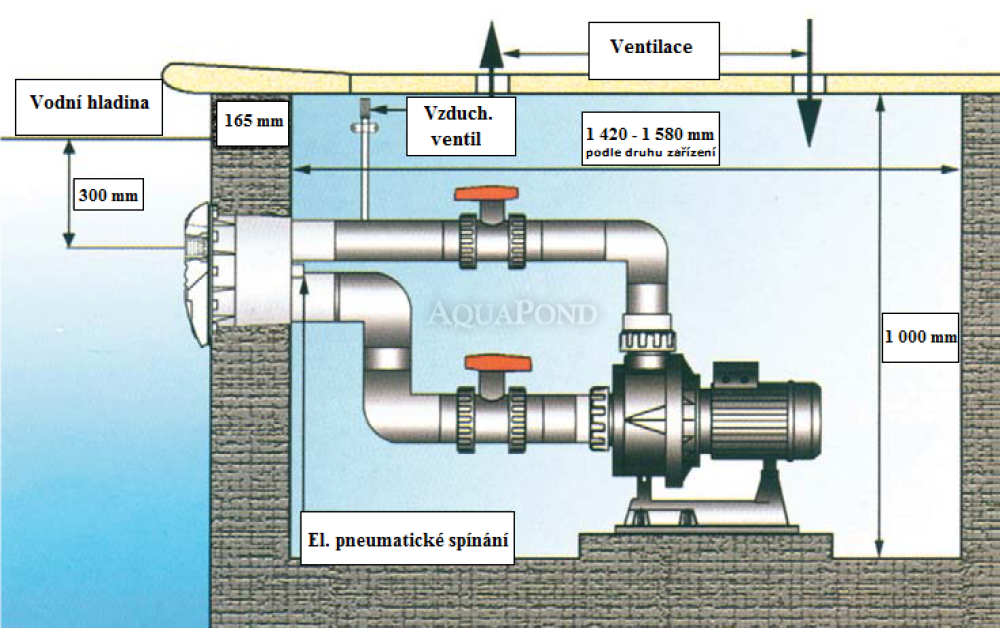

    Minimum Space Requirements for Installing the K-JET Unit

    Before installing the K-JET unit, it is essential to take into account the dimensions of the space where you want to place the counter-current system. Make sure in advance that you will not run into space limitations when installing the pump.

    Package Contents of the K-JET Sena Unit

    • Instructions
    • Counter-current nozzle 40 mm
    • Front panel
    • Counter-current pump
    • Electropneumatic switching with safety element
    • Air suction with hose
    • Connecting piping and valves

    Technical Specifications

    • Voltage: 400 V
    • Pump output: 66 m3/h
    • Power input: 2.4 kW

    Spare Parts List



    The complete list of spare parts can be found here:



    Spare Parts for the Front Panel of the K-JET Sena Counter-Current System



    Spare Parts New BCC 300T - 66m3/h - 400V
