Counter-current Pump New Contra 4T - 78 m3/h, 3.0 kW, 400 V
Counter-current Pump New Contra 4T - 78 m3/h, 3.0 kW, 400 V
Description
The New Contra counter-current pump represents a modern and highly innovative technological solution, specially designed for operating pool counter-currents, massage jets, and other water attractions. Read more
-
New Contra 4T Counter-Current Pump - 78 m3/h, 3.0 kW, 400 V
The New Contra counter-current pump is a modern and highly innovative technological solution specially designed for operating pool counter-currents, massage jets, and other water attractions. This pump stands out thanks to its robust all-plastic construction, which ensures exceptional resistance to the chemical effects of pool water, including salt water, while also guaranteeing a long service life for the entire unit without the risk of corrosion. The renowned Spanish manufacturer Bombas PSH placed extreme emphasis on uncompromising quality of the materials used and precise hydraulic engineering of the internal components when developing this product line. Thanks to this approach, the pump delivers consistently high flow and strong performance, which are essential for a fully enjoyable swimming-against-the-current experience, while still maintaining optimal energy consumption and relatively quiet operation. A major practical advantage for installation companies as well as end users is the rich standard equipment, as sturdy flange collars are included in the package. These allow for flexible, quick, and perfectly watertight connection of the pump to a piping system with a d75 or d90 diameter, significantly simplifying the overall installation, assembly, and connection to the pool circuit.
Advantages:
- High corrosion resistance: Thanks to the fully plastic housing, the pump easily withstands pool chemicals and is also ideal for saltwater pools.
- Premium Spanish quality: The manufacturer Bombas PSH has paid close attention to precise workmanship and the selection of first-class materials, ensuring a long service life for the entire unit.
- Top hydraulic performance: The optimized internal design ensures a strong and stable water flow, which is essential for a high-quality swimming and water-attraction experience.
- Energy efficiency and quiet operation: Despite its high performance, the pump operates efficiently and with a relatively low noise level.
- Complete installation package: Flange collars are included in the delivery, making pipe connection easier and saving the cost of purchasing additional accessories.
- Versatile use: It is perfectly suited not only for classic counter-currents, but also for massage jets, water spouts, and other modern pool attractions.
Package Contents
- pump
- connecting flange collars
- seals
- manual

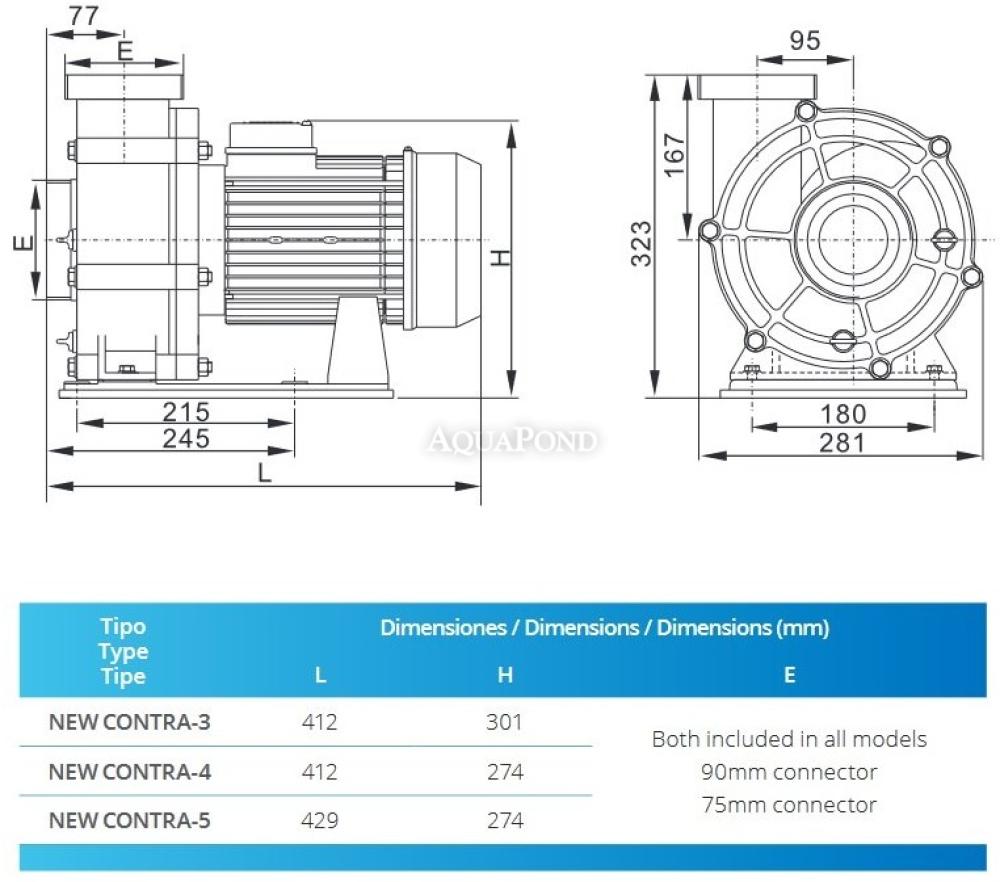

Technical Parameters
- Voltage: 400 V
- Pump body: Polypropylene + 30% glass fiber (GF)
- Impeller: Polyamide (PA66)
- Shaft: Stainless steel AISI 316
- Mechanical seal: Carbon + resin ceramic
- Suction / discharge connection - glued: 75 / 90 mm
- Protection: IP 55
- Power: 2.2 kW
- Speed: 2900 rpm / 50 Hz
- Flow rate: 78 m3 / h
- Input power: 3.0 kW
- Maximum water temperature: 40°C
- Thermal protection included in single-phase models
-
