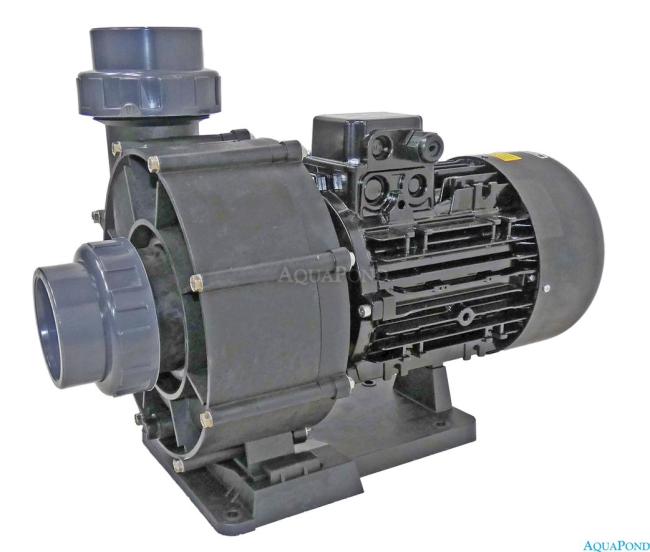

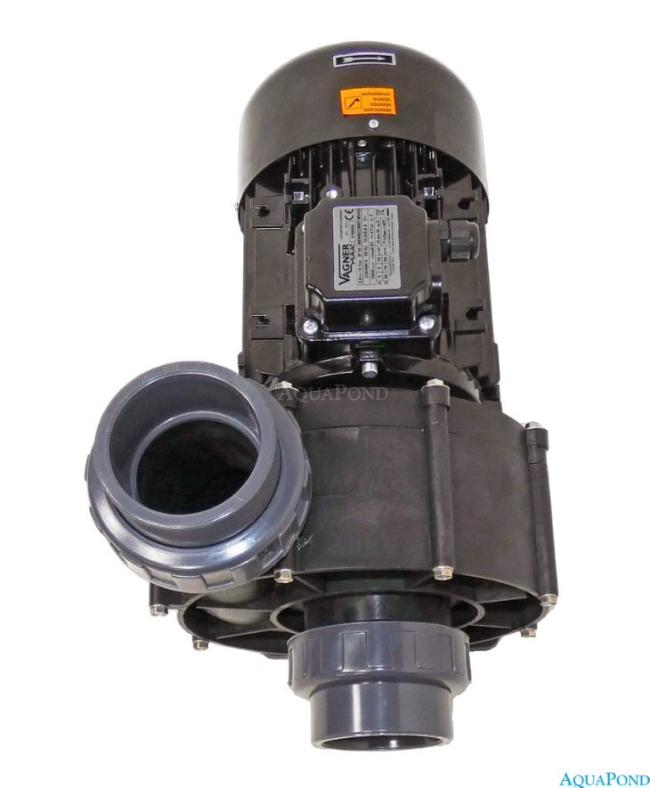

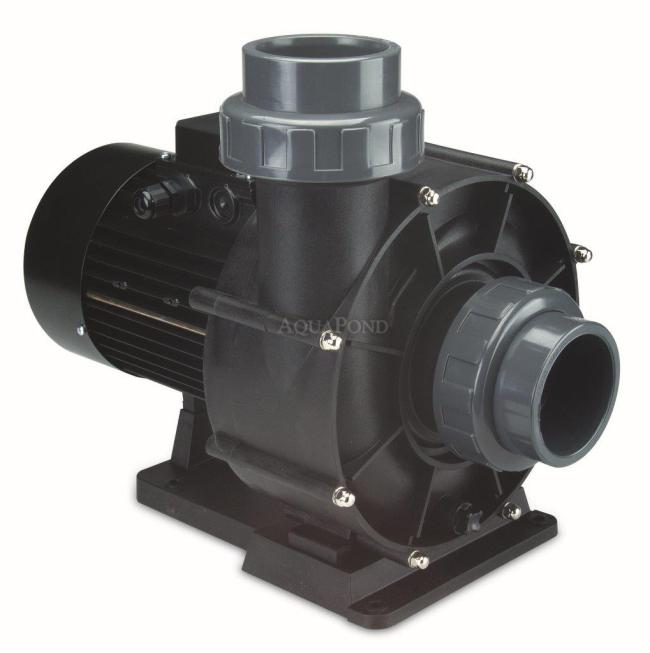

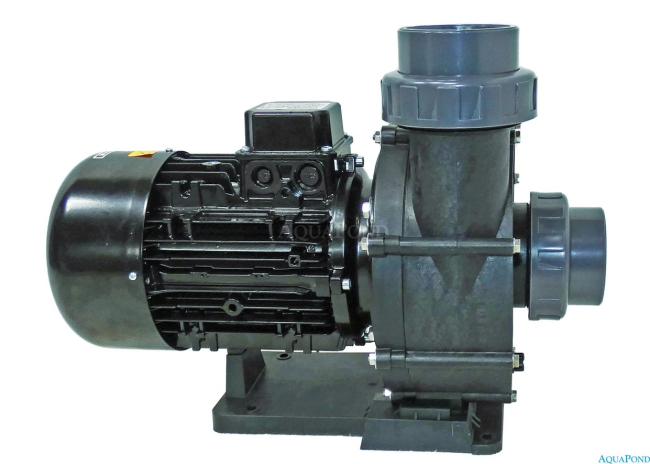

Counter-current Pump New BCC 550T - 84 m3/h - 400 V

Description

Especially suitable for counter-current systems, it can also be used as a circulation pump for water attractions (spouts, etc.). The pump is suitable for use in pools with fresh, salt, and seawater. Read more

Product code: 300791

Description
Related products

New BCC 550T Counter-Current Pump - 84 m3 / h - 400 V

Counter-current for the pool is a very good choice if you want to make full use of your pool. Swimming is very popular and healthy, so it would be a shame not to use your pool for this sport.
Counter-currents are mainly intended for smaller pools (approx. 5-10 m long with a minimum width of 2.5 m), but they can certainly also be used in larger ones.
The main division of counter-currents is based on the method of installation, namely wall-mounted and built-in. Wall-mounted counter-currents are an additional solution or are used for above-ground pools. Built-in counter-currents can be chosen for any type of pool and are significantly cheaper than purchasing a wall-mounted unit separately.
The output of counter-currents is usually stated in m³ / h.

NEWBCC pumps are characterized by a high-quality polypropylene construction with a 30% glass fiber blend. The NEWBCC pump can also be used for saltwater and seawater pools.

Package Contents

pump
flange set
manual

Technical Parameters

Voltage: 400 V
Suction / discharge connection - glued: 75 / 75 mm
Motor protection: IP 55
Power: 4 kW
Speed: 2850 rpm
Flow rate: 84 m³ / h
Input power: 4.7 kW
Noise level: 74-79 dB
For seawater: Yes
Impeller material: Plastic - Noryl
Max. operating pressure: 3 bar
For saltwater up to 5 g / l (<0.5%): Yes
Pump placement: must be installed below water level
Maximum water temperature: 60°C
Use: Suitable for fresh and saltwater with a salt concentration up to 5 g/l, as well as for seawater with a salt concentration above 5 g/l
For saltwater up to 5 g / l ( < 0.5 % ): Yes
For seawater above 5 g/l (>0.5%): Yes
Weight: 27.43 kg
