Counter-current Pump New BCC 300T 66 m³/h 400 V
Counter-current Pump New BCC 300T 66 m³/h 400 V
Description
Especially suitable for counter-current systems, it can also be used as a circulation pump for water attractions (spouts, etc.). The pump is suitable for use in pools with fresh, salt, and seawater. Read more
-
Counter-Current Pump New BCC 300T 66 m3 / h 400 V
A counter-current system for a pool is a very good choice if you want to make full use of your pool. Swimming is very popular and healthy, so it would be a shame not to use your pool for this sport.
Counter-current systems are mainly designed for smaller pools (approx. 5–10 m long with a minimum width of 2.5 m), but they will certainly also find use in larger pools.
The main division of counter-current systems is based on the installation method: hanging and built-in. Hanging counter-current systems are an additional solution or are used for above-ground pools. Built-in counter-current systems can be chosen for any type of pool and are significantly cheaper than buying a hanging unit separately.
The output of counter-current systems is usually stated in m3 / h.NEWBCC pumps are characterized by a high-quality polypropylene construction with a 30% fiberglass content. The NEWBCC pump can be used for both saltwater pools and seawater.
Package Contents
- pump
- 75 mm connecting fittings
Technical Parameters
- Voltage: 400 V
- Suction / discharge connection - glued: 75 / 75 mm
- Motor protection: IP 55
- Power: 2.2 kW
- Speed: 2850 rpm
- Flow rate: 66 m3 / h
- Input power: 2.6 kW
- Noise level: 74-79 dB
- For seawater: Yes
- Impeller material: Plastic - Noryl
- Max. working pressure: 3 bar
- For salt water up to 5 g / l (<0.5%): Yes
- Pump placement: must be below the water level
- Maximum water temperature: 60°C
- Use: Suitable for fresh and salt water with a salt concentration of up to 5 g/l, as well as for seawater with a salt concentration above 5 g/l
- For salt water up to 5 g / l ( < 0.5 % ): Yes
- For seawater above 5 g/l (>0.5%): Yes
- Weight: 22.42 kg

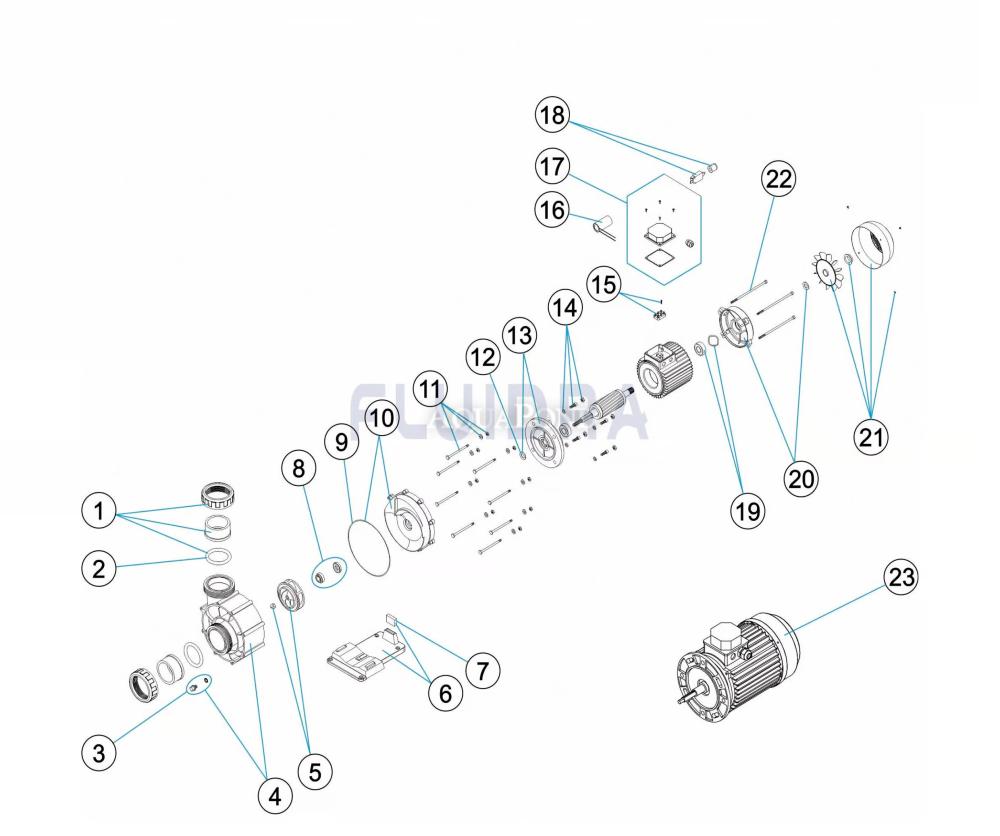

Spare Parts List
The complete list of spare parts can be found here:
Spare Parts New BCC 300T - 66m3/h - 400V
Spare Parts List
The complete list of spare parts can be found here:
Spare Parts for New BCC 300T Pump - 66m3/h - 400V (2023)
-
