Counter-current JET SWIM ATHLETE, 74 m3/h, 400V, BRAVUS pump, pneumatic button

Counter-current JET SWIM ATHLETE, 74 m3/h, 400V, BRAVUS pump, pneumatic button

Counter-current JET SWIM ATHLETE, 74 m3/h, 400V, BRAVUS pump, pneumatic button
Counter-current JET SWIM ATHLETE, 74 m3/h, 400V, BRAVUS pump, pneumatic button


Counter-current JET SWIM ATHLETE, 74 m3/h, 400V, BRAVUS pump, pneumatic button

Description

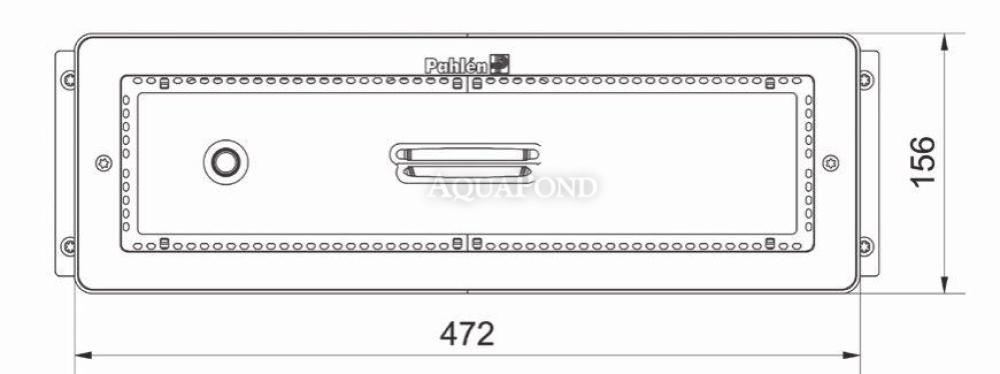

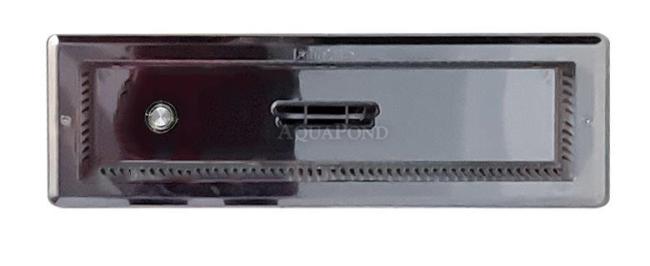

Front panel made of AISI 316L stainless steel. Read more
Product code: 30160812

    JET SWIM ATHLETE Counter-Current System, 74 m3 / h, 400V, BRAVUS Pump, Pneumatic Button

    The counter-current system with a front panel made of AISI 316 stainless steel is suitable for all types of pools – liner, concrete, and prefabricated. It comes standard with a powerful BRAVUS pump.

    The front panel features two oval nozzles that ensure an even water flow. The lower nozzle is angled downward, lifting the swimmer’s lower body and contributing to a more natural swimming feel. This design also increases efficiency and comfort during swimming training.

    Advantages:

    • Front panel made of AISI 316L stainless steel
    • Two flat nozzles
    • Adjustable flow rate
    • Modern and minimalist design
    • Pneumatic button
    • Connection 2½“ int.

    Specially Shaped Nozzle

    Standard counter-current systems include one or more nozzles
    that direct the water straight forward. The Athlete counter-current has a nozzle
    divided into two parts. Its upper part sends the water flow straight
    forward, while its lower part directs the flow more underneath you.

    Required Water Parameters

    • Total chlorine: max. 3.5 mg / l
    • pH value: 7.2 - 7.6
    • Alkalinity: 60 - 120 mg / l
    • Calcium content: 100 - 300 mg/l
    • Iron content: max. 0.1 mg / l
    • Copper content: max. 0.2 mg / l
    • Salt content: max. 0 mg / l

    Technical Parameters

    • Material: AISI 316L
    • Power: 3.0 kW
    • Voltage: 400 V
    • Connection (int.): 2 1/2 "in
    • Input power: 3.5 kW
    • Weight: 28 kg

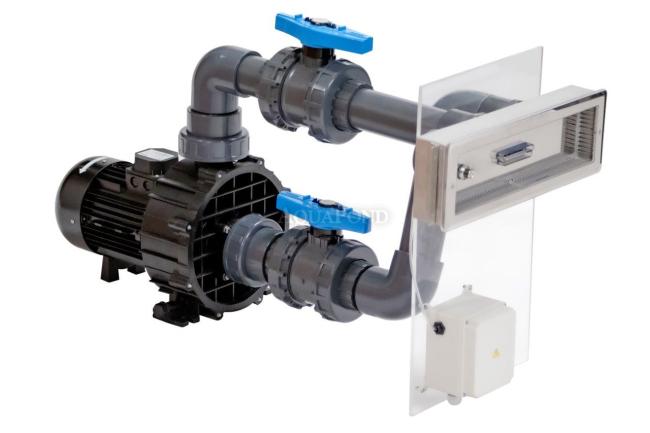

    Kit breakdown:  Item name: Item ID:
    1. PVC pipe - 75 mm 0301607536
    2. BRAVUS pump  - 76 m3 / h, 3 kW, 400 V 573BRA400
    3. Electrical control-switching for counter-current 6-10 A, IP65, pressure switch; 2.5 - 4.5 kW 5205SP35
    4. JET SWIM ATHLETE - pipe set + fittings 30160801
    5. JET SWIM ATHLETE stainless steel front panel 30160800

    Spare Parts List

    You can find the complete spare parts list here:



    Spare Parts for the JET SWIM ATHLETE Stainless Steel Front Panel
