Counter-current JET SWIM ATHLETE - 66 m3/h, 400 V, BRAVUS pump, 1x Piezo button

Description

Complete pool counter-current system with stainless steel front panel Pahlén Athlete. Compared to classic counter-current systems, it features an adjustable, specially shaped nozzle that directs the water ... Read more

Product code: 30161811

Description
Related products

JET SWIM ATHLETE Counter-Current System - 66 m3/h, 400 V, BRAVUS Pump, 1x Piezo Button

Complete pool counter-current system with a stainless steel Pahlén Athlete faceplate. Compared to standard counter-current systems, it features an adjustable, specially shaped nozzle that directs the water flow in two directions. The front section includes a pneumatic on/off button, a rotary knob for adjusting the water flow, and the nozzle. Around the perimeter, there is plastic ribbing that draws water into the pump.

Benefits:

Faceplate made of AISI 316L stainless steel
Two flat nozzles
Modern and minimalist design
1x piezoelectric button
Connection 2½“ int.

Specially Shaped Nozzle

Standard counter-current systems include one or more nozzles,
which direct the flow straight ahead. The Athlete counter-current system has a nozzle
divided into two parts. Its upper part sends the water flow straight
ahead, while its lower part directs the flow more beneath you.

Required Water Parameters

Total chlorine: max. 3.5 mg/l
pH value: 7.2 - 7.6
Alkalinity: 60 - 120 mg/l
Calcium content: 100 - 300 mg/l
Iron content: max. 0.1 mg/l
Copper content: max. 0.2 mg/l
Salt content: max. 0 mg/l

Technical Specifications

Material: AISI 316L
Power: 2.2 kW
Material - visible part: Stainless steel
Voltage: 400 V
Connection (int.): 2 1/2 "in
Input power: 2.72 kW
Weight: 36.1 kg

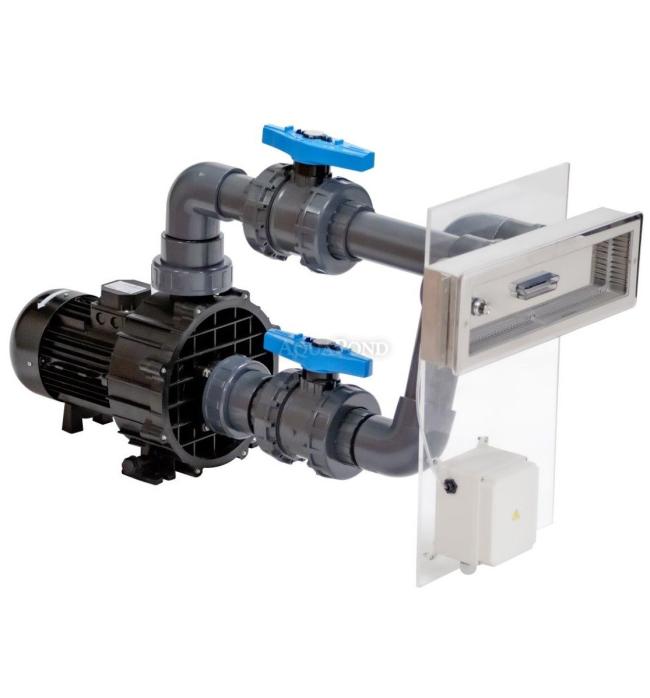

Kit Contents:	Item Name:	Item ID:
1.	PVC pipe - 75 mm	0301607536
2.	Piezoelectric counter-current switch 4 - 6.3 A, 400 V	5205SP34P
3.	JET SWIM ATHLETE - pipe set + fittings	30160801
4.	Bravus 300T - 66 m3/h; 2.2 kW, 400V	573BRA300
5.	JET SWIM ATHLETE stainless steel front panel 1x piezoelectric button	30160802
