Counter-current V-JET 66 m3/h, 400 V, 2.2 kW, for liner and prefabricated pools, pipe Ø 75 mm
Counter-current V-JET 66 m3/h, 400 V, 2.2 kW, for liner and prefabricated pools, pipe Ø 75 mm
Description
Built-in counter-current system V-JET 66 m3/h (400V). Read more
Product code: 30122513
-

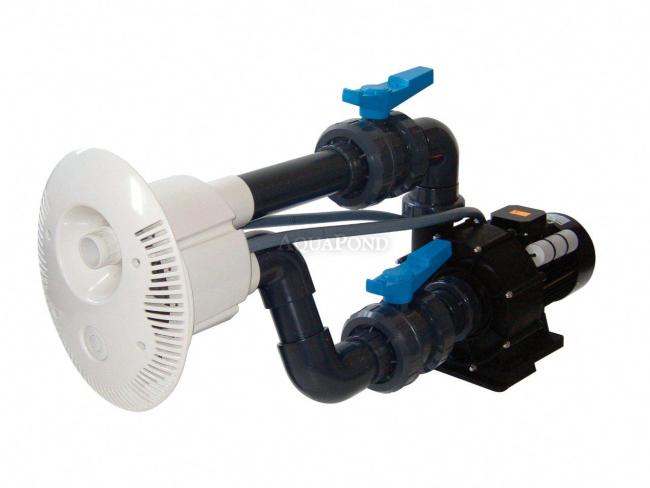

V-JET Counter-Current System 66 m3 / h, 400 V, 2.2 kW, for liner and preformed pools, pipe Ø 75 mm

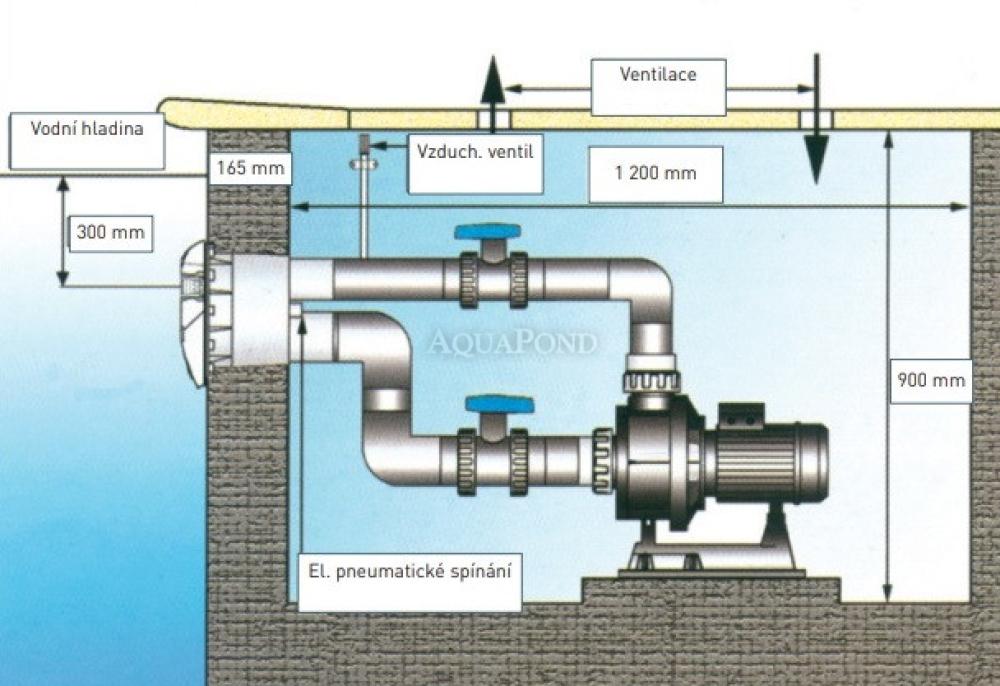

This built-in counter-current system is preconfigured for very easy installation. The unit allows you to regulate the water flow intensity and air suction, all through a 40 mm nozzle that is also direction-adjustable. This nozzle, together with the suction inlet and pneumatic switch, is located in the front cover of the unit.
The complete V-JET counter-current system includes:
- 40 mm counter-current nozzle (water-air adjustment)
- Front panel - attractive design
- Pool wall fitting

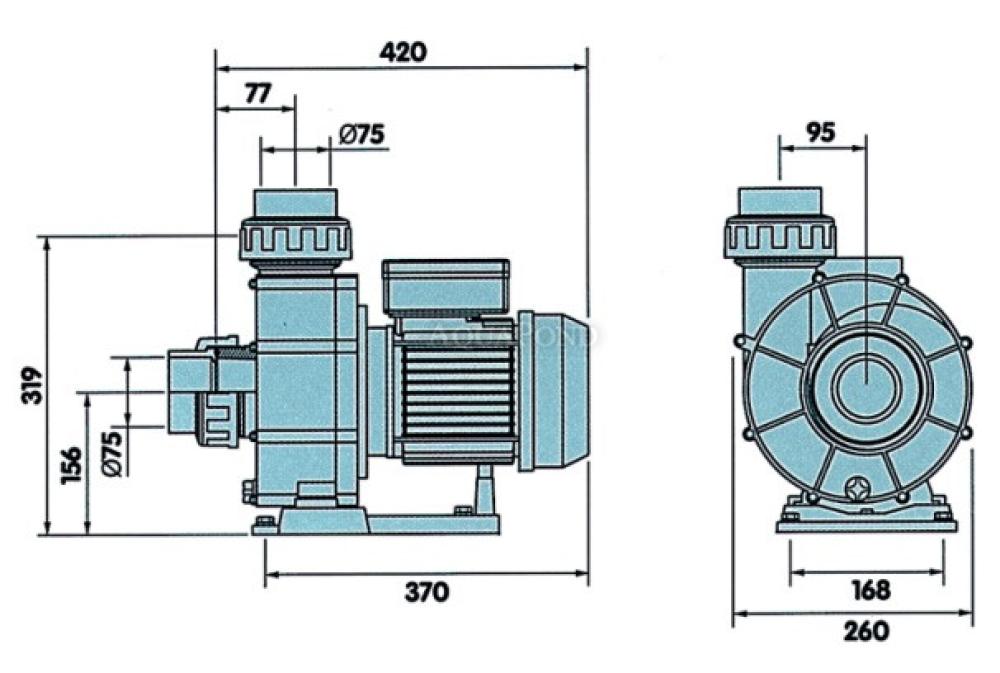

- Pump – several power options
- Electropneumatic switching with safety element
- PVC fittings

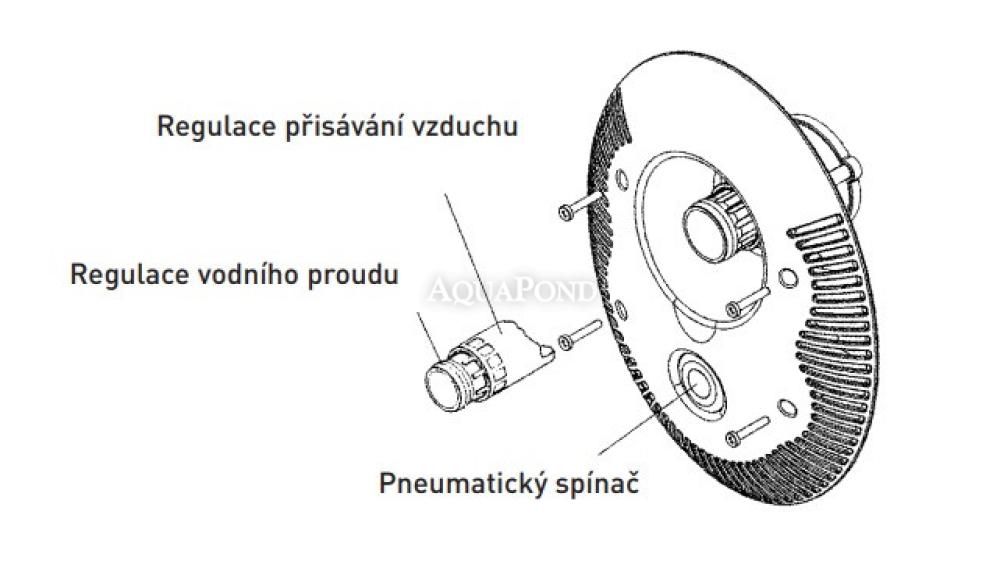

- Pneumatic on/off button

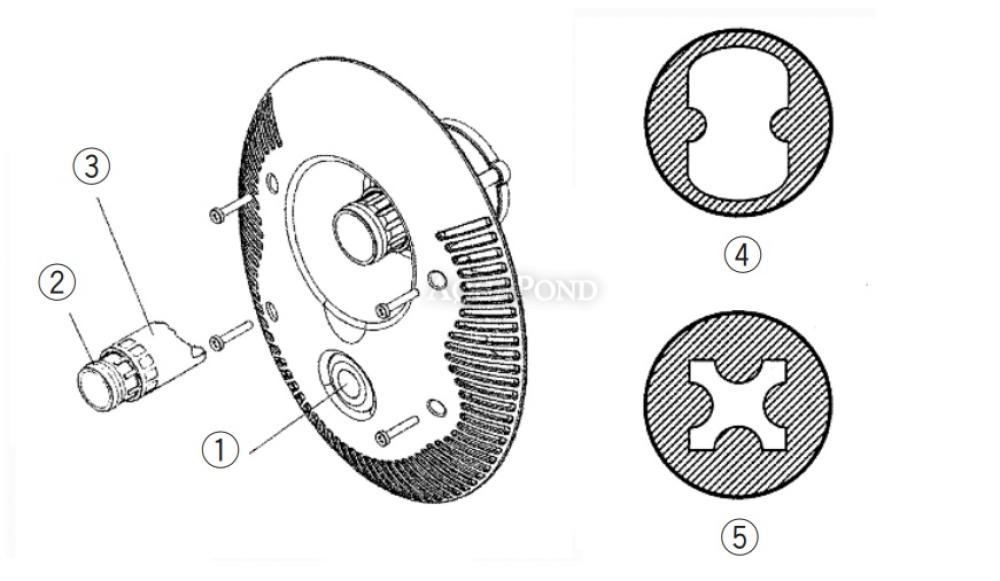

- Internal nozzle for water flow adjustment
- External nozzle for adjusting the amount of suctioned air
- Maximum water flow is achieved by turning the internal nozzle to the left
- Water flow is reduced by turning the internal nozzle to the right
Included in the complete V-JET counter-current system

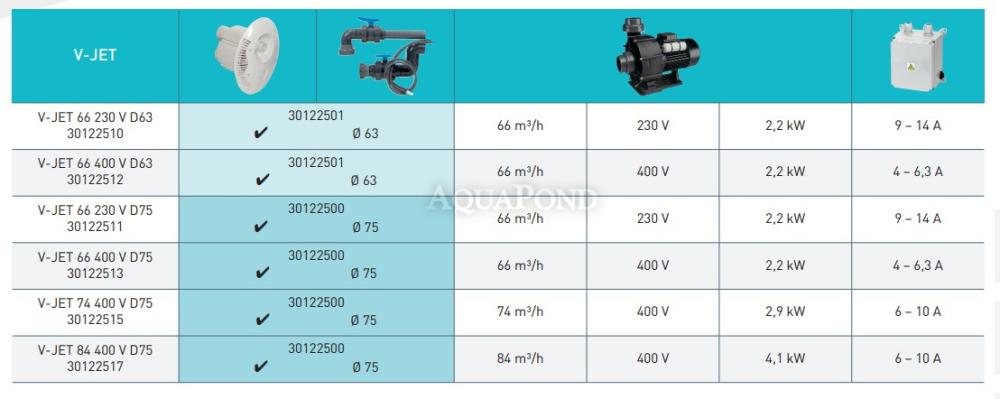

Technical specifications
- Max. flow rate: 66 m3 / h
- Voltage: 400 V
- Power input: 2.2 kW
- Connection: 75 mm
- Weight: 37.8 kg
Spare Parts List
You can find the complete list of spare parts here:
Spare parts for the counter-current front panel + wall fitting V-JET
-
