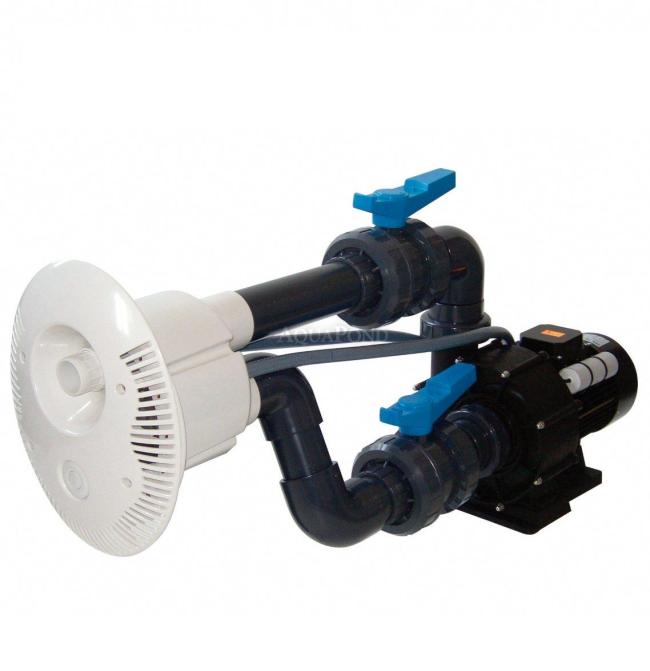

Counter-current V-JET 66 m3/h, 230 V, 2.2 kW, for liner and prefabricated pool piping Ø 75 mm


Counter-current V-JET 66 m3/h, 230 V, 2.2 kW, for liner and prefabricated pool piping Ø 75 mm

Description

This built-in counter-current system is pre-prepared for very easy installation. Read more
Product code: 30122511

  • Counter-Current V-JET 66 m3/h, 230 V, 2.2 kW, for liner and prefabricated pool pipe Ø 75 mm

    This built-in counter-current unit is pre-prepared for very easy installation. The device allows you to adjust the water flow intensity and air suction, all on a nozzle with a diameter of 40 mm, which is also directionally adjustable. This nozzle, together with the suction and pneumatic switch, is located in the front cover of the unit.

    The complete V-JET counter-current system includes:

    • 40 mm counter-current nozzle (water-air adjustment)
    • Front panel - attractive design
    • Pool wall fitting
    • Pump – several power outputs
    • Electropneumatic switching with safety element
    • PVC fittings
    Photogallery
    1. Pneumatic on/off button
    2. Internal nozzle for water flow adjustment
    3. External nozzle for adjusting the amount of air suctioned in
    4. Maximum water flow is achieved by turning the internal nozzle to the left
    5. Water flow is reduced by turning the internal nozzle to the right
    Included in the complete V-JET counter-current system
    Photogallery

    Technical parameters

    • Max. flow rate: 66 m3 / h
    • Voltage: 230 V
    • Power input: 2.2 kW
    • Connection: 75 mm
    • Weight: 32.8 kg
    Photogallery
    Photogallery
    Photogallery

    Spare Parts List



    You can find the complete list of spare parts here:



    Spare parts for counter-current front panel + wall fitting V-JET



    Spare parts New BCC 300M - 66m3/h -230V
