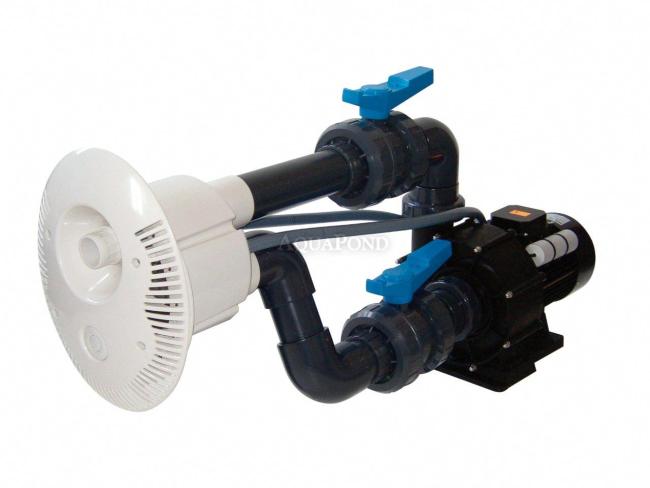

Counter-current V-JET 66 m³/h, 230V, 2.2 kW, for liner and prefabricated pools, fittings and piping Ø 63 mm
Counter-current V-JET 66 m³/h, 230V, 2.2 kW, for liner and prefabricated pools, fittings and piping Ø 63 mm
Description
Built-in counter-current system V- JET 66 m3/h (230V). Read more
Product code: 30122510
-
V-JET Counter-Current System 66 m3/h, 230V, 2.2 kW, for Liner and Prefabricated Pools, Fittings and Piping Ø 63 mm
Suitable for all types of pools, pre-prepared for very easy installation, with adjustable water flow intensity and air suction, the counter-current nozzle is directionally adjustable, the electro-pneumatic switch for controlling the counter-current is located on the front cover of the unit, and the complete unit includes: 40 mm counter-current nozzle (water-air adjustment), front panel, pool wall fitting, pump, electro-pneumatic control with safety insert, PVC installation components.
Technical Parameters:
- Voltage: 230 V
- Power input: 2.2 kW
- Flow rate: 66 m3/h
- Weight: 35 kg
- Pipe diameter: 63 mm
List of Spare Parts
The complete list of spare parts can be found here:
Spare Parts for Counter-Current Front Panel + Wall Fitting V-JET
Features
pneumatic button for switching on and off internal nozzle for regulating the water flow internal nozzle for regulating the amount of sucked-in air maximum water flow is achieved by turning the internal nozzle to the left on the other hand, you can reduce the water flow by turning the internal nozzle to the right
