Counter-current JET SWIM ATHLETE - 84 m3/h, 400 V, BRAVUS pump, pneumatic button

Description

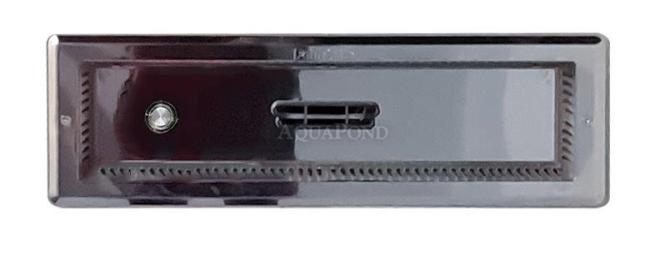

Front panel made of AISI 316L stainless steel. Read more

Product code: 30160813

Description
Related products

JET SWIM ATHLETE Counter-Current System - 84 m3 / h, 400 V, BRAVUS Pump, Pneumatic Button

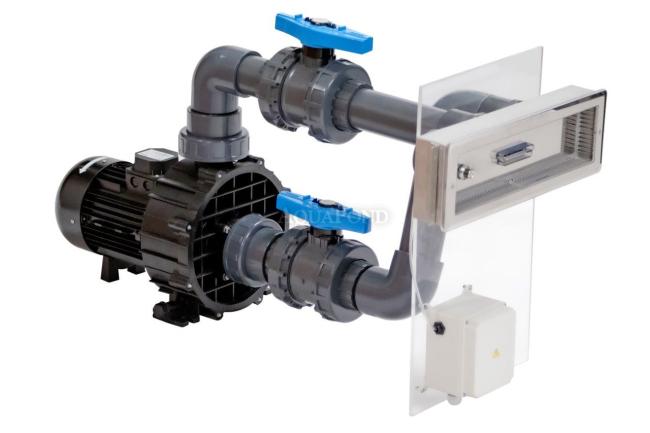

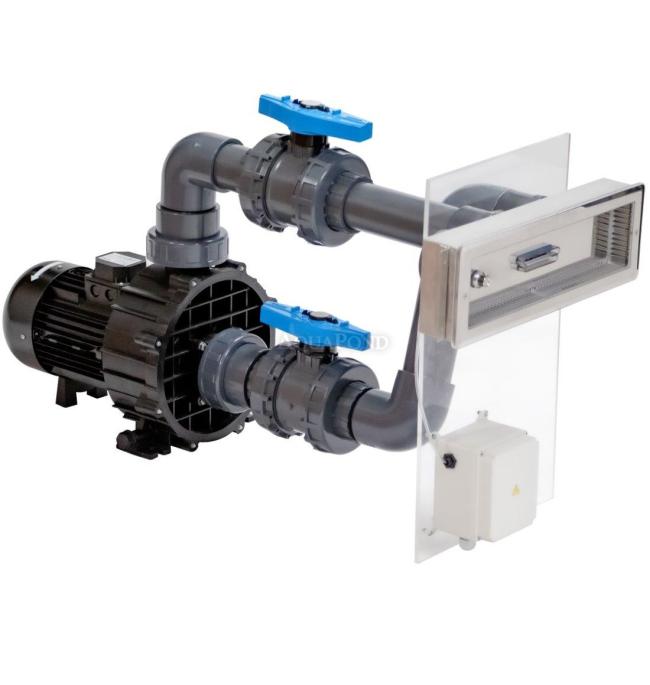

Complete pool counter-current system with a stainless steel Pahlén Athlete front panel. Compared with standard counter-current systems, it features an adjustable, specially shaped nozzle that directs the water flow in two directions. The front panel includes a pneumatic on/off button, a rotary knob for adjusting the water flow, and a nozzle. Around the perimeter, there is plastic ribbing through which water is drawn into the pump.

Benefits:

Front panel made of AISI 316L stainless steel
Two flat nozzles
Adjustable flow rate
Modern and minimalist design
Pneumatic button
Connection 2½“ int.

Specially Shaped Nozzle

Standard counter-current systems contain one or more nozzles,
which direct the flow straight ahead. The Athlete counter-current system has a nozzle
divided into two parts. Its upper part sends the water flow straight
ahead, while its lower part directs the flow more underneath you.

Required Water Parameters

Total chlorine: max. 3.5 mg / l
pH value: 7.2 - 7.6
Alkalinity: 60 - 120 mg / l
Calcium content: 100 - 300 mg / l
Iron content: max. 0.1 mg / l
Copper content: max. 0.2 mg / l
Salt content: max. 0 mg / l

Technical Parameters

Material: AISI 316L
Power: 4.1 kW
Voltage: 400 V
Connection (int.): 2 1/2 "in
Input power: 4.7 kW
Weight: 30.35 kg

Set breakdown:	Item name:	Item ID:
1.	PVC pipe - 75 mm	0301607536
2.	Bravus 550T pump - 84 m3 / h; 4 kW, 400V	573BRA550
3.	Electric counter-current control/switching unit 6-10 A, IP65, pressure switch; 2.5 - 4.5 kW	5205SP35
4.	JET SWIM ATHLETE - pipe set + fittings	30160801
5.	JET SWIM ATHLETE stainless steel front panel	30160800
