Counter-current JET SWIM ATHLETE - 84 m3/h, 400 V, BRAVUS pump, 1x piezo button

Description

Complete pool counter-current system with stainless steel Pahlén Athlete front panel. Compared to standard counter-current systems, it features an adjustable, specially shaped nozzle that directs the ... Read more

Product code: 30161813

Description
Related products

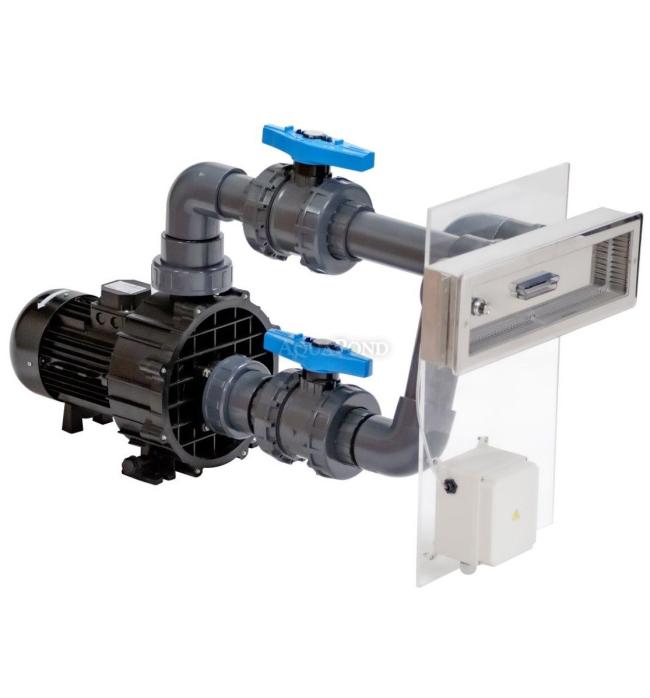

JET SWIM ATHLETE Counter-Current System - 84 m3/h, 400 V, BRAVUS Pump, 1x Piezo Button

Complete pool counter-current system with a stainless steel Pahlén Athlete faceplate. Compared to standard counter-current systems, it features an adjustable, specially shaped nozzle that directs the water flow in two directions. The front panel includes a pneumatic on/off button, a rotary knob for flow adjustment, and a nozzle. Around the perimeter, there is plastic ribbing through which water is drawn into the pump.

Benefits:

Faceplate made of AISI 316L stainless steel
Two flat nozzles
Modern and minimalist design
1x piezoelectric button
Connection 2½“ int.

Specially Shaped Nozzle

Standard counter-current systems include one or more nozzles,
which direct the flow straight ahead. The Athlete counter-current system has a nozzle
divided into two parts. Its upper part sends the water flow straight
ahead, while its lower part directs the flow more underneath you.

Required Water Parameters

Total chlorine: max. 3.5 mg/l
pH value: 7.2 - 7.6
Alkalinity: 60 - 120 mg/l
Calcium content: 100 - 300 mg/l
Iron content: max. 0.1 mg/l
Copper content: max. 0.2 mg/l
Salt content: max. 0 mg/l

Technical Parameters

Material: AISI 316L
Output: 4.0 kW
Material - visible part: Stainless steel
Voltage: 400 V
Connection (int.): 2 1/2 "in
Power input: 4.75 kW
Weight: 53.1 kg

Kit breakdown:	Item name:	Item ID:
1.	PVC pipe - 75 mm	0301607536
2.	Piezoelectric counter-current switch 6 - 10 A, 400 V	5205SP35P
3.	JET SWIM ATHLETE - piping set + fittings	30160801
4.	Bravus 550T - 84 m3/h; 4 kW, 400V	573BRA400
5.	JET SWIM ATHLETE stainless steel front panel 1x piezoelectric button	30160802
