Counter-current JET SWIM ATHLETE - 84 m3 / h, 400 V, BRAVUS pump, 3x Piezo button

Jet Swim Athlete is a premium, top-of-the-line complete pool counter-current system designed specifically for swimming enthusiasts and those looking for the ultimate experience. It is equipped with a powerful, reliable Bravus pump and three convenient piezo buttons operating at 400 V. The main component of the unit is the stylish and durable Pahlén Athlete stainless steel front panel, which not only gives the pool an elegant look but also makes it exceptionally resistant to external influences. Unlike traditional counter-current models, this type features an adjustable, specially shaped nozzle that directs the water flow. Thanks to this special design, the water jet can be precisely directed, ensuring a smooth, natural, and long-lasting swimming experience even during the most intense workouts. User comfort is further enhanced by three piezo buttons located on the front, allowing the system to be controlled directly from the pool, easily and safely. In addition, the precisely shaped front section includes a surrounding plastic ribbing that efficiently ensures water supply: water flows through this ribbing into the Bravus pump, guaranteeing smooth and continuous system circulation. This comprehensive and modern counter-current system is the perfect choice for anyone who wants to take their home pool to the level of a professional training center, whether for fitness swimming or a pleasant, relaxing water massage.

Advantages:

• Front panel made of AISI 316L stainless steel
• Two flat nozzles
• Modern and minimalist design
• 3x piezoelectric button
• Connection 2½“ int.

Specially Shaped Nozzle Standard counter-current systems contain one or more nozzles that direct the flow straight ahead. The Athlete counter-current has a nozzle divided into two parts. Its upper part sends the water flow straight ahead, while its lower part directs the flow more beneath you.

Required Water Parameters

• Total chlorine: max. 3.5 mg / l
• pH value: 7.2 - 7.6
• Alkalinity: 60 - 120 mg / l
• Calcium content: 100 - 300 mg/l
• Iron content: max. 0.1 mg / l
• Copper content: max. 0.2 mg / l
• Salt content: max. 0 mg / l

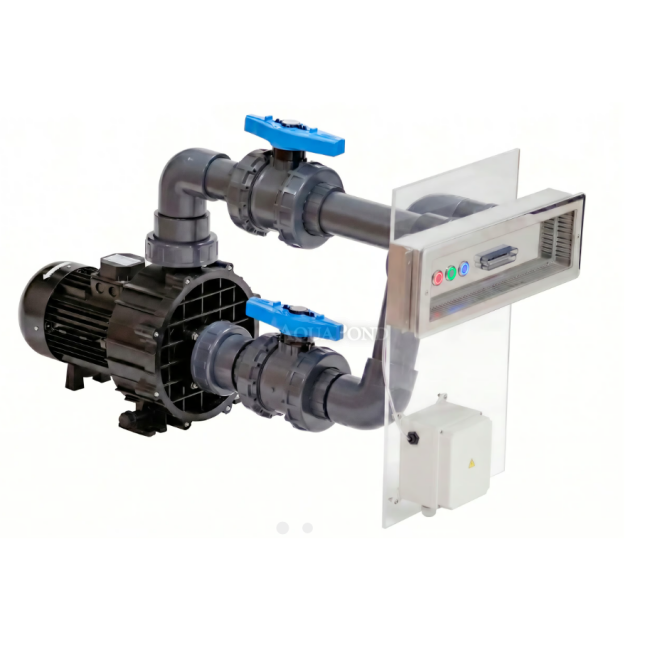

Set Contents

• PVC pipe - 75 mm
• JET SWIM ATHLETE - valve + fitting set
• Bravus 550T - 84 m³ / h; 4 kW, 400 V
• OPTIDRIVE E3 frequency converter - 4.0 kW; 9.5 A; 3x 400 V / 3x 400 V; IP66
• JET SWIM ATHLETE stainless steel front panel 3x piezoelectric button
• PP control with 4 kW frequency converter
