Counter-current JET SWIM ATHLETE - 76 m3 / h, 400 V, BRAVUS pump, 3x Piezo button
Counter-current JET SWIM ATHLETE - 76 m3 / h, 400 V, BRAVUS pump, 3x Piezo button
Description
Complete pool counter-current system with stainless steel Pahlén Athlete front panel. Compared to standard counter-current systems, it features an adjustable, specially shaped nozzle that directs the ... Read more
-
Counter-current JET SWIM ATHLETE - 76 m3 / h, 400 V, BRAVUS pump, 3x Piezo button

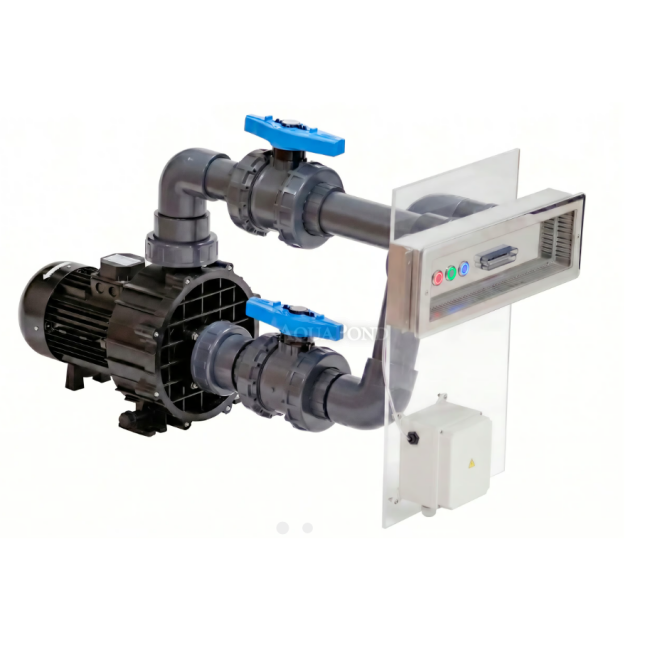

Jet Swim Athlete is a premium, top-of-the-line complete pool counter-current system designed especially for swimming enthusiasts and those looking for the ultimate experience. It is equipped with a powerful, reliable Bravus pump and three convenient piezo buttons operating on 400 V. The main feature of the unit is the stylish and durable Pahlén Athlete stainless steel front panel, which not only gives the pool an elegant look but also makes it exceptionally resistant to external influences. Unlike traditional counter-current models, this type features an adjustable, specially shaped nozzle that directs the water flow. Thanks to this special design, the water jet can be precisely aimed, ensuring a smooth, natural, and long-lasting swimming experience even during the most intense training sessions. User comfort is further enhanced by three piezo buttons located on the front, allowing the system to be controlled directly from the pool, easily and safely. In addition, the precisely shaped front section includes a peripheral plastic ribbing that efficiently ensures water supply: water flows through this ribbing to the Bravus pump, guaranteeing smooth and continuous system circulation. This comprehensive and modern counter-current system is the perfect choice for anyone who wants to take their home pool to the level of a professional training center, whether for fitness swimming or a pleasant, relaxing water massage.
Advantages:
- Front panel made of AISI 316L stainless steel
- Two flat nozzles
- Modern and minimalist design
- 3x piezoelectric button
- Connection 2½“ int.
Specially shaped nozzle
Standard counter-current systems contain one or more nozzles,
which direct the flow straight forward. The Athlete counter-current has a nozzle
divided into two parts. Its upper part sends the water flow straight
forward, while its lower part directs the flow more underneath you.
Required water parameters
- Total chlorine: max. 3.5 mg / l
- pH value: 7.2 - 7.6
- Alkalinity: 60 - 120 mg / l
- Calcium content: 100 - 300 mg/l
- Iron content: max. 0.1 mg / l
- Copper content: max. 0.2 mg / l
- Salt content: max. 0 mg / l
Kit contents
- PVC pipe - 75 mm
- JET SWIM ATHLETE - valve + fitting set
- Bravus 400T - 76 m3 / h; 3 kW, 400 V
- OPTIDRIVE E3 frequency converter - 4.0 kW; 9.5A; 3x 400V / 3x 400V; IP66
- JET SWIM ATHLETE stainless steel front panel 3x piezoelectric button
- PP control with 4 kW frequency converter
Technical specifications
- Material: AISI 316L
- Power: 3 kW
- Material - visible part: Stainless steel
- Voltage: 400 V
- Connection (int.): 2 1/2 "in
- Input power: 3.5 kW
- Weight: 36.1 kg
-
