Compact OVB unit 53 kW / 230 V
Compact OVB unit 53 kW / 230 V
Description
Heat exchanger with electrical protection and circulation pump. Read more
-
Compact Unit OVB 53 kW / 230 V
Heat exchangers are specially designed in terms of their construction for heating pool water, water in hot tubs, or for underfloor heating. This all-stainless-steel heat exchanger is ideally used for heating water with a gas or other boiler, a heat pump, or solar collectors. The exchanger design is optimized to restrict flow so as to ensure maximum heat transfer while minimizing pressure in the heating system.
- Supply of heating water from the heating system - Wilo circulation pump (on the primary circuit 1")
- Outlet of heated water to the pool - connections with brass / plastic union fittings 1.5" / 50 mm
- Return water outlet back to the heating system - connection 3/4" or 1"
- Water supply from the pool - T-piece connection 50 mm glued, connected with a detachable brass / plastic union fitting 1.5" / 50 mm

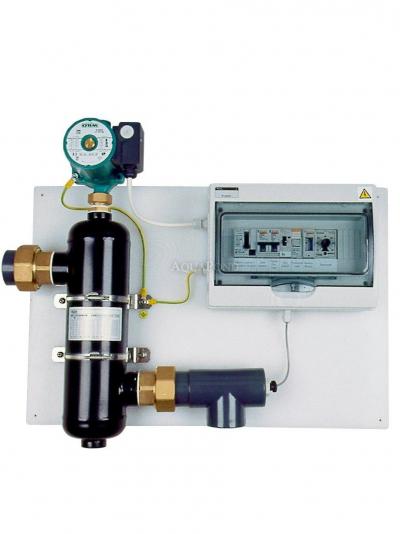

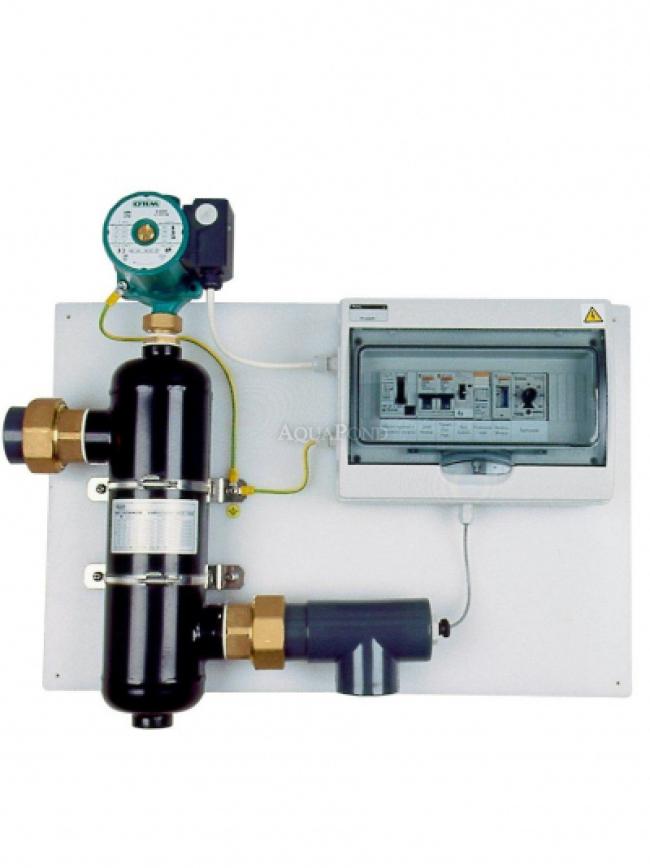

Compact heat exchanger unit - assembled from: Heat exchanger (connections with brass/plastic union fittings 1.5"/50 mm. Wilo circulation pump (on the primary circuit 1"). Thermostat temperature sensor well. Electrical control unit with residual current device, protective and switching elements, which control the water temperature, switching of the filtration system with thermostat. The complete unit is mounted on a board.
Package Contents
- Heat exchanger body
- 2 wall brackets
- Grounding cable
Technical Parameters
- Rated input: 53 kW
- Voltage: 230 V
- Weight: 14.17 kg
Connection of the OVB heat exchanger to the filtration and heating circuit
-
