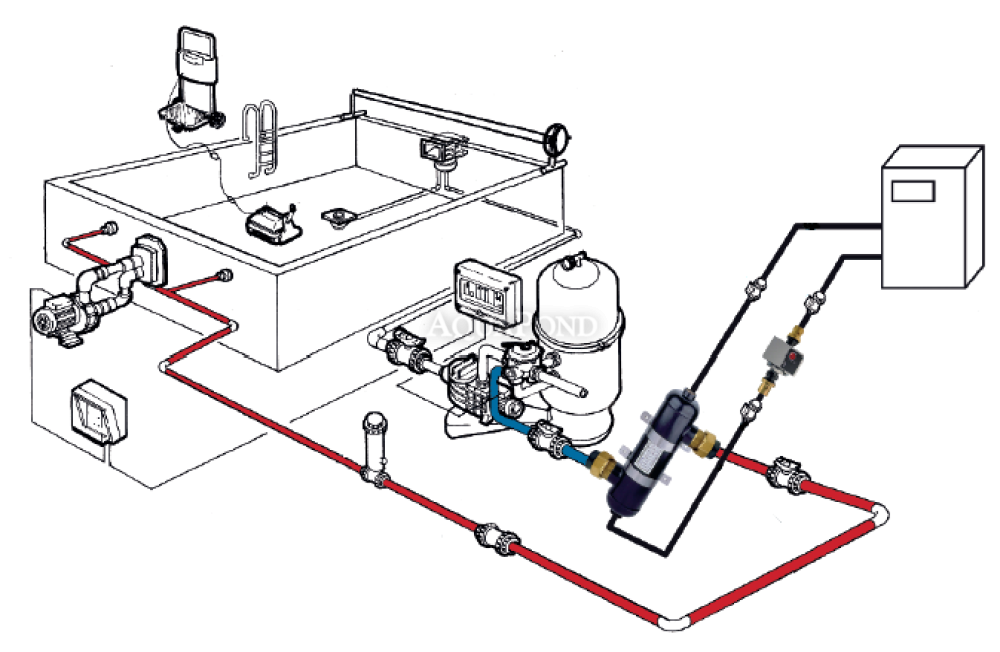

Connecting the OVB exchanger to the filtration and heating circuit

For connection to the secondary circuit with pool water, the internal 1 1/2" thread is used.
A brass union with a PVC end piece must be connected to it, into which a 50 mm pipe is then
glued. Due to the high temperatures of the exchanger, do not use PVC unions – the thread may loosen and water may leak out!

For connection of the primary circuit with heating water, the internal 3/4" thread is used.

To mount the exchanger on the wall, use the included mounting parts.

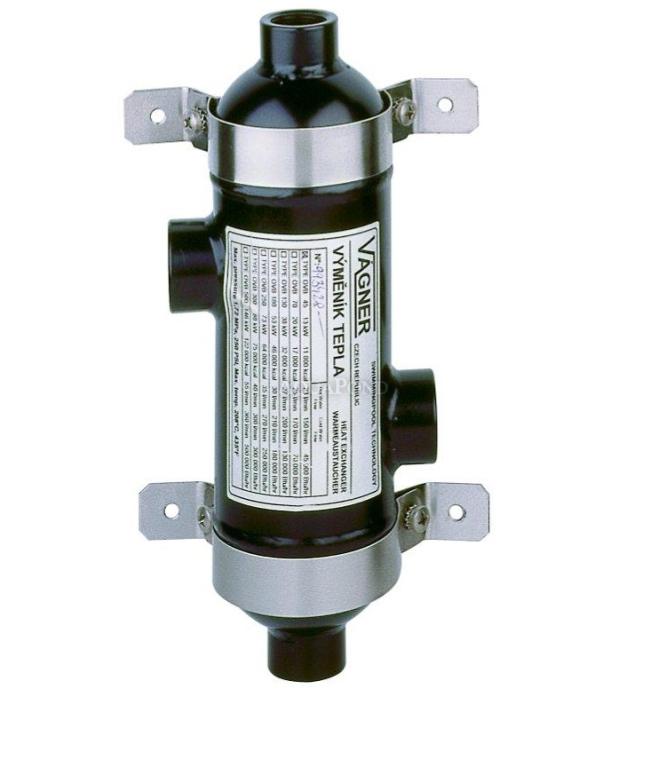

Technical Specifications

• The heating output is stated for a temperature difference of 60°C
  between the incoming heating water and the outgoing heated water
• Material: AISI 316
• Pool circuit connection: 1 1/2 "in
• Heating circuit connection: 3/4 "in
• For pools up to: 15 - 25 m³
• Heat transfer surface area of the exchanger: 0.18 m²
• Weight: 3.0 kg
• Maximum pressure: 1.78 MPa
• Output: 20 kW
• Maximum heating water temperature: 208°C
• Flow rate heating / heated water: 25 / 170 l / min
