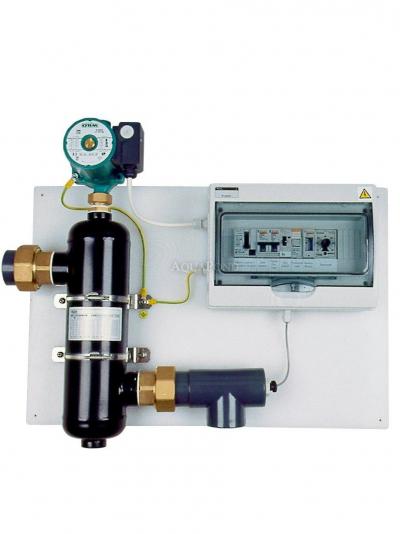

Compact OVB unit 20 kW/230 V
Compact OVB unit 20 kW/230 V
Description
Heat exchanger with electrical protection and circulation pump. Read more
-
Compact Unit OVB 20 kW / 230 V
By design, heat exchangers are specially developed for heating pool water, water in hot tubs, or for underfloor heating. This all-stainless-steel exchanger is ideally used for heating water with a gas or other boiler, a heat pump, or solar collectors. The exchanger design is optimized to limit flow so that heat transfer is maximized while pressure in the heating system is minimized.
- Supply of heating water from the heating system - Wilo circulation pump (on the primary circuit 1")
- Outlet of heated water to the pool - connections with brass / plastic union fittings 1.5" / 50 mm
- Return water back to the heating system - connection 3/4" or 1"
- Water supply from the pool - T-piece connection 50 mm glued, connected with a detachable brass / plastic union fitting 1.5" / 50 mm

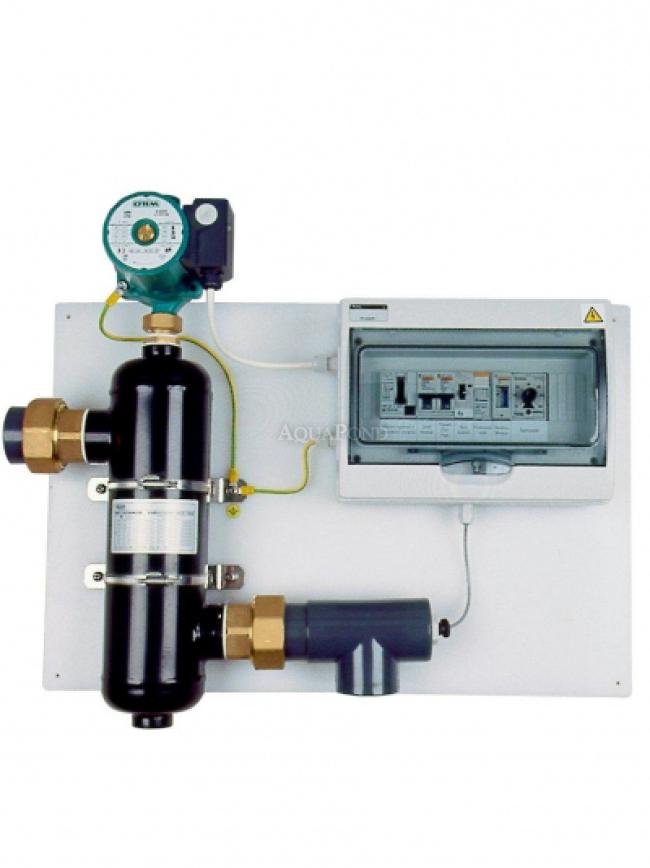

Compact exchanger unit - assembled from: Heat exchanger (connections with brass/plastic union fittings 1.5"/50 mm. Wilo circulation pump (on the primary circuit 1"). Thermowells for the thermostat temperature sensor. Electrical control unit with residual current device, protection and switching components, which control the water temperature, switching of the filtration unit with thermostat. The entire set is mounted on a board.
Package Contents
- Exchanger body
- 2 wall brackets
- Grounding cable
Technical Parameters
- Rated input: 20 kW
- Voltage: 230 V
- Weight: 12.27 kg
Connection of the OVB exchanger to the filtration and heating circuit
-
