Heat exchanger OVB 300, 88 kW (75,000 kcal.)
Heat exchanger OVB 300, 88 kW (75,000 kcal.)
Description
Heat exchangers are specially designed in their construction for heating pool water, water in hot tubs and spas, or for underfloor heating. Read more
-
OVB 300 Heat Exchanger, 88 kW (75,000 kcal)
Heat exchangers are specially designed for heating pool water, water in hot tubs and spas, or for underfloor heating. This all-stainless-steel exchanger is ideally used for heating water with a gas or other boiler, a heat pump, or solar collectors. The exchanger design is engineered to restrict flow so as to ensure maximum heat transfer while minimizing pressure in the heating system.
Use:
- For pools with chlorinated water
- For both outdoor and indoor pools with sand filtration
Package Contents
- Heat exchanger body
- 2 wall brackets
- 2 clamps

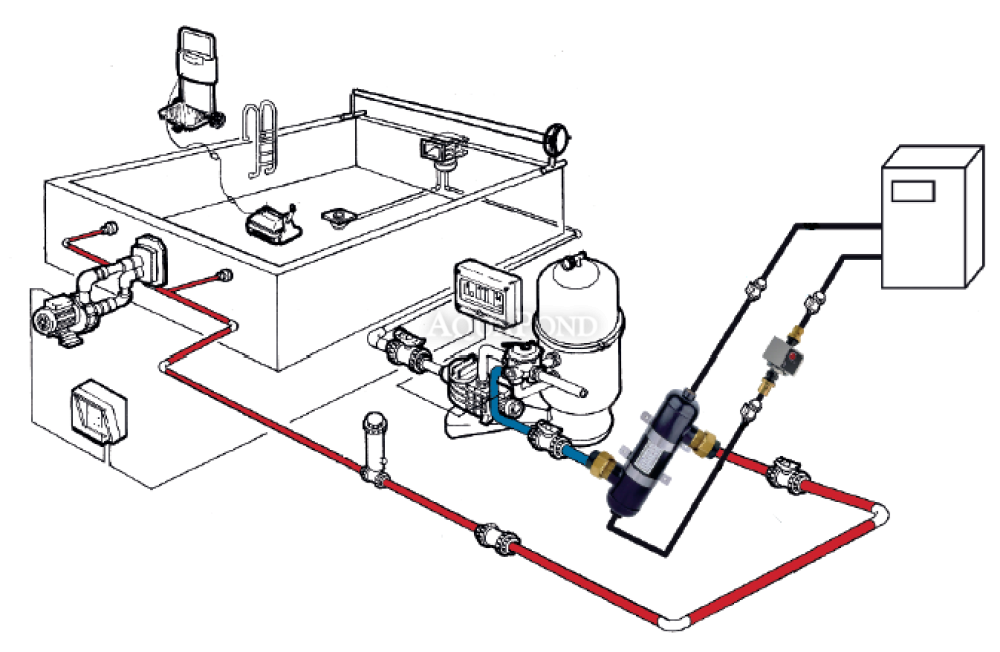

Connecting the OVB Heat Exchanger to the Filtration and Heating Circuit
For connection to the secondary circuit with pool water, use the internal 1 1/2" thread.
You need to connect a brass union with a PVC end piece to it, into which a 50 mm pipe is then glued.
Because of the high temperatures of the exchanger, do not use a PVC union – the thread may loosen and water may leak out!For connection to the primary circuit with heating water, use the internal 1" thread.
To mount the exchanger on the wall, use the included mounting parts.
Technical Specifications
- Heating output is stated for a temperature difference of 60°C
between the incoming heating water and the outgoing heated water - Material: AISI 316
- Pool circuit connection: 1 1/2" in
- Heating circuit connection: 1" in
- For pools up to: 75 - 90 m3
- Heat transfer surface area of the exchanger: 0.73 m2
- Weight: 7.91 kg
- Maximum pressure: 1.78 MPa
- Output: 88 kW
- Maximum heating water temperature: 208°C
- Flow rate heating / heated water: 40 / 300 l / min
-
