Heat exchanger OVB 1000, 293 kW (1,000,000 kcal.)
Heat exchanger OVB 1000, 293 kW (1,000,000 kcal.)
Description
Heat exchangers are specially designed in their construction for heating pool water, water in hot tubs and spas, or for underfloor heating. Read more
-
OVB 1000 Heat Exchanger, 293 kW (1,000,000 kcal)
Heat exchangers are specially designed for heating pool water, water in whirlpool baths and spas, or for underfloor heating. This all-stainless-steel exchanger is ideally used for heating water with a gas or other boiler, heat pump, or solar collectors. The exchanger design is engineered to restrict flow so that heat transfer is maximized while pressure in the heating system is minimized.
Use:
- For pools with chlorinated water
- For outdoor and indoor pools with sand filtration
Package Contents
- Exchanger body
- 2 wall brackets
- 2 clamps

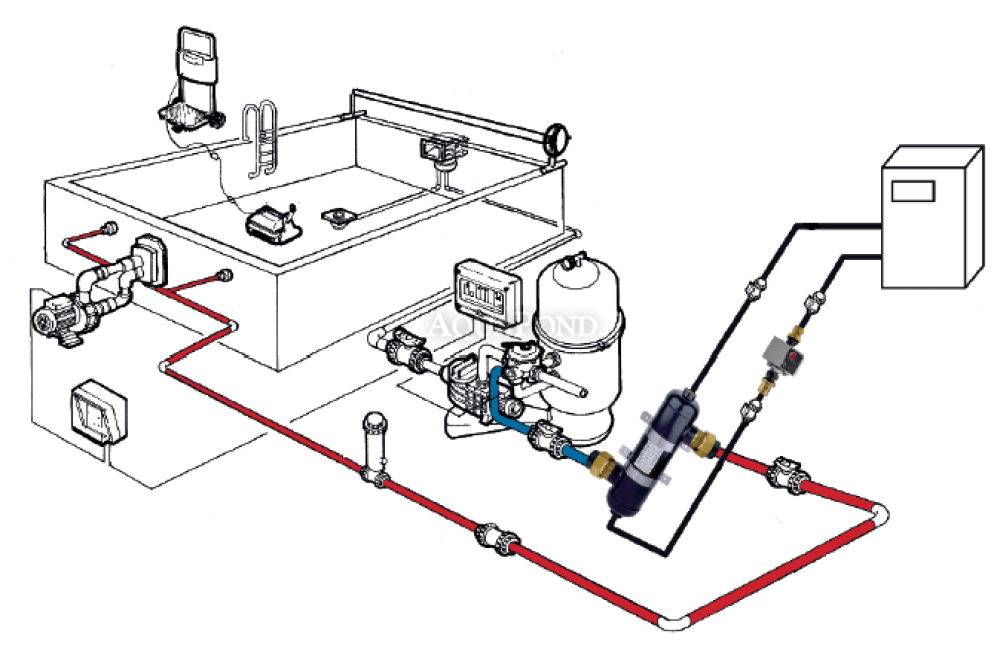

Connecting the OVB Exchanger to the Filtration and Heating Circuit
For connection to the secondary circuit with pool water, use the internal 2" thread.
You need to connect a brass union with a PVC end piece, into which a 50 mm pipe is then glued.
Because of the exchanger’s high temperatures, do not use PVC unions – the thread may loosen and water may leak out!For connection of the primary circuit with heating water, use the internal 1" thread.
To mount the exchanger on the wall, use the included mounting parts.
Technical Specifications
- The heating output is stated for a temperature difference of 60°C
between the incoming heating water and the outgoing heated water - Material: AISI 316
- Pool circuit connection: 2" in
- Heating circuit connection: 1" in
- For pools up to: 140 - 200 m3
- Heat transfer surface area of the exchanger: 1.97 m2
- Weight: 18.59 kg
- Maximum pressure: 1.78 MPa
- Output: 293 kW
- Maximum heating water temperature: 208°C
- Flow rate heating / heated water: 95 / 705 l / min
-
