Heat Exchanger OVB 130, 38.0 kW, (32,000 kcal.)
Heat Exchanger OVB 130, 38.0 kW, (32,000 kcal.)
Description
Heat exchangers are specially designed in their construction for heating pool water, water in hot tubs and spas, or for underfloor heating. Read more
-
OVB 130 Heat Exchanger, 38.0 kW, (32,000 kcal.)
Heat exchangers are specially designed for heating pool water, water in whirlpool tubs and spas, or for underfloor heating. This all-stainless-steel heat exchanger is ideally used for heating water with a gas or other boiler, a heat pump, or solar collectors. The exchanger design is engineered to restrict flow so that heat transfer is maximized while pressure in the heating system is minimized.
Use:
- For pools with chlorinated water
- For outdoor and indoor pools with sand filtration
Package Contents
- Heat exchanger body
- 2 wall brackets
- 2 clamps

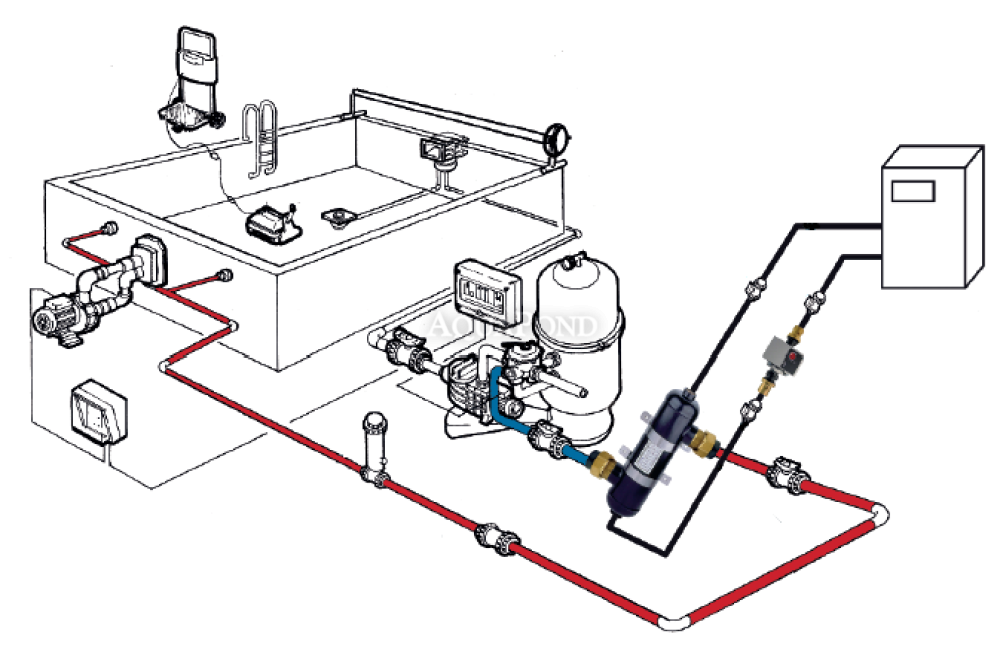

Connecting the OVB Heat Exchanger to the Filtration and Heating Circuit
For connection to the secondary circuit with pool water, use the internal 1 1/2" thread.
You need to connect a brass union with a PVC end piece, into which a 50 mm pipe is then glued.
Because of the high temperatures of the exchanger, do not use a PVC union – the thread may loosen and water may leak out!For connection to the primary circuit with heating water, use the internal 3/4" thread.
To mount the exchanger on the wall, use the included mounting parts.
Technical Parameters
- The heating output is stated for a temperature difference of 60°C
between the incoming heating water and the outgoing heated water - Material: AISI 316
- Pool circuit connection: 1 1/2" in
- Heating circuit connection: 3/4" in
- For pools up to: 25 - 40 m3
- Heat transfer surface area of the exchanger: 0.23 m2
- Weight: 3.2 kg
- Maximum pressure: 1.78 MPa
- Output: 38 kW
- Maximum heating water temperature: 208°C
- Flow rate heating / heated water: 27 / 200 l / min
-
