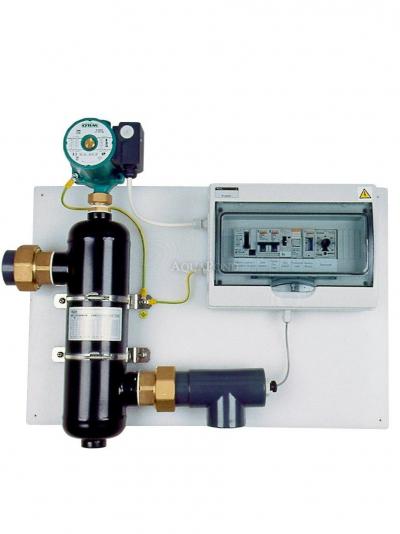

Compact OVB unit 38 kW/230 V
Compact OVB unit 38 kW/230 V
Description
Heat exchanger with electrical protection and circulation pump. Read more
-
Compact OVB Unit 38 kW / 230 V
Heat exchangers are specially designed in terms of construction for heating pool water, water in hot tubs, or for underfloor heating. This all-stainless-steel exchanger is ideally used for heating water with a gas or other boiler, a heat pump, or solar collectors. The exchanger design is engineered to limit flow so as to ensure maximum heat transfer while minimizing pressure in the heating system.
- Supply of heating water from the heating system - Wilo circulation pump (on the primary circuit 1")
- Outlet of heated water to the pool - connections with brass/plastic union fittings 1.5" / 50 mm
- Return of water back to the heating system - connection 3/4" or 1"
- Water supply from the pool - T-piece connection 50 mm glued, connected with a detachable brass/plastic union fitting 1.5" / 50 mm

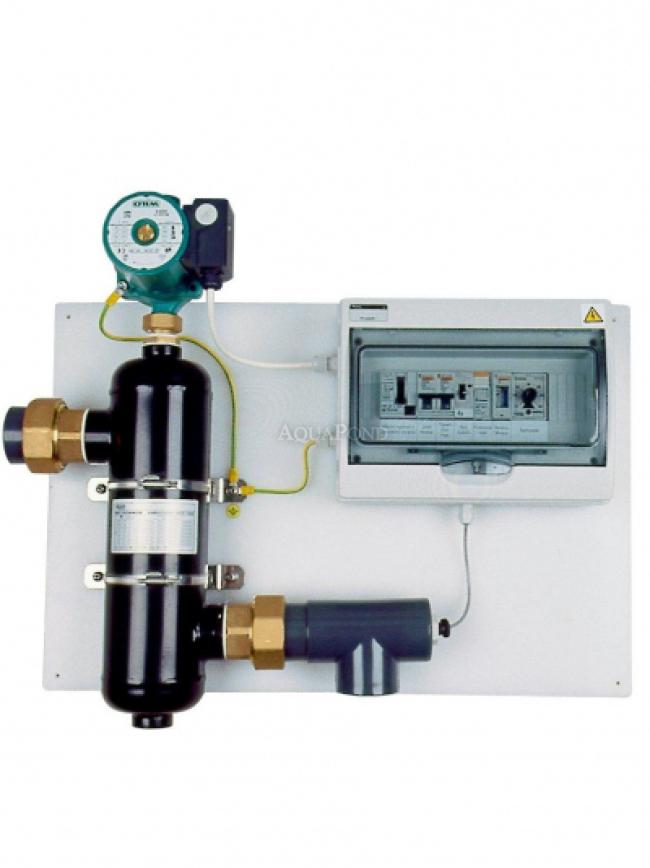

Compact exchanger unit - assembled from: Heat exchanger (connections with brass/plastic union fittings 1.5"/50 mm. Wilo circulation pump (on the primary circuit 1"). Thermostat sensor well. Electrical automation with residual current device, protective and switching elements, which control the water temperature, switching of the filtration system with thermostat. The entire assembly is mounted on a board.
Package Contents
- Exchanger body
- 2 wall brackets
- Grounding cable
Technical Parameters
- Rated input: 38 kW
- Voltage: 230 V
- Weight: 12.855 kg
Connection of the OVB exchanger to the filtration and heating circuit
-
