Bottom drain Ø 210 mm with ABS plastic grate, light grey color (RAL 7004), for liner and prefabricated pools


Bottom drain Ø 210 mm with ABS plastic grate, light grey color (RAL 7004), for liner and prefabricated pools

Description

Bottom drain with ABS plastic grate, D 210 mm, for liner and prefabricated pools. Read more
Product code: 00271CL129

  • Bottom Drain Ø 210 mm with ABS Plastic Grating, Light Grey Color (RAL7004), for Liner and Prefabricated Pools

    Bottom drain for liner and prefabricated pools. Made of white or colored UV-resistant ABS plastic. Supplied including gaskets. The grating and flange are secured with screws with brass threads, which extends service life and increases the strength of the sealing parts. It is most commonly used for liner pools, but it can also be used for prefabricated pools.

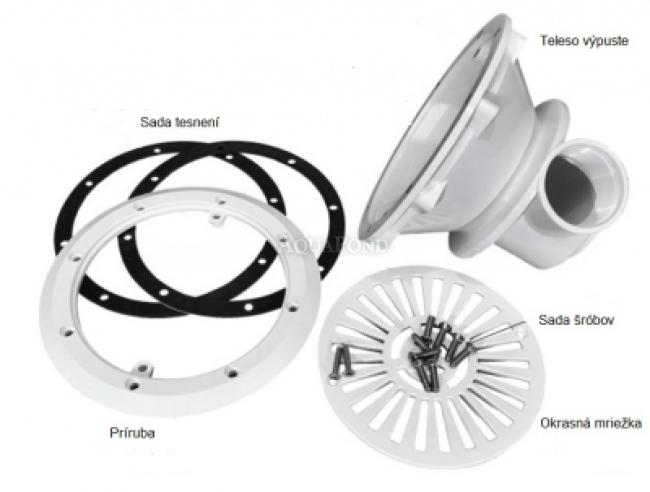

    Package Contents

    • Drain body
    • Top ABS grating
    • Set of gaskets for liner
    • Sealing flange
    • Set of screws

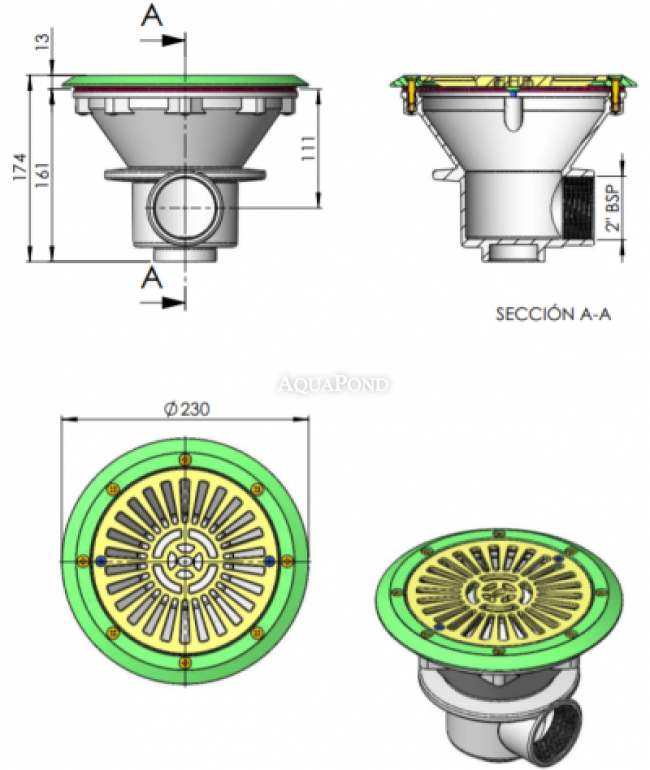

    Technical Specifications

    • Connection: side - 2" internal thread
    • Dimensions: 210 x 167 mm
    • Maximum flow rate: 13 m3 / h
    • Suction speed at the grating: 0.5 m / s
    • Maximum suction speed in the piping: 1.5 m / s

    Spare Parts List



    The complete list of spare parts can be found here:



    Spare parts for bottom drain Ø 210 mm with ABS plastic grating - light grey color (RAL7004) - product code: 00271CL129
