VA Floor Drain, for Liner Pools

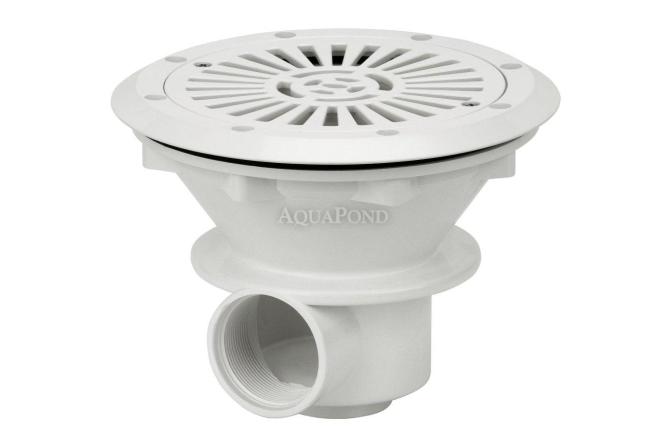

The pool drain is designed for liner pools. It is made of white UV-resistant ABS plastic with a grille attached to the flange. The grille and flange are secured with screws with brass threads, which extends the service life and increases the strength of the sealing parts. It is most often used for concrete pools with an internal liner, but it can also be used for prefabricated pools, where holes need to be drilled for the screws.

Package Contents

• Drain body
• Top ABS grille
• Set of liner gaskets
• Sealing flange
• Set of screws

 Technical Specifications

• Connection: side - 2" internal thread

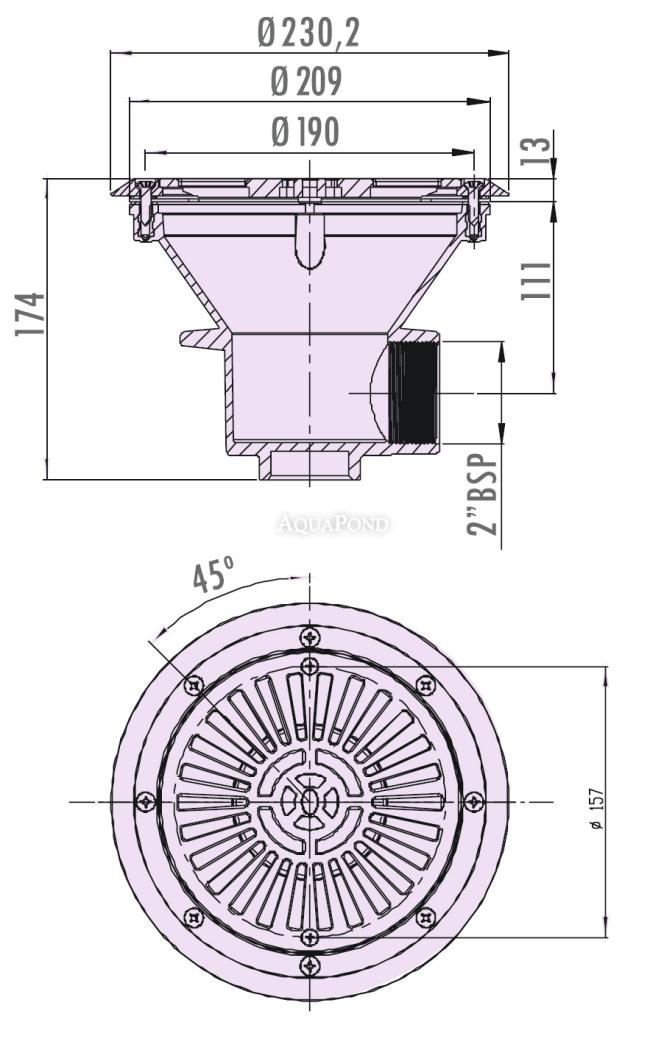

• Dimensions: Ø 230 mm, height 174 mm
• Maximum flow rate: 13 m³ / h
• Suction speed at the grille: 0.5 m / s
• Maximum suction speed in the piping: 1.5 m / s

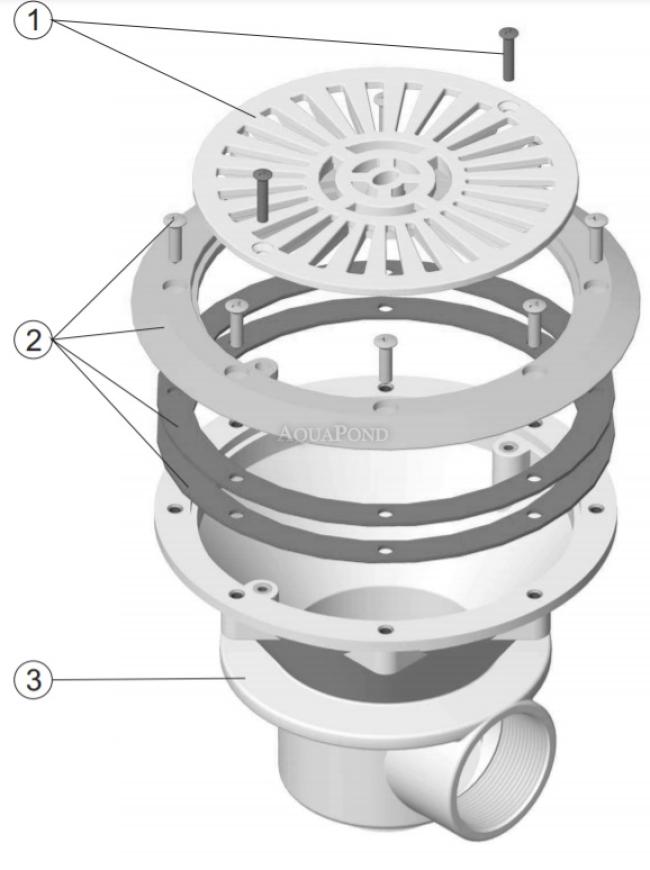

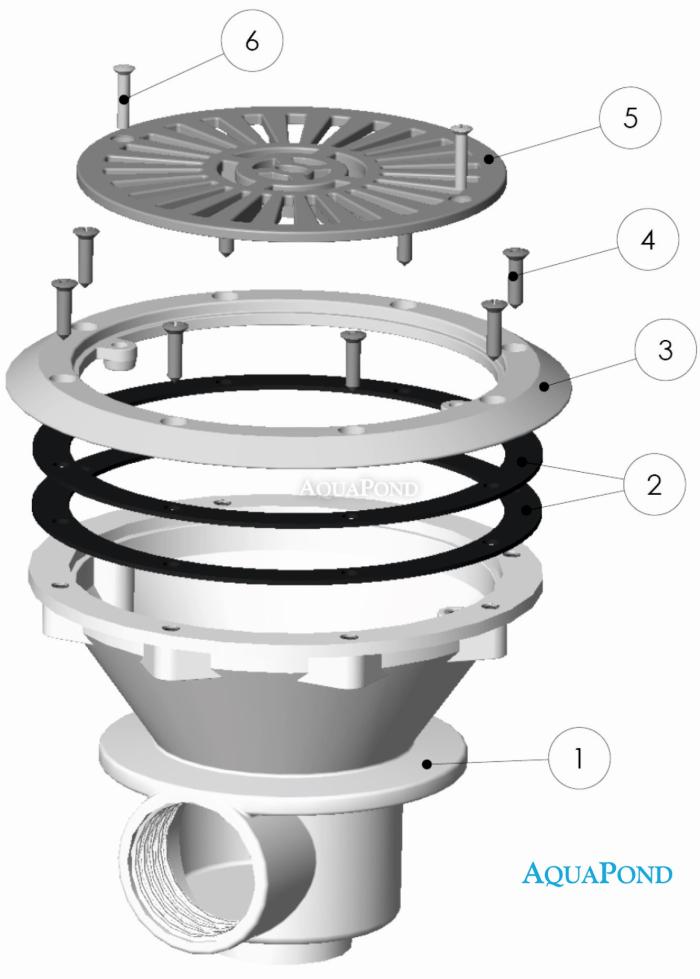

Spare Parts List
