Floor drain VA Stainless Steel, for liner pools

Floor drain VA Stainless Steel, for liner pools

Floor drain VA Stainless Steel, for liner pools

Description

Floor drain VA - stainless steel design with brass M6 threads, for liner pools. Read more
Product code: 4800276

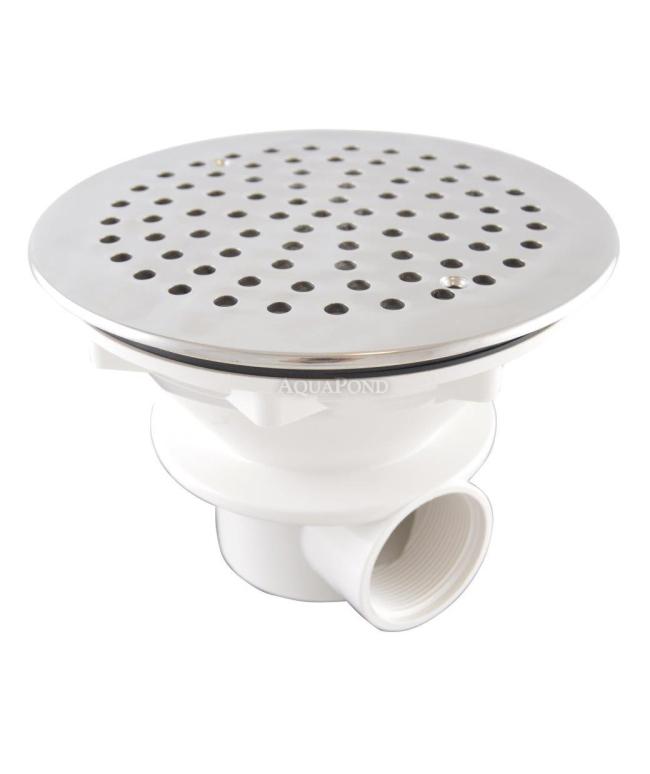

  • Floor Drain VA Stainless Steel, for Liner Pools

    The pool drain is designed for liner pools. It is made of white UV-resistant ABS plastic with a grate attached to the flange. The grate and flange are secured with screws with brass threads, which extends the service life and increases the strength of the sealing parts. It is most commonly used for concrete pools with an internal liner, but it can also be used for prefabricated pools, where holes need to be drilled for the screws.

    Package Contents

    • Drain body
    • Stainless steel top grate
    • Seal set
    • Sealing flange
    • Screw set

    Technical Parameters

    • Body material: ABS
    • Connection (int.): 2" "in
    • For liner pools: Yes
    • Material - visible part: Stainless steel
    • Maximum flow rate: 13 m3 / h
    • Suction speed at the grate: 0.5 m / s
    • Maximum suction speed in the piping: 1.5 m / s
