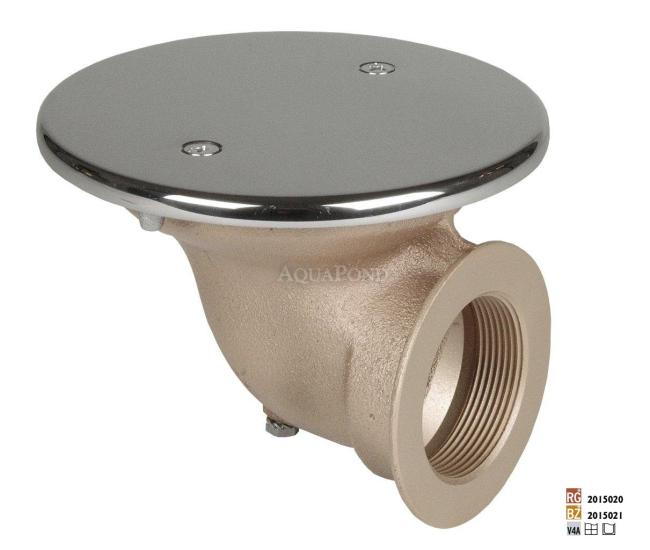

Hugo Lahme floor drain, 2" connection in 90°, anti-vortex cover Ø 168 mm, for liner and tiled pools
Hugo Lahme floor drain, 2" connection in 90°, anti-vortex cover Ø 168 mm, for liner and tiled pools
Description
The floor drain ensures water suction from the bottom of the pool into the filtration circuit. Read more-
Hugo Lahme Floor Drain, 2" connection at 90°, anti-vortex cover Ø 168 mm
Floor drains are primarily used for draining the pool and are therefore installed at the lowest point of the pool floor.
At the same time, the floor drain is also used for hydraulic purposes to improve the circulation of pool water. This applies both to the introduction of chemicals for water treatment and to a more even distribution of heat.
The floor drain is made of durable acid-resistant AISI 316L stainless steel and corrosion-resistant red bronze, which ensures a long service life even in demanding conditions
The special design ensures vortex-free water flow, allowing faster and more efficient drainage. The product stands out with an exclusive luxury look and flawless quality.
Note: For installing the floor drain in a pool with PVC lining the 230050 flange set is required (sold separately)
For safety reasons, installation of two floor drains at a distance of 2 meters is recommended when they are used as the suction part of the hydraulic system.
Manufacturer's warranty - 2 years.
Technical Specifications
- Water flow rate up to 20.0 m³/h.
- The drain opening is located at the bottom of the cover and turned at a 90º angle.
- Cover diameter - Ø168 mm.
- Drain opening diameter – Ø2”
- Connection (int.): 2 "in
- Weight: 3.6 kg
Drain Dimensions
Advantages
- Made of durable stainless steel and red bronze;
- Flawless product quality;
- UV resistant;
- Acid resistant;
- Resistant to aggressive water chemicals;
- Especially long-lasting and durable;
- Attractive exclusive design;
- Fast, vortex-free pool water drainage;
- Easy installation and maintenance.
The product is available only on order. Once confirmed, it can no longer be changed or canceled.
-
