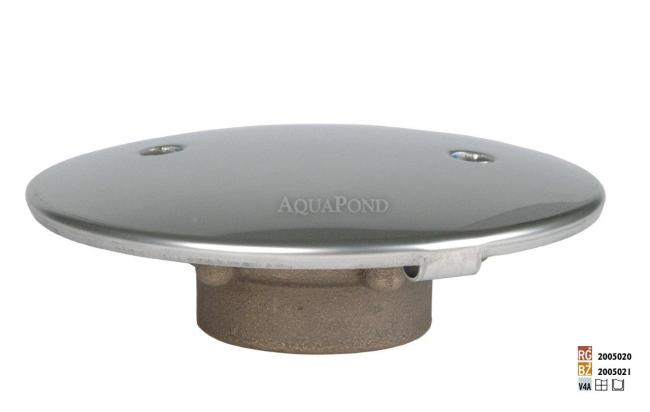

Hugo Lahme floor drain, 2" inlet connection, anti-vortex cover Ø 168 mm, for liner and tiled pools
Hugo Lahme floor drain, 2" inlet connection, anti-vortex cover Ø 168 mm, for liner and tiled pools
Description
The floor drain ensures water is drawn from the bottom of the pool into the filtration circuit, helping to keep the water effectively clean. Read more-
Hugo Lahme bottom drain, 2“ inlet connection, anti-vortex cover Ø 168 mm, for liner and tiled pools
Bottom drains are primarily used to drain the pool and are therefore installed at the lowest point of the pool floor.
At the same time, the bottom drain is also used for hydraulic purposes to improve the circulation of pool water. This applies both to introducing water treatment chemicals and to achieving a more even distribution of heat.
It is made of durable acid-resistant AISI 316L stainless steel and corrosion-resistant red bronze.
- Water flow rate: up to 20.0 m³/h
- Outlet position: vertical, at the bottom of the cover
- Housing diameter: Ø168 mm
- Outlet diameter: Ø2”
The special design ensures a vortex-free water flow, allowing faster and more efficient drainage. The product stands out with its exclusive luxury look and flawless quality.
Note: For installation in a pool with PVC lining the 230050 flange set is required (sold separately).
For safety reasons, installation of two bottom drains spaced 2 meters apart is recommended when they are used as the suction part of the hydraulic system.
Manufacturer's warranty - 2 years.

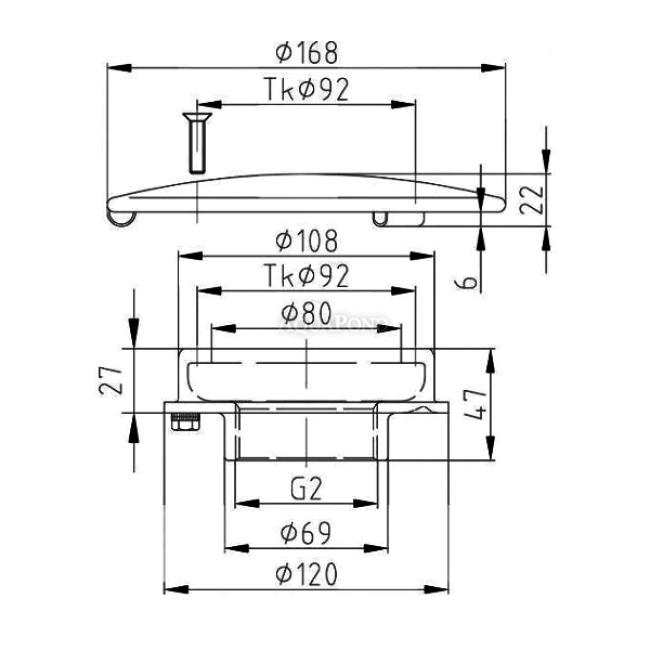

Dimensions
Advantages
- Made of durable stainless steel and bronze;
- Flawless product quality;
- UV resistant;
- Acid resistant;
- Resistant to aggressive water chemicals;
- Exceptionally long-lasting and durable;
- Attractive exclusive design;
- Fast, vortex-free pool water drainage;
- Easy installation and maintenance.
This product is available only to order. Once confirmed, it can no longer be changed or cancelled.
-
