Floor drain VA, light gray (RAL7004), brass M6 inserts, for liner pools

Floor drain VA, light gray (RAL7004), brass M6 inserts, for liner pools

Floor drain VA, light gray (RAL7004), brass M6 inserts, for liner pools

Description

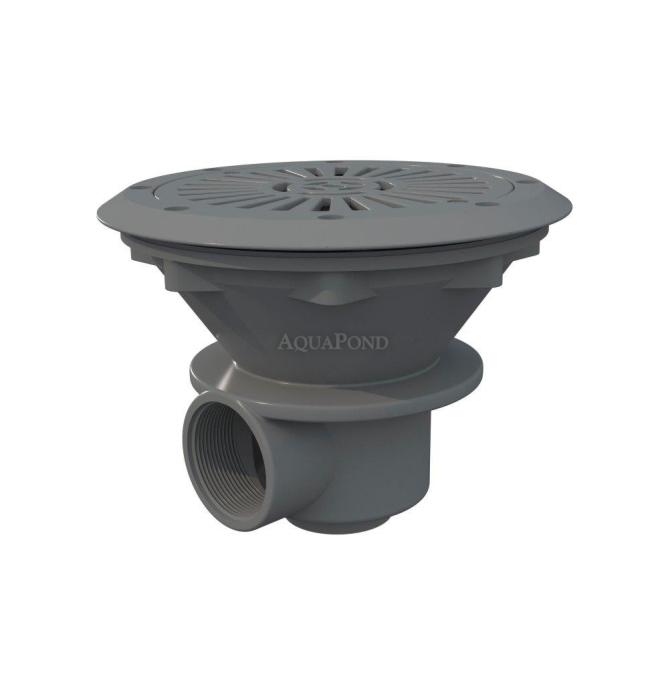

Bottom drain VA with ABS grate, D210 mm, for liner pools Read more
Product code: 48002714

  • Floor Drain VA, Light Grey (RAL7004), Brass M6 Inserts, for Liner Pools

    The pool drain is designed for liner pools. It is made of UV-resistant ABS plastic with a grate attached to the flange. The grate and flange are secured with screws with brass threads, which extends service life and increases the strength of the sealing parts. It is most commonly used for concrete pools with an internal liner, or it can also be used for prefabricated pools, where holes need to be drilled for the screws.

    Package Contents

    • Drain body
    • Top ABS grate
    • Set of liner gaskets
    • Sealing flange
    • Screw set

     Technical Specifications

    • Color: light grey (RAL7004)
    • Connection: side - 2" female thread

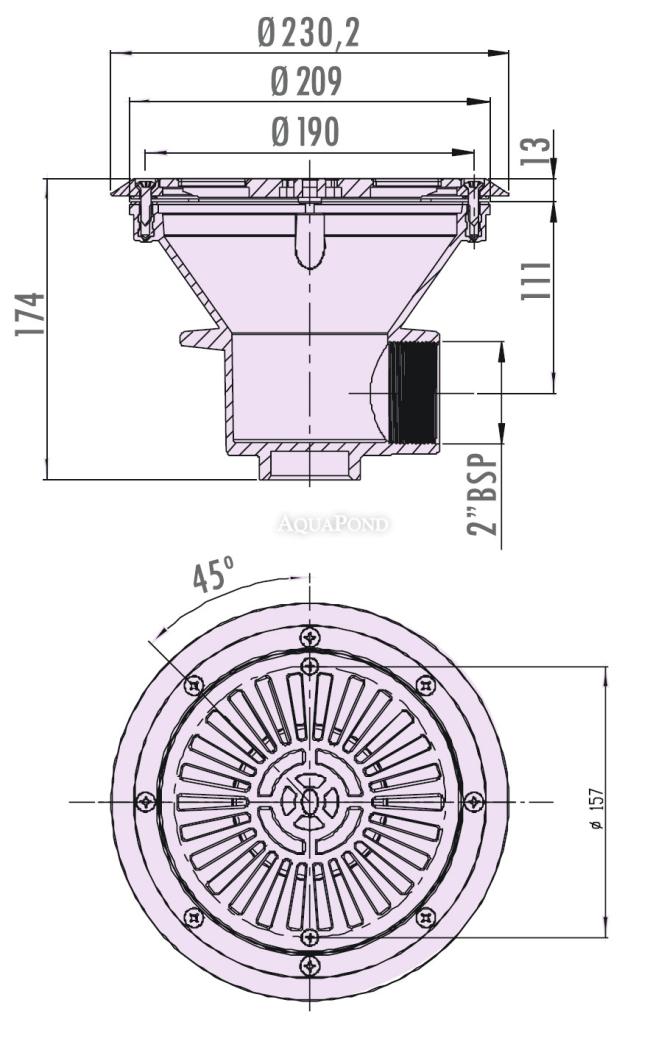

    • Dimensions: Ø 230 mm, height 174 mm
    • Drain outlets: 90° and 180°
    • Maximum flow rate: 13 m3 / h
    • Suction speed at the grate: 0.5 m / s
    • Maximum suction speed in the pipe: 1.5 m / s
