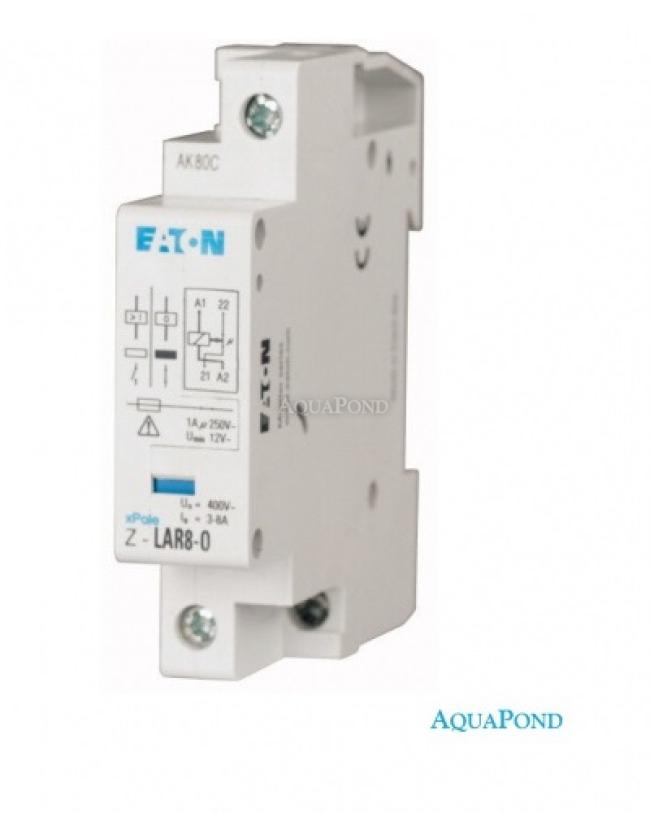

Relay - priority switching and blocking of electrical appliances 3-8 A


Relay - priority switching and blocking of electrical appliances 3-8 A

Description

Component for electro-automatic control. Read more
Product code: 520/ZLAR8-

  • Relay - priority switching and blocking of electrical appliances 3-8 A

    Component for electro-automatic control. Priority relay, operating current range 3 - 8 A, integrated auxiliary contact: 1 normally closed contact.

    Technical parameters

    • Rated voltage: 250 V
    • Rated current range: 3 - 8 A
    • Current response range: 3 - 8 A
    • Max. continuous current: 10 A
    • Number of normally closed contacts: 1
    • Rated current (control contacts): 1 A
    • Max. switching voltage (control contacts): 250 V
    • Max. switching power (control contacts): 7.7 VA
    • Electrical life (control contacts): 100000 switching cycles
    • Max. switching frequency: 3600 c / h
    • Type of voltage: AC
    • Mounting method: On DIN rail
    • Width expressed in modular units: 1
    • Mounting depth: 60 mm
    • Degree of protection: IP20
