Automatic control for filtration/electric heating/light-F1E12S

Automatic control for filtration/electric heating/light-F1E12S

Automatic control for filtration/electric heating/light-F1E12S

Description

For pools with 230V filtration, lighting, and electric heating up to 12 kW. Read more
Product code: 52010201

  • Automatic Control for Filtration / Electric Heating / Light - F1E12S

    Electrical automatic control for pool technology is divided into four basic versions:

    • Automation for filtration
    • Automation for filtration and electric heating up to 15 kW
    • Automation for filtration and electric heating over 15 kW
    • Automation for filtration and heat exchanger heating

    Each of these control systems can be supplemented with a range of additional electrical components. The simplest option is connection and protection, for example for lights, counter-current systems, dehumidifiers, etc., but it is also possible, by agreement, to supplement each unit with any other electrical components, such as interlocks with existing electrical equipment in the building near the pool (heating, etc.). Another of the many ways to increase the comfort of relaxation by the pool is to switch water attractions directly from the pool using a pneumatic-electric converter, or a remote control system (suitable, for example, when the technology is located in a hard-to-access technical room).

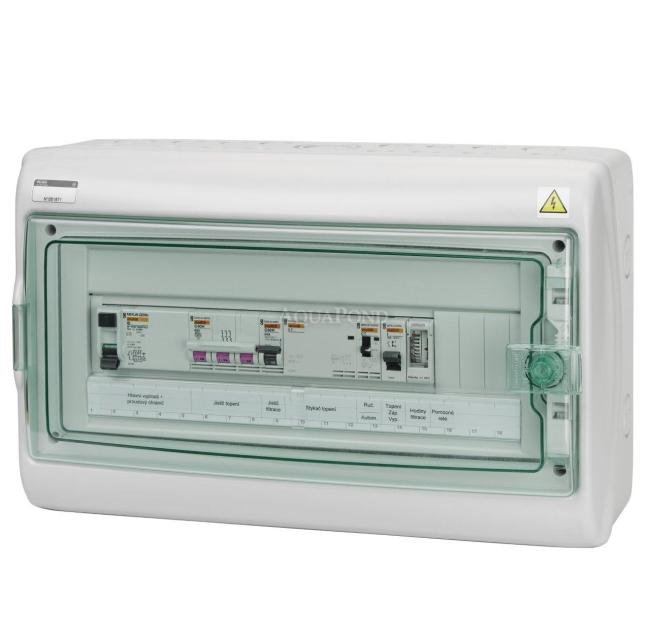

    The unit includes a 3-phase/30 mA residual current device, selector switch – automatic or manual filtration mode, timer switch, filtration protection, pool light protection, electric heating switch, electric heating protection.

    Technical Parameters

    • Filtration: 230 V
    • Light: 230 V
    • Electric heating: 12 kW - 400 V
    • Power supply: 400 V AC
    • Protection rating: IP65
    • Expandable: YES
    • Weight: 4.16 kg

    Electrical Automatic Control
