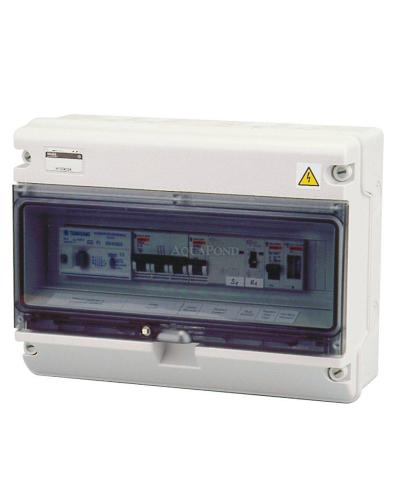

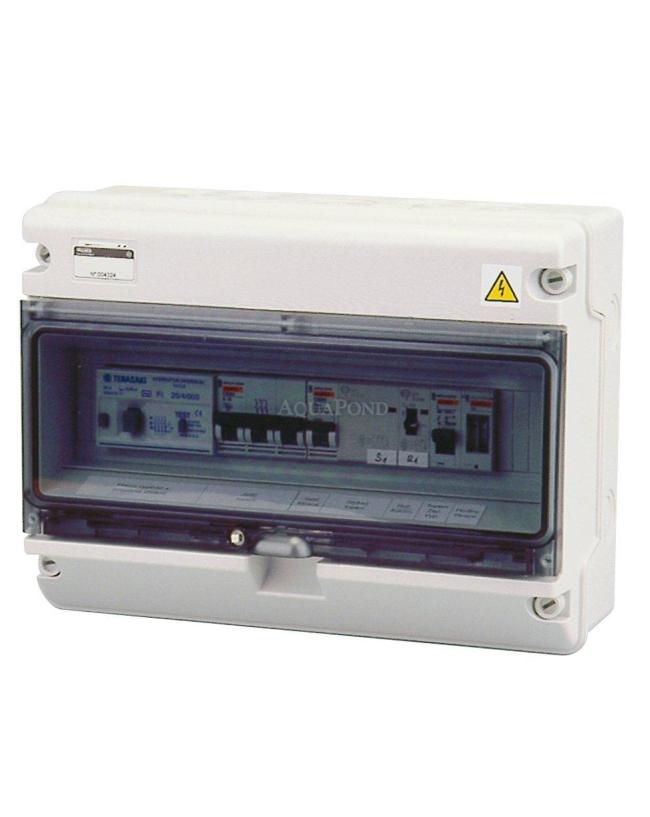

Automatic control for filtration/electric heating - F1E12
Automatic control for filtration/electric heating - F1E12
Description
For pools with 230V filtration and electric heating up to 12 kW. Read more
-
Automatic Control for Filtration / Electric Heating - F1E12
Electrical automatic control for pool technology is divided into four basic versions:
- Automation for filtration
- Automation for filtration and electric heating up to 15 kW
- Automation for filtration and electric heating over 15 kW
- Automation for filtration and heat exchanger heating
Each of these control systems can be supplemented with a range of additional electrical components. The simplest option is connection and protection, for example for lights, counter-current systems, dehumidifiers, etc., but it is also possible by agreement to equip each unit with any other electrical components, such as interlocks with existing electrical equipment in the building near the pool (heating, etc.). Another of the many ways to increase comfort while relaxing by the pool is to switch water attractions directly from the pool using a pneumatic-electric converter, or a remote control system (suitable, for example, when the technology is located in a hard-to-access technical room).
The unit includes a 30 mA residual current device, switch - automatic / manual filtration mode, timer switch, 3-phase filtration protection, pool light protection, counter-current supply protection, digital electronic thermostat with indicator light including temperature sensor, protection and switching of the circulation pump or electric valve or gas boiler. The desired pool water temperature can be set directly on the control panel.
Technical Parameters
- Filtration: 230 V
- Electric heating: 12 kW - 400 V
- Power supply: 400 V AC
- Protection rating: IP65
- Expandable: YES
- Weight: 4.05 kg
Electrical Automatic Control
-
