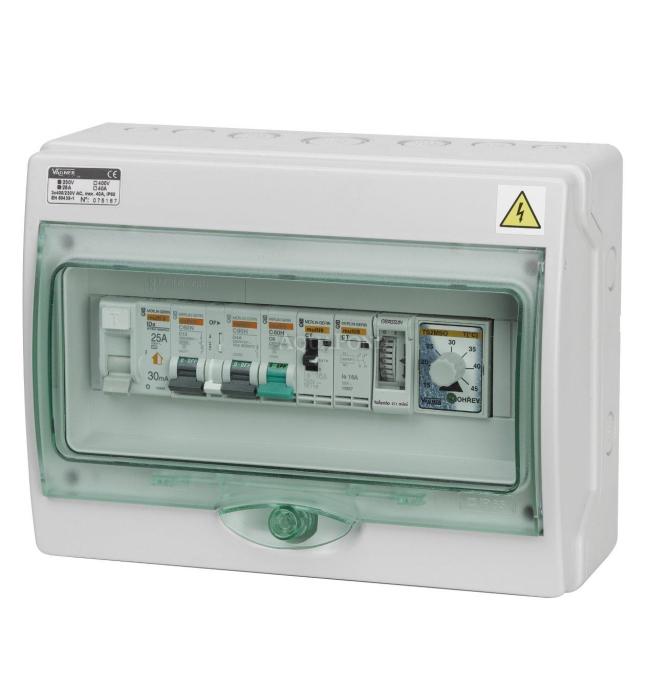

Automatic control for filtration/light/countercurrent - F1SP3

Automatic control for filtration/light/countercurrent - F1SP3

Automatic control for filtration/light/countercurrent - F1SP3

Description

For pools with 230V filtration, lighting, and 400V counter-current systems. Read more
Product code: 52010002

    Automatic Control for Filtration / Light / Countercurrent - F1SP3

    Electrical automatic control for pool technology is divided into four basic versions:

    • Automation for filtration
    • Automation for filtration and electric heating up to 15 kW
    • Automation for filtration and electric heating over 15 kW
    • Automation for filtration and heat exchanger heating

    Each of these control units can be supplemented with a range of additional electrical components. The simplest option is connection and protection of, for example, lights, countercurrent systems, dehumidifiers, etc., but it is also possible by agreement to equip each unit with any other electrical components, such as interlocks with existing electrical equipment in the building by the pool (heating, etc.). Another of the many ways to increase the comfort of relaxation by the pool is switching water attractions directly from the pool using a pneumatic-electric converter, or a remote control system (suitable, for example, when the technology is located in a hard-to-reach technical room).

    The unit includes a 30 mA residual current device, switch - automatic / manual filtration mode, timer, 3-phase filtration protection, pool light protection, countercurrent supply protection, digital electronic thermostat with indicator light including temperature sensor, protection and switching of the circulation pump or electric valve or gas boiler. Set the desired pool water temperature directly in the control panel.

    Technical Parameters

    • Filtration: 230 V
    • Light: 230 V
    • Countercurrent: 400 V
    • Power supply: 400 V AC
    • Protection rating: IP65
    • Expandable: YES
    • Weight: 2,075 kg

    Electrical Automatic Control
