Automatic control for filtration/electric heating/light/counter-current-F1E12SP3

Automatic control for filtration/electric heating/light/counter-current-F1E12SP3

Automatic control for filtration/electric heating/light/counter-current-F1E12SP3

Description

For pools with 230V filtration, lighting, 400V counter-current system, and electric heating up to 12 kW. Read more
Product code: 52010202

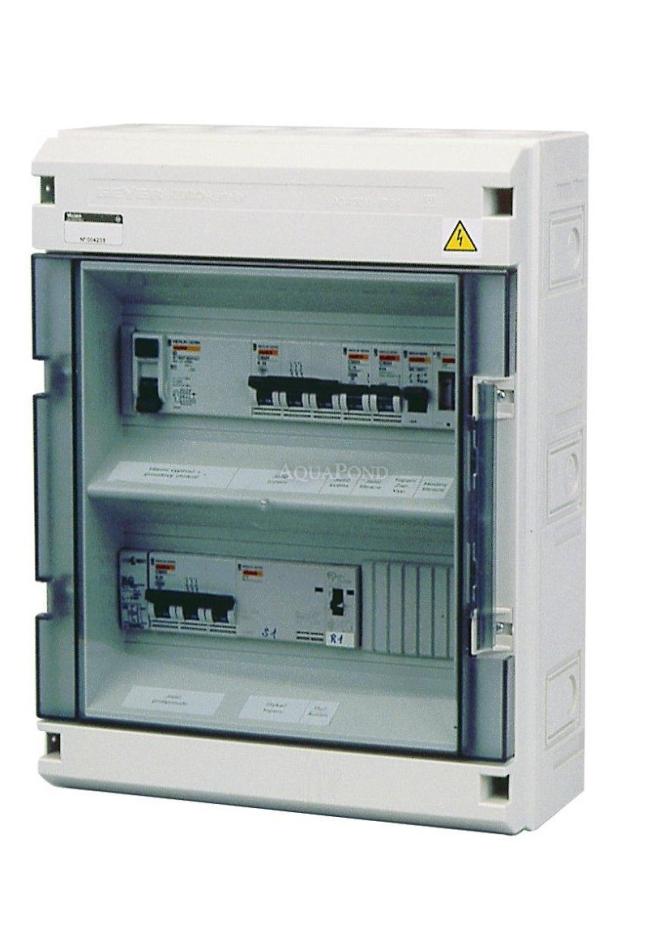

    Automatic control for filtration / electric heating / light / counter-current - F1E12SP3

    Electric automatic control for pool technology is divided into four basic versions:

    • Automation for filtration
    • Automation for filtration and electric heating up to 15 kW
    • Automation for filtration and electric heating over 15 kW
    • Automation for filtration and heat exchanger heating

    Each of these control systems can be supplemented with a range of additional electrical components. The simplest option is connection and protection for, for example, lights, counter-current systems, dehumidifiers, etc., but by agreement it is also possible to equip each unit with any other electrical components, such as interlocks with existing electrical equipment in the building near the pool (heating, etc.). Another of the many ways to increase the comfort of relaxation by the pool is to switch water attractions directly from the pool using a pneumatic-electric converter, or a remote control system (suitable, for example, when the technology is located in a hard-to-reach technical room).

    The unit includes a 30 mA residual current device, switch - automatic / manual filtration mode, timer, 3-phase filtration protection, pool light protection, counter-current supply protection, digital electronic thermostat with indicator light including temperature sensor, protection and switching of the circulation pump or electric valve or gas boiler. Set the desired pool water temperature directly in the control panel.

    Technical parameters

    • Filtration: 230 V
    • Light: 230 V
    • Electric heating: 12 kW - 400 V
    • Counter-current: 400 V
    • Power supply: 400 V AC
    • Protection rating: IP65
    • Expandable: YES
    • Weight: 5.365 kg

    Electro-automatic control
