Filtration Tank Lisboa 800 mm, Flow Rate 25 m3/h, Without Side Valve
Filtration Tank Lisboa 800 mm, Flow Rate 25 m3/h, Without Side Valve
Description
Fiberglass / layered filter - 25 m3 / h, without side valve. Read more
-
Lisboa Filter Tank 800 mm, flow rate 25 m3/h, without side valve
Made of polyester resin reinforced with fiberglass, with a glossy finish.
- High-strength polyester base
- Large-diameter plastic lid
- The filter is equipped with 1" collectors and a diffuser
- The filter is equipped with a pressure gauge, drain valve, and air release
- Equipped with a 6-way valve - not included in the package
- Maximum operating pressure 2.5 kg / cm²
- Test pressure 3 kg / cm²
Technical Parameters
- Tank material: polyester resin reinforced with fiberglass
- Filling quantity: 325 kg
- Tank diameter: 800 mm
- Connection: 2"
- Max. working pressure: 2.5 kg / cm2
- Flow rate: 25 m3 / h
- Valve type: 6-way side
- Filtration speed: 50 m3 / h / m2
- Base: Yes
- Width: 815 mm
- Height: 960 mm
- Warranty period: 2 years
- Weight: 39 kg
Filtration
Filtration is part of the overall treatment of pool water. This means that the filtration unit alone, without proper chemical water treatment, cannot ensure the required water parameters. Likewise, chemical water treatment alone is not sufficient without filtration.
Filtration Principle
Water is drawn by the pump from the bottom of the pool through the pool drain (1) and from the surface through skimmers /collectors/ (2), via the valve (3) into the filter (5), where it is cleaned. It is then pushed back into the pool through the recirculation nozzles (6). The nozzles are located on the opposite side from where the bottom drain and skimmers are installed. The filter itself contains a sand filling, which traps insoluble impurities contained in the water. After a certain period of filtration, the sand becomes clogged and therefore difficult for water to pass through. It is therefore necessary to backwash the sand. Backwashing or rinsing is carried out by directing water into the filter in the opposite direction to the filtration process.

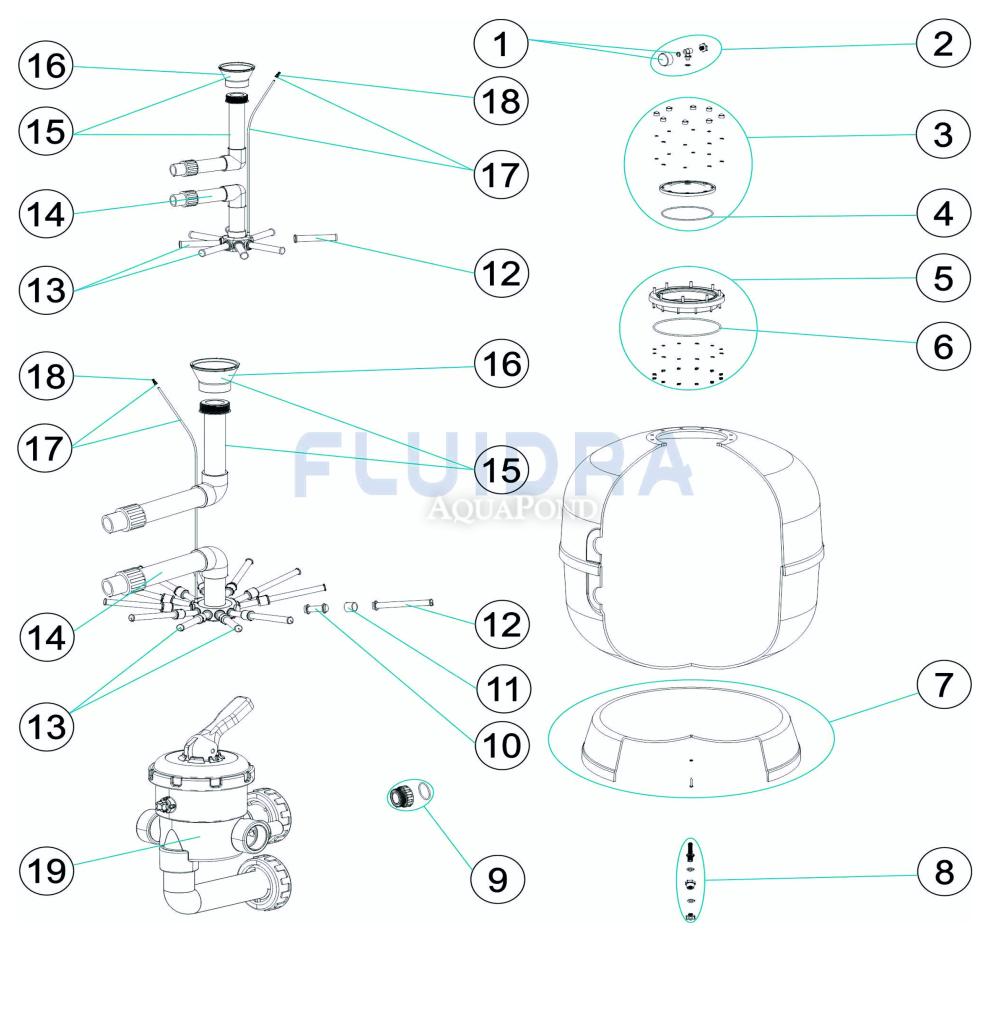

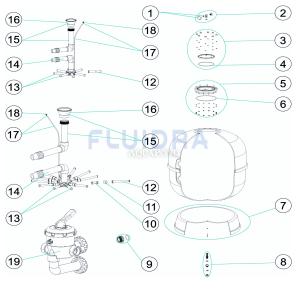

List of Spare Parts
The complete list of spare parts can be found here:
Spare parts for multilayer internal fiberglass filter Lisboa 800 mm, 25 m3/h
-
